|Place of Origin:||China|
|Minimum Order Quantity:||50000 pcs|
|Packaging Details:||box, carton and pallet; or other special packing as per your requirement.|
|Delivery Time:||within 30 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||300 million pcs per year|
|Material:||99.7% Purity Aluminum||Diameter:||13.5mm-40mm|
|Cap Type:||Screw Cap,flip Top Cap,customized Cap,etc||Thread:||M7 M9 M11 M15|
|Origin:||Hubei, China||Name:||Adhesive Aluminum Tubes|
collapsible aluminium tubes,
metal toothpaste tubes

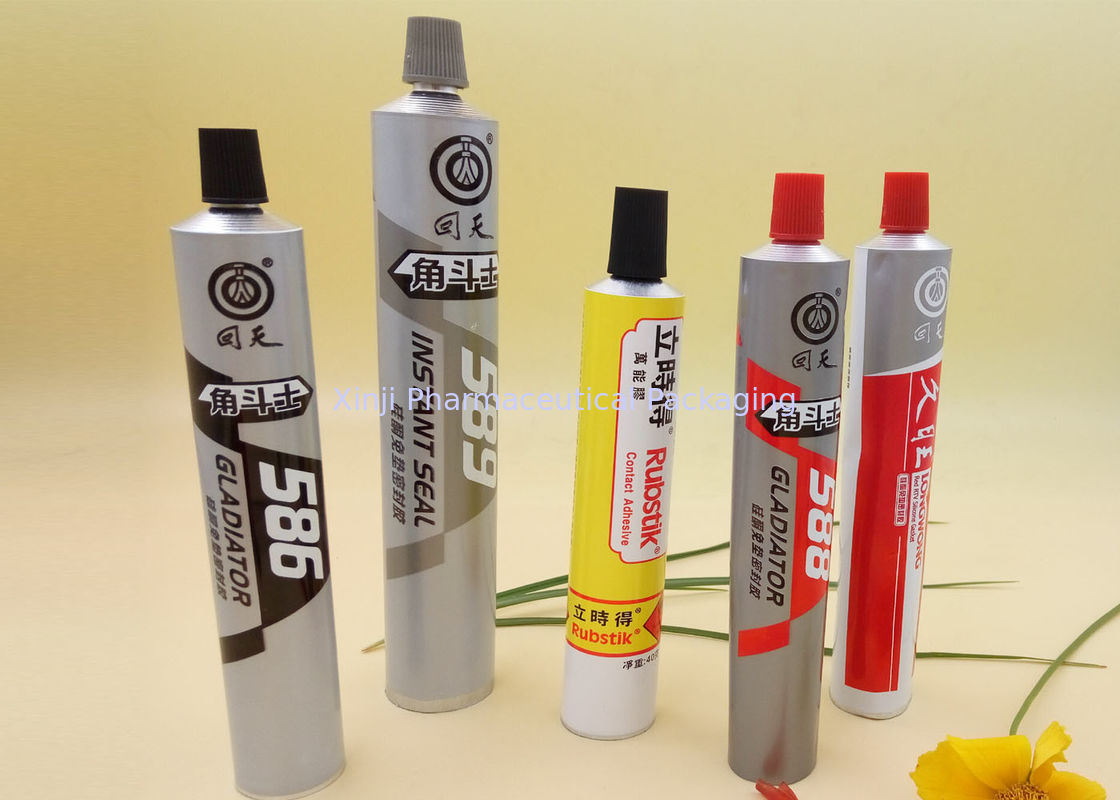

Printed Collapsible Industry Flexible Adhesive Tube Packaging , Glue Aluminum Packaging Tubes
We are the 3rd largest manufacturer of aluminum collapsible tube industry. Our tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
We introduced several sets of production lines from PSG of German and Technopack of Italy, and equipped with technique of the mark one take on top sealed and tube shoulder, three take on internal coating, six colors printing and the latex at the end, etc which can meet requirements of kinds tube appearance for customers.
|British Standard of Aluminum Collapsible Tube BS2006-1984|
|Sheet3 Size Standard|
|Tolerance of Diameter||
|Tolerance of Length||
|Tube Wall Thickness||Shoulder Thickness|
|Max||Min||Max||Min||Shoulder Angle Standard|
|60||0.11||0.07||0.5||0.3||90℃ or 120℃ or 126℃|
|13.5||75||60 or 70||0.11||0.07||0.5||0.3||90℃ or 120℃ or 126℃|
|16||100||80||0.12||0.08||0.65||0.35||120℃ or 126℃|
|19||110||95||0.13||0.1||0.65||0.35||120℃ or 126℃|
|22||130||95 or 115||0.14||0.1||0.65||0.35|
|25||150||95 or 115||0.14||0.1||0.7||0.4||No Standard|
|45||±0.25||200||115 or 135||0.18||0.12||0.9||0.5|
|The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle|
Adhere to the business philosophy “Meticulously manufacture, different for you”, we clearly understand the needs of customers, establish supply chain system and appropriate procedures based on customer needs to maximize customer satisfaction .
For any quality problems, analysis the cause with high standards in order to establish a long-term mechanism; Each employee should understand how their daily work affects the quality level and customer satisfaction, continue to improve their own work for better service to our customers.
Contact Person: Ms. Echo
