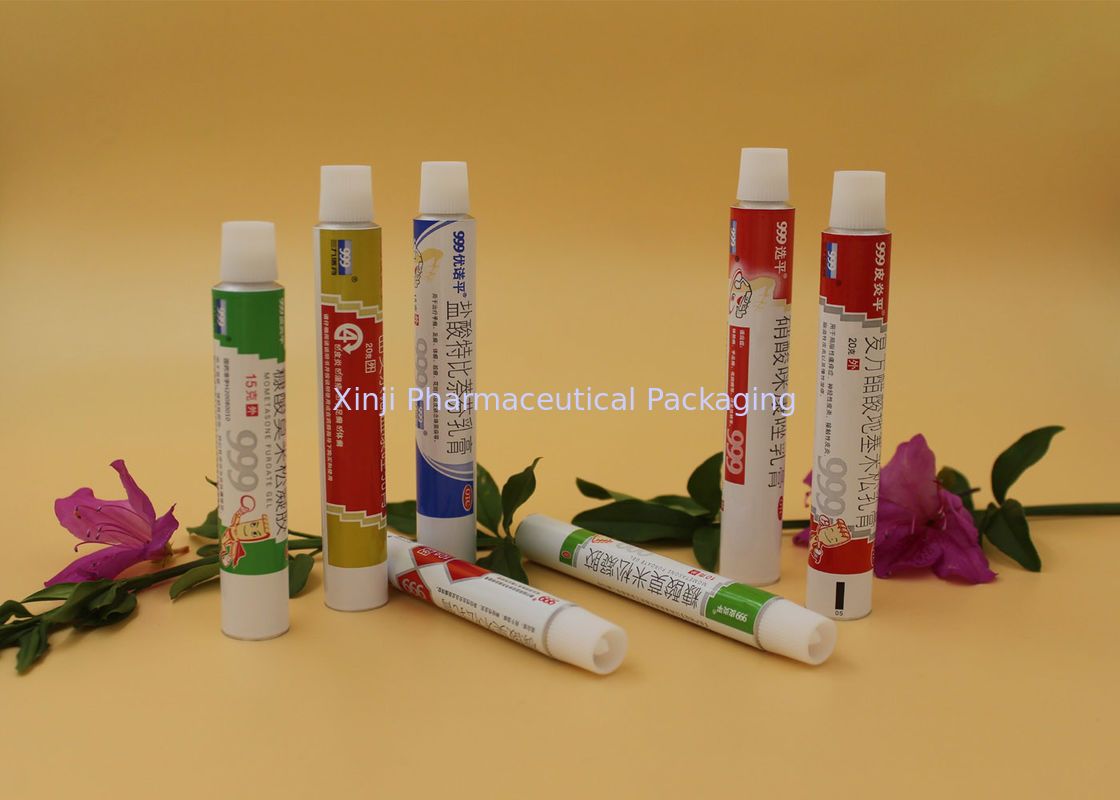

M7 M9 M11 M15 Aluminum Packaging Tubes 6 Colors Printing Optional

M7 M9 M11 M15 Aluminum Packaging Tubes 6 Colors Printing Optional

M7 M9 M11 M15 Aluminum Packaging Tubes 6 Colors Printing Optional

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia. 13.5mm - Dia. 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: 99.7% Purity Aluminum Origin: Hubei, China (Mainland)
Color Of Printing: Up To 6 Colors Name: Soft Aluminum Tube
Thread: M7 M9 M11 M15 Application: Cosmetics, Medicine, Food, Etc.

Customized Collapsible Tube , Aluminum Packaging Tubes , Printing Tubes



Detailed Description:



We are the 3rd largest manufacturer of aluminum collapsible tube industry. Our tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.We have complete production lines in factory, including tube extrusion, internal lacquering, external coating, offset printing and latex lining. Filling and sealing machines are also available for packaging. Custom production is acceptable to meet client’s needs!



  1. The diameter of the tube can be from 13mm to 25mm. This is subject to customer's choosing. Or we will suggest the size for customers.
  2. Printing is offseting printing with max. 6 colors.
  3. The normal screw cap,and special shape caps are available to select. The cap can also be with different colors.
  4. The top is unbreaken dsealing.
  5. The end of the tube is opened.
  6. We can print and design according to your idea and artwork.

General Description:



1. CAP:Colour-white/red/blue;Type-Conual Piercer;material-HPPE.

2. Aluminum Blamks:Aluminum>99.7% pure.

3. Internal Lacquer:Type-Expoxy-Phenolic Resin.

4. External Base Coat:Type-Enamel;Colour-White.

5. Colour Ink:Suplier-Shanghai DIC.

6. Crimp sealant brand:PPG.

7. Manufacturing Environment:The construction of 100000-ton cleaning production packing workshop.

8. The standard of Inspection:BS2006-86 Aluminum collapsible tube for medicine ointment



Diameter Dia 13.5mm-40mm
Capacity 5ml-300ml (0.27oz-13oz)
Length adjusted within the range of tube capacity (5ml to 300ml)
Layer mono-layer to five layers tube
Shape round,oval,super flat
Tube color white, transparent,colored
Printing 1-6 colors printing
Cap Flip top cap, screw on cap
Usage Cosmetic, Pharmaceutical, Health & Beauty industries
Packaging card board tray and carton with plastic bag inside



British Standard of Aluminum Collapsible Tube     BS2006-1984



Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



FAQ:



1. Are you trading company or manufacturer ?

We are the 3rd largest manufacturer in this industry.



2. How to get samples ?

Samples without customized printing are free, but do not pay the cost of freight.



3. How long is your delivery time?

Generally it is 30 days after we sign the contract, it is according to quantity.



4. What's your payment term?

T/T, L/C, Western Union, etc.
