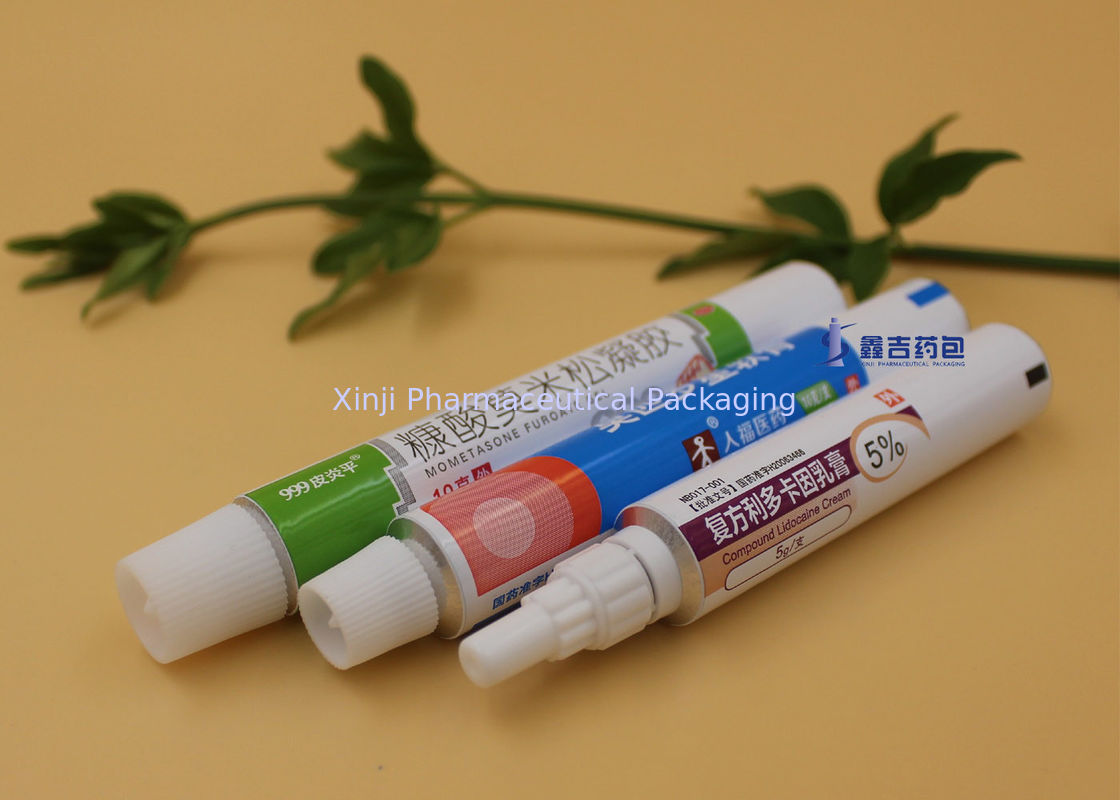

Skin Dermatological Metal Squeeze Tubes Enamel External Base Coat

Skin Dermatological Metal Squeeze Tubes Enamel External Base Coat

Skin Dermatological Metal Squeeze Tubes Enamel External Base Coat

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm-Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: Aluminum Usage: Cosmetics, Medicine, Food, Etc.
Printing: Customized Product Name: Aluminum Collapsible Tube
Place Of Origin: China Color Of Printing: Not More Than 6 Colors

Skin Dermatological , Metal Squeeze Tubes , Aluminum packaging



Our Aluminum tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc. With high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle



Details:



1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.

2. Aluminum Blamks: Aluminum>99.7% pure.

3. Internal Lacquer: Type-Expoxy-Phenolic Resin.

4. External Base Coat: Type-Enamel;Colour-White.

5. Colour Ink: Suplier-Shanghai DIC.

6. Crimp sealant brand: PPG.

7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.

8. Equipment: Germany PSG fully automatic production line.

9. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.

10. Closing: Under an air pressure of 0.2Mpa, no leakage.

11. Appearance: Integrity and clean.

12. Coating: The color matches the standard,no exposure and no tiny oil droplets.

13. Color printing: Clear and entirety, the overprint is in position.

14. Flexibility and adhesion: The lacquer did not split off and no crazing.

15. Package: Wholeness and clean.





British Standard of Aluminum Collapsible Tube               BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle
