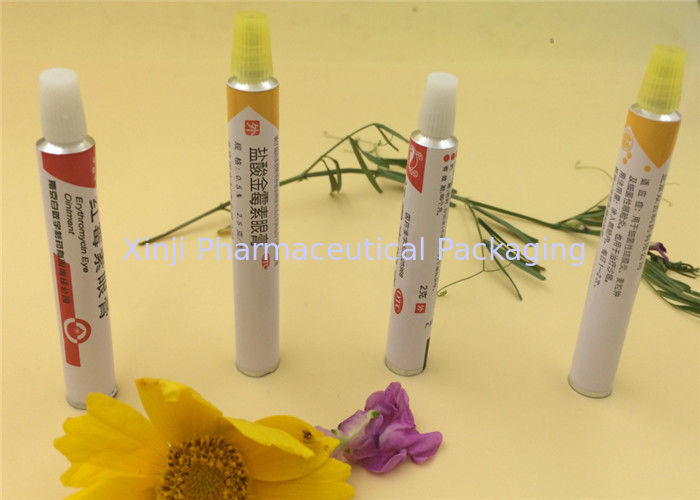

Recyclable Aluminum Eye Ointment Tube Epoxy Phenolic Resin Internal Lacquer

Recyclable Aluminum Eye Ointment Tube Epoxy Phenolic Resin Internal Lacquer

Recyclable Aluminum Eye Ointment Tube Epoxy Phenolic Resin Internal Lacquer

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: carton packaging, or plastic packaging as your requirment.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions per year
Detailed Product Description
Material: 99.7% Purity Aluminum Sterile Or Not: Sterile
Name: Aluminum Collapsible Tubes Color Of Printing: Up To 6 Colors
Usage: Medicine Tube Diameter: 13.5mm

Sterile Eye Cream Aluminum Soft Tube , Eye Ointment Tube , Eye Cream Packaging Tube



Gerenal Description:



1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.

2. Aluminum Blamks: Aluminum>99.7% pure.

3. Internal Lacquer: Type-Expoxy-Phenolic Resin.

4. External Base Coat: Type-Enamel;Colour-White.

5. Colour Ink: Suplier-Shanghai DIC.

6. Crimp sealant brand: PPG.

7. Manufacturing Environment:The construction of 100000-ton cleaning production packing workshop.

8. The standard of Inspection:BS2006-86 Aluminum tube for medicine ointment.



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle



Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(ml)
4.5

7
7

12
14

24
20

35
30

55





British Standard of Aluminum Collapsible Tube                              BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



In the production of the collapsible, It's almost 500 degrees high temperature sterilizing.
Our workshops were built in according to the construction requirements of GMP in pharmaceutical
production. Our factory use clean central-station air handing units from internal coating to
packaging workshop to ensure our production environment reach 100n thousand grade standard.
The compressed air after strict purification treatment fully meet the production conditions
of direct contact with pharmaceutical packaging materials.
