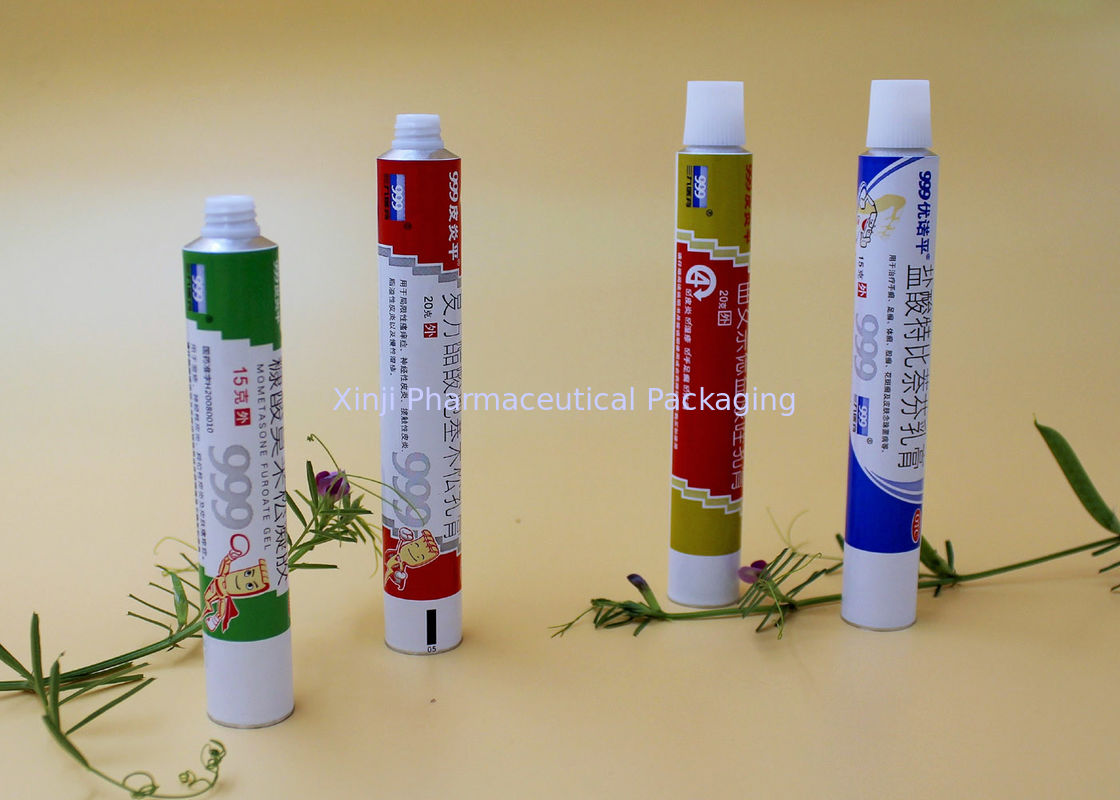

Round Aluminum Collapsible Tubes , Recyclable Toothpaste Tube Packaging

Round Aluminum Collapsible Tubes , Recyclable Toothpaste Tube Packaging

Round Aluminum Collapsible Tubes ,  Recyclable Toothpaste Tube Packaging

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia. 13.5mm - Dia. 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: Aluminum 99.7% Purity Origin: China
Color Of Printing: Up To 6 Colors Thread: M7 M9 M11 M15
Name: Collapsible Aluminum Packaging Tube Diameter: Dia. 13.5mm - Dia. 40mm
High Light:

squeeze tube packaging

,

aluminum lotion tubes

Collapsible Tube , Aluminum Packaging Tubes , Printing soft Tubes



Description:



Material: aluminum purity>99.7%

Diameter: 13.5mm

Length: based on customer’s requirement

Nozzles: Open, Elongated, Sealed

Color and printing: based on customer’s requirements

And Lacquer and latex upon request



Useage Pharmaceutical, cosmetic, food, adhesive packaging, etc.
CAP Colour-white/red/blue; Type-Conual Piercer; material-HPPE.
Aluminum Blamks Aluminum>99.7% pure.
Internal Lacquer Type-Expoxy-Phenolic Resin.
External Base Coat Type-Enamel;Colour-White.
Colour Ink Suplier-Shanghai DIC.
Crimp sealant brand PPG.
Manufacturing Environment The construction of 100000-ton cleaning production packing workshop.
The standard of Inspection BS2006-86 Aluminum tube for medicine ointment.
Closing Under an air pressure of 0.2Mpa,no leakage
Appearance Integrity and clean
Coating The color matches the standard,no exposure and no tiny oil droplets
Color printing Clear and entirety,the overprint is in position
Flexibility and adhesion The lacquer did not split off and no crazing
Chemicals Wipe 30 times with acetone,the lacquer did not split off
Package Wholeness and clean





Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle



British Standard of Aluminum Collapsible Tube     BS2006-1984



Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle
