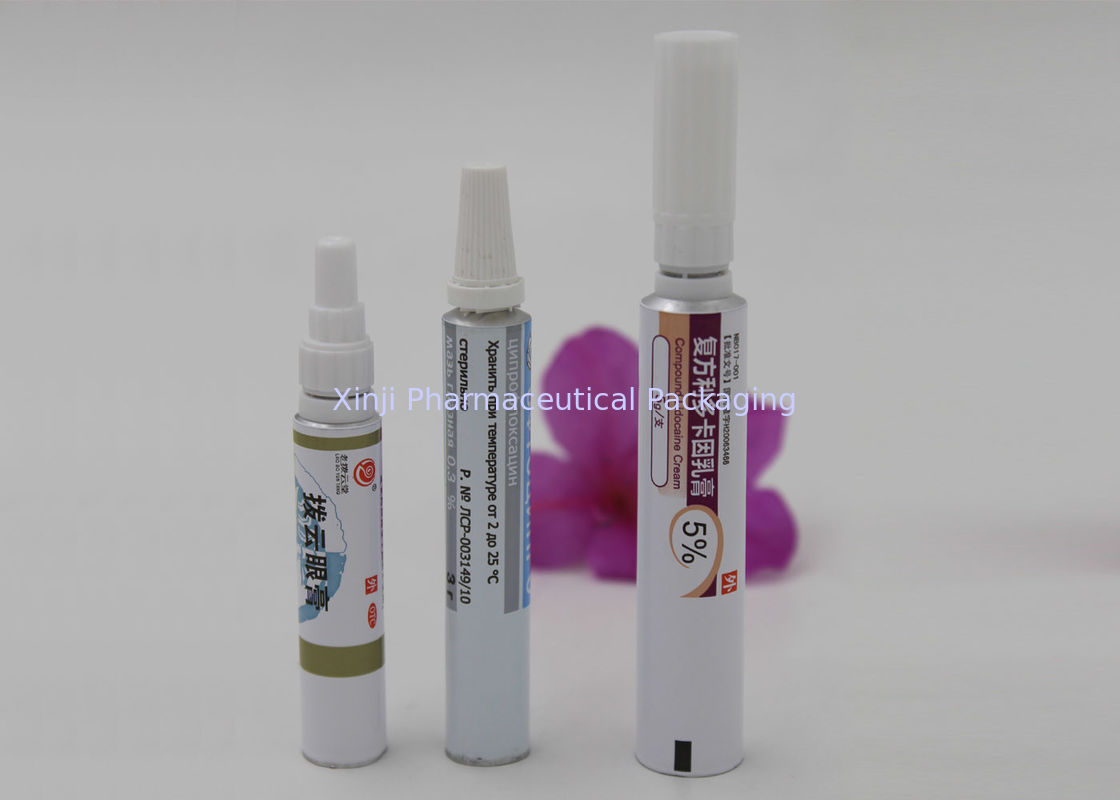

Printed Blank Aluminum Packaging Tubes M7 / M9 / M11 / M15 Thread

Printed Blank Aluminum Packaging Tubes M7 / M9 / M11 / M15 Thread

Printed Blank Aluminum Packaging Tubes M7 / M9 / M11 / M15 Thread

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia. 13.5mm - Dia. 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: Aluminum 99.7% Origin: China ( Mainland )
Color: Not More Then 6 Colors Thread: M7 M9 M11 M15
Name: Collapsible Aluminum Packaging Tubes Diameter: Dia. 13.5mm - Dia. 40mm
High Light:

toothpaste tube packaging

,

aluminum lotion tubes

Printed Blank Soft Collapsible Tube , Aluminum Packaging Tubes , Printing Tubes Packaging



Our company brought in several high speed automatic production line from Germany and Italy. We gather a professional management team, We gather a professional management team, combine the tube making technology accumulated in 30 more years with scientific management, regard “make every aluminum tube trustworthy” as our quality concept to cover the whole process including products designing, developing, producing, transporting and servicing.



FAQ:



1. Are you trading company or manufacturer?

We are the 3rd largest manufacturer in this industry.



2. How to get samples?

Samples without customized printing are free, but do not pay the cost of freight.



3. How long is your delivery time?

Generally it is 30 days after we sign the contract, it is according to quantity.



4. What's your payment term?

T/T, L/C, Western Union, etc.



Description:



Useage Pharmaceutical, cosmetic, food, adhesive packaging, etc.
CAP Colour-white/red/blue; Type-Conual Piercer; material-HPPE.
Aluminum Blamks Aluminum>99.7% pure.
Internal Lacquer Type-Expoxy-Phenolic Resin.
External Base Coat Type-Enamel;Colour-White.
Colour Ink Suplier-Shanghai DIC.
Crimp sealant brand PPG.
Manufacturing Environment The construction of 100000-ton cleaning production packing workshop.
The standard of Inspection BS2006-86 Aluminum tube for medicine ointment.
Closing Under an air pressure of 0.2Mpa,no leakage
Appearance Integrity and clean
Coating The color matches the standard,no exposure and no tiny oil droplets
Color printing Clear and entirety,the overprint is in position
Flexibility and adhesion The lacquer did not split off and no crazing
Chemicals Wipe 30 times with acetone,the lacquer did not split off
Package Wholeness and clean




British Standard of Aluminum Collapsible Tube     BS2006-1984



Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Diameter Dia 13.5mm-40mm
Capacity 5ml-200ml
Length adjusted within the range of tube capacity (5ml to 300ml)
Layer mono-layer to five layers tube
Shape round,oval,super flat
Tube color white, transparent,colored
Printing 1-6 colors printing
Cap Flip top cap, screw on cap
Usage Cosmetic, Pharmaceutical, Health & Beauty industries
Packaging card board tray and carton with plastic bag inside
