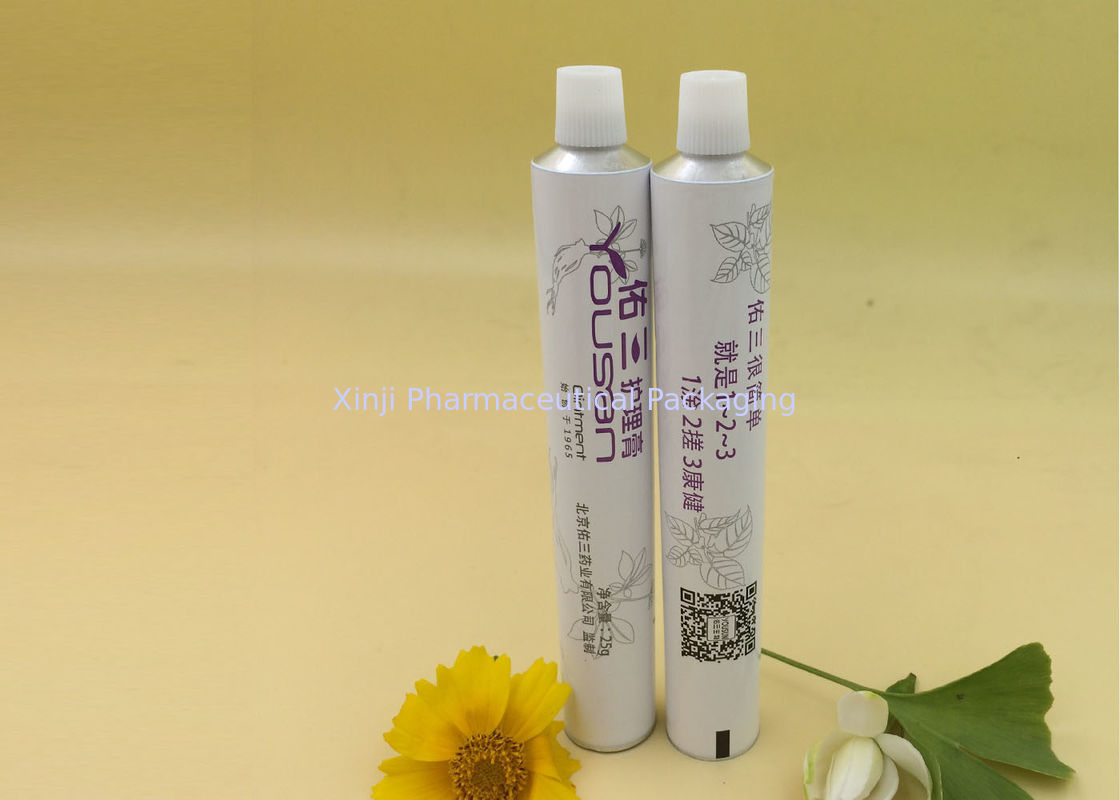

Professional Aluminum Cosmetic Tubes Food / Medicine / Adhesive Suit

Professional Aluminum Cosmetic Tubes Food / Medicine / Adhesive Suit

Professional Aluminum Cosmetic Tubes Food / Medicine / Adhesive Suit

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia. 13.5mm - Dia. 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: Aluminum Origin: Hubei, China ( Mainland )
Color: Max 6 Colors Artwork: Customized
Name: Aluminum Collapsible Tube Usage: Cosmetics, Medicine, Food, Adhesive, Etc.

Cream Container Aluminum Tube , Aluminum Cosmetic Tubes , Ointment Tube Packaging



We are TOP3 manfuacturer in aluminum collapsible tube industry.



Description:



1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel; Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment:The construction of 100000-ton cleaning production packing workshop.
8. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.



Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle



British Standard of Aluminum Collapsible Tube     BS2006-1984



Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Quality Management:



We adhere to “quality is out of production”, require strictly self-inspection, mutual inspection and routing inspection by operator and QC during production, to detect and solve quality problems, ensure the product safety and stability from source . Finished products gone through twice full inspection for outside tube defects, once full inspection for inside tube defects, once inside and outside casual inspection , once tightened inspection by QC .Through inspection at each process, the small probability defect of aluminum tubes reached the level of 6α.
