|Place of Origin:||China|
|Model Number:||Dia 13.5mm - Dia 40mm|
|Minimum Order Quantity:||50000 pcs|
|Packaging Details:||Packed in strong carton,suitable for long distance ocean transportation.|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||300 millions pcs per year|
|Material:||Aluminum||Name:||Squeeze Aluminum Tubes Packaging|
|Color:||Max 6 Colors||Artwork:||Customized|
|Diameter:||13.5mm~40mm||Usage:||Cosmetic Packaging Tubes|

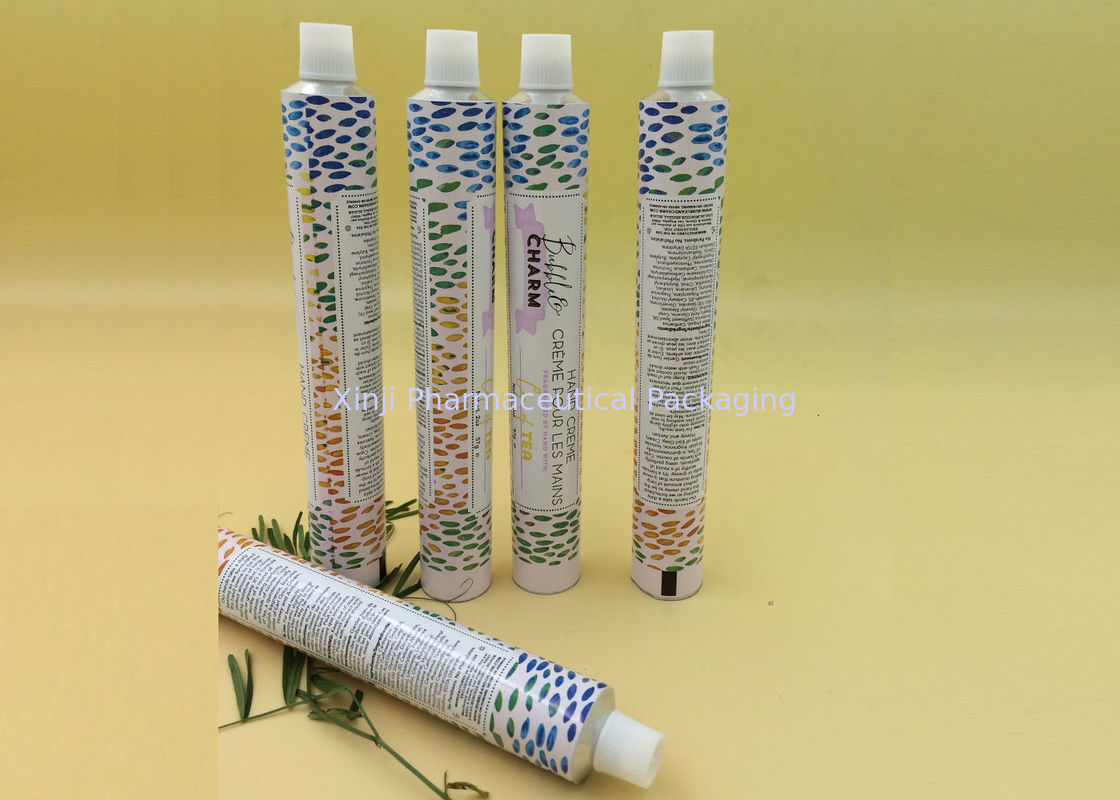

Cosmetic Packaging Aluminum Paint Tubes , Aluminum Cosmetic Tubes , Cosmetic Packaging Tube
We are the 3rd largest manufacturer of collapsible aluminum tube industry. Our Aluminum tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
Nearly 40 years experience in packaging design, develop and manufacture.
Strong R&D team, customized-products. 100% QC inspection before delivery, high quality with very competitive price. 90% of our products are exporting to oversea market, top service and timely delivery.
1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum＞99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel;Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.
8. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.
9. Closing: Under an air pressure of 0.2Mpa, no leakage.
10. Appearance: Integrity and clean.
11. Coating: The color matches the standard,no exposure and no tiny oil droplets.
12. Color printing: Clear and entirety, the overprint is in position.
13. Flexibility and adhesion: The lacquer did not split off and no crazing.
14. Package: Wholeness and clean.
1. Scale. Top 3 manfuacturer of collapsible aluminum tubes in whole China, with annual capacity of 300 million pcs.
2. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
3. Production Lines. Full automatic production lines from Germany and Italy.
4. Quality. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
5. Price. Factory direct sells, offering you the most competitive price!
6. Service. Quick response on quotation, sample and after-service.
|British Standard of Aluminum Collapsible Tube BS2006-1984|
|Sheet3 Size Standard|
|Tolerance of Diameter||
|Tolerance of Length||
|Tube Wall Thickness||Shoulder Thickness|
|Max||Min||Max||Min||Shoulder Angle Standard|
|60||0.11||0.07||0.5||0.3||90℃ or 120℃ or 126℃|
|13.5||75||60 or 70||0.11||0.07||0.5||0.3||90℃ or 120℃ or 126℃|
|16||100||80||0.12||0.08||0.65||0.35||120℃ or 126℃|
|19||110||95||0.13||0.1||0.65||0.35||120℃ or 126℃|
|22||130||95 or 115||0.14||0.1||0.65||0.35|
|25||150||95 or 115||0.14||0.1||0.7||0.4||No Standard|
|45||±0.25||200||115 or 135||0.18||0.12||0.9||0.5|
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle
