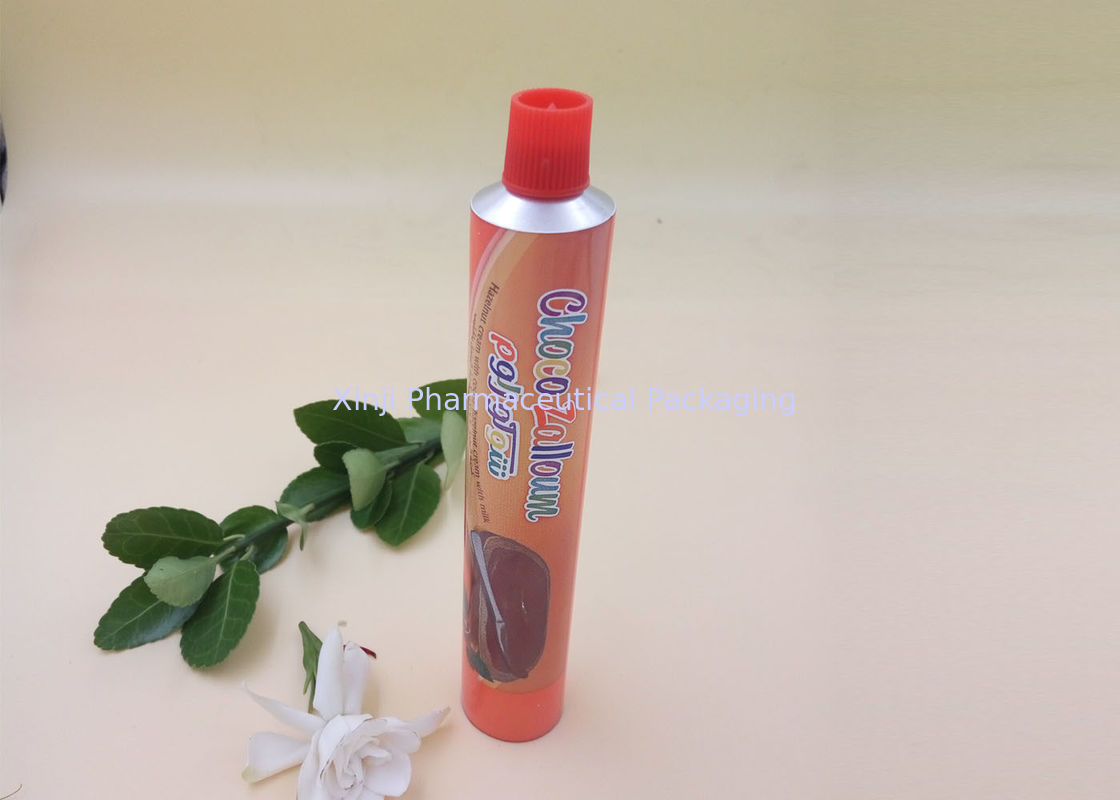

HPPE Cap Aluminum Collapsible Tubes , Dia 13.5 Mm - 40 Mm Squeeze Cheese Tube

HPPE Cap Aluminum Collapsible Tubes , Dia 13.5 Mm - 40 Mm Squeeze Cheese Tube

HPPE Cap Aluminum Collapsible Tubes , Dia 13.5 Mm - 40 Mm Squeeze Cheese Tube

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CDFA
Model Number: Dia.13.5mm-40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: box, carton and pallet; or other special packing as per your requirement.
Delivery Time: within 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 million pcs per year
Contact Now
Detailed Product Description
Material: Aluminum Name: Squeeze Aluminum Food Tube
Application: Aluminum Packaging Tube For Jam Diameter: 13.5mm-40mm
Origin: Hubei, China Color: Up To 6 Colors Priting
High Light:

tube packaging for food

,

food packaging tubes

Aluminum Packaging Food Squeeze Tubes For Food Grade Dia 13.5 mm - 40 mm



Gerenal Description



1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.

2. Aluminum Blamks: Aluminum>99.7% pure.

3. Internal Lacquer: Type-Expoxy-Phenolic Resin.

4. External Base Coat: Type-Enamel;Colour-White.

5. Colour Ink: Suplier-Shanghai DIC.

6. Crimp sealant brand: PPG.

7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.

8. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.

9. Closing: Under an air pressure of 0.2Mpa, no leakage.

10. Appearance: Integrity and clean.

11. Coating: The color matches the standard,no exposure and no tiny oil droplets.

12. Color printing: Clear and entirety, the overprint is in position.

13. Flexibility and adhesion: The lacquer did not split off and no crazing.

14. Package: Wholeness and clean.





British Standard of Aluminum Collapsible Tube               BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Our Service:



We can deliver free samples if you need. Please feel free to contact us or email us.



It would be our great honor to send you some free samples for your quality test.



We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.



Once you get the package, please let us know your idea on our goods, packaging and service.


Any problems will be answered within 24hours


If you need us to improve the service, please feel free to contact us.



We have worked for Packaging especially Aluminum Tubes for nearly 40 years. We introduce production line and import the raw materials to keep the top quality. Then Products under GMP workshop and serious staff control. Our price is quite competitive. We believe in that Customers First! If you have any price inquiry, please contact us, we will provide the best quality products with the most competitive price ever!
