Home ProductsFood Squeeze Tubes

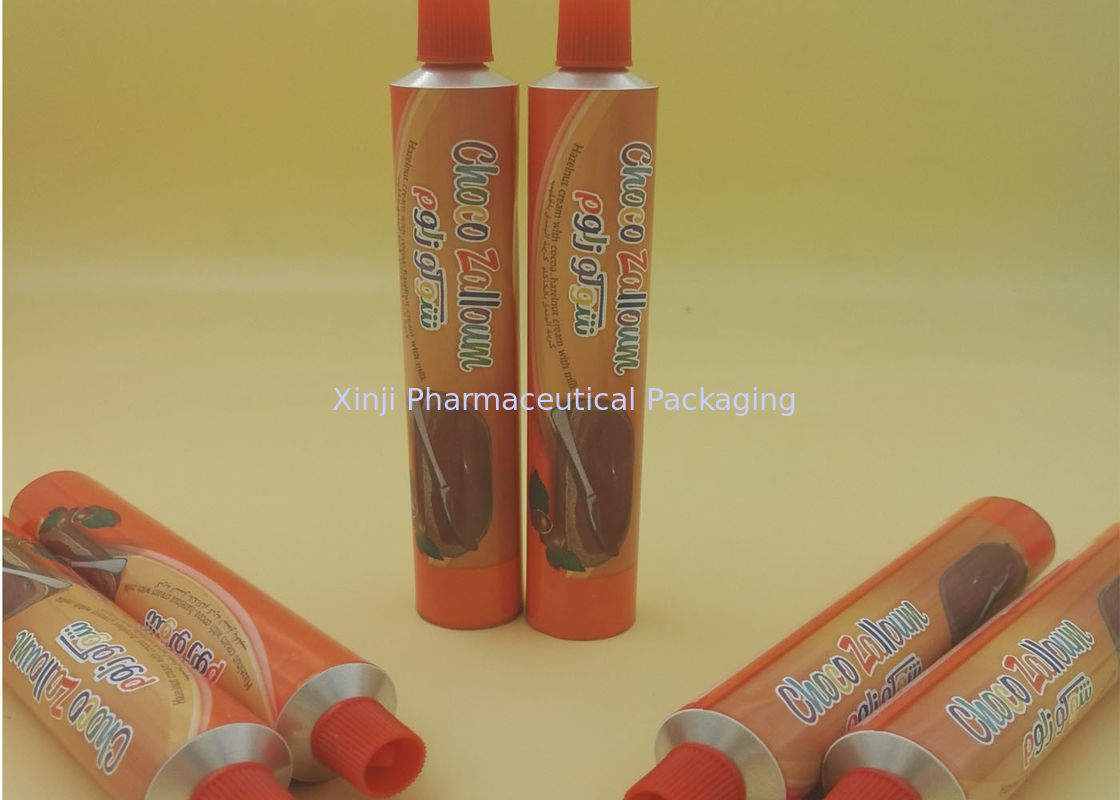

3 - 200 Ml Volume Food Squeeze Tubes Packaging 13.5 Mm - 40 Mm Diameter

3 - 200 Ml Volume Food Squeeze Tubes Packaging 13.5 Mm - 40 Mm Diameter

3 - 200 Ml Volume Food Squeeze Tubes Packaging 13.5 Mm - 40 Mm Diameter

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CDFA
Model Number: Dia13.5mm-40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: box, carton and pallet; or other special packing as per your requirement.
Delivery Time: within 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 million pcs per year
Detailed Product Description
Material: Aluminum 99.7% Purity Name: Squeeze Soft Aluminum Tube For Food
Application: Aluminum Packaging Tube For Food Diameter: 13.5mm-40mm
Origin: China Color: Up To 6 Colors

3 - 200 ml Volume Printing Aluminium Collapsible Food Squeeze Tubes For Food Jam Packaging



General Description



1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.

2. Aluminum Blamks: Aluminum>99.7% pure.

3. Internal Lacquer: Type-Expoxy-Phenolic Resin.

4. External Base Coat: Type-Enamel;Colour-White.

5. Colour Ink: Suplier-Shanghai DIC.

6. Crimp sealant brand: PPG.

7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.

8. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.

9. Closing: Under an air pressure of 0.2Mpa, no leakage.

10. Appearance: Integrity and clean.

11. Coating: The color matches the standard,no exposure and no tiny oil droplets.

12. Color printing: Clear and entirety, the overprint is in position.

13. Flexibility and adhesion: The lacquer did not split off and no crazing.

14. Package: Wholeness and clean.



Standard Nozzle:

  1. Plastic on-sert nozzle No.2 tube
  2. Metric (V thread) open nozzle
  3. Metric (V thread) sealed nozzle (membrane)
  4. Extended Plastic Nozzle
  5. Extended Nozzle
  6. Plastic on-sert nozzle

In the production of the collapsible, It's almost 500 degrees high temperature sterilizing.
Our workshops were built in according to the construction requirements of GMP in pharmaceutical
production. Our factory use clean central-station air handing units from internal coating to
packaging workshop to ensure our production environment reach 100n thousand grade standard.
The compressed air after strict purification treatment fully meet the production conditions
of direct contact with pharmaceutical packaging materials.



British Standard of Aluminum Collapsible Tube               BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Our advantages:



We have worked for Packaging especially Aluminum Tubes for nearly 40 years. We introduce production line and import the raw materials to keep the top quality. Then Products under GMP workshop and serious staff control. Our price is quite competitive. We believe in that Customers First! If you have any price inquiry, please contact us, we will provide the best quality products with the most competitive price ever!
