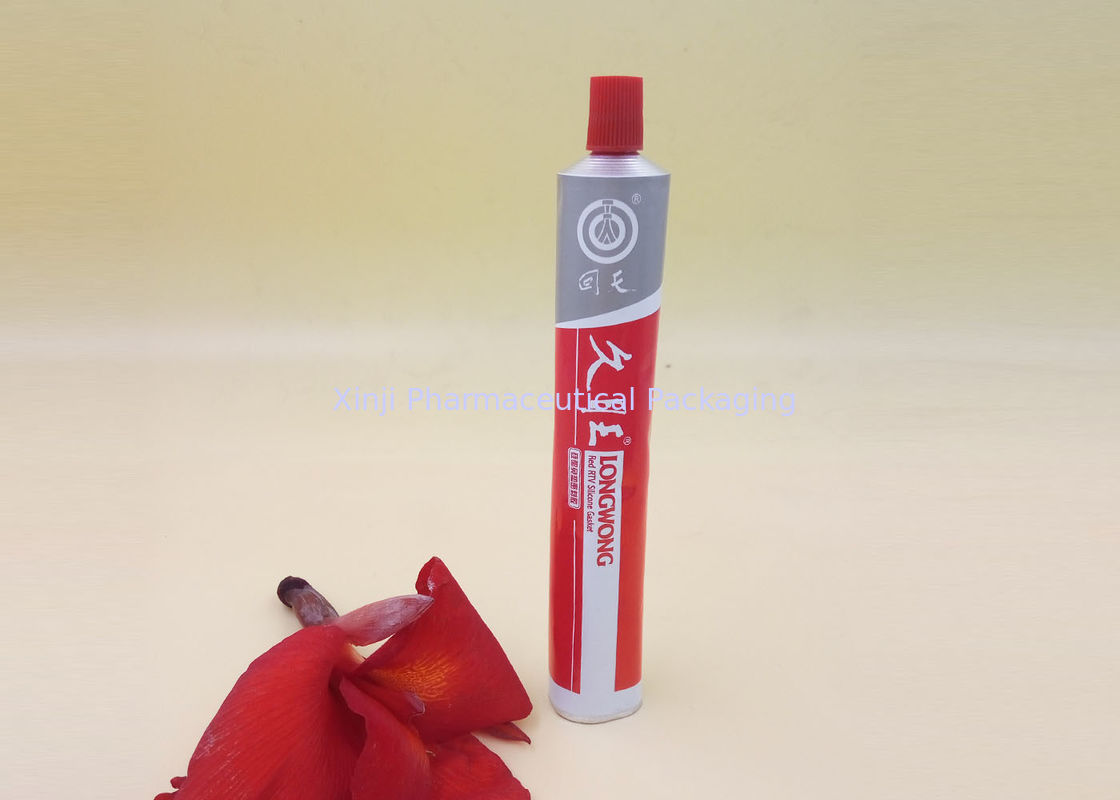

Industrial Flexible Aluminum Squeeze Tube Packaging Customized Printing

Industrial Flexible Aluminum Squeeze Tube Packaging Customized Printing

Industrial Flexible Aluminum Squeeze Tube Packaging Customized Printing

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CDFA
Model Number: Dia13.5mm-40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: box, carton and pallet; or other special packing as per your requirement.
Delivery Time: within 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 million pcs per year
Contact Now
Detailed Product Description
Material: Aluminum 99.7% Diameter: 13.5mm-40mm
Artwork: Customized Nozzles: Open, Elongated, Sealed , Etc.
Origin: Hubei, China Name: Gule Aluminum Packaging Tubes
High Light:

squeeze tube containers

,

collapsible aluminium tubes

Collapsible Aluminum Tubes , Industrial Flexible Packaging Tubes , Adhesive Tube With Customized Printing





British Standard of Aluminum Collapsible Tube                        BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Our advantages:

  • Scales: Now we are the top 3 in China aluminum material manufacturing company.
  • Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
  • Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
  • Technique: many researchers are invested in product study.
  • Production lines: Full automatic production lines from Germany and Italy.
Diameter(mm) Length suggest(mm)
13.5mm 50-90mm
16mm 80-100mm
19mm 80-130mm
22mm 80-130mm
25mm 100-140mm
28mm 130-175mm
30mm 140-175mm
32mm 150-190mm
35mm 160-200mm
38mm 160-200mm
40mm 160-200mm



Our quality system


ISO9001certification
Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)



Quality Management:



The quality management department is a specific department independent of others.

Equipped with professional quality inspectors and inspection facilities, it implements effective supervision towards the whole process of all activities related to the product quality though continuously self-improvement quality management system.



We adhere to “quality is out of production”, require strictly self-inspection, mutual inspection and routing inspection by operator and QC during production, to detect and solve quality problems, ensure the product safety and stability from source . Finished products gone through twice full inspection for outside tube defects, once full inspection for inside tube defects, once inside and outside casual inspection , once tightened inspection by QC .Through inspection at each process, the small probability defect of aluminum tubes reached the level of 6α.



“make every aluminum tube trustworthy” as our quality concept to cover the whole process including products designing, developing, producing, transporting and servicing.
