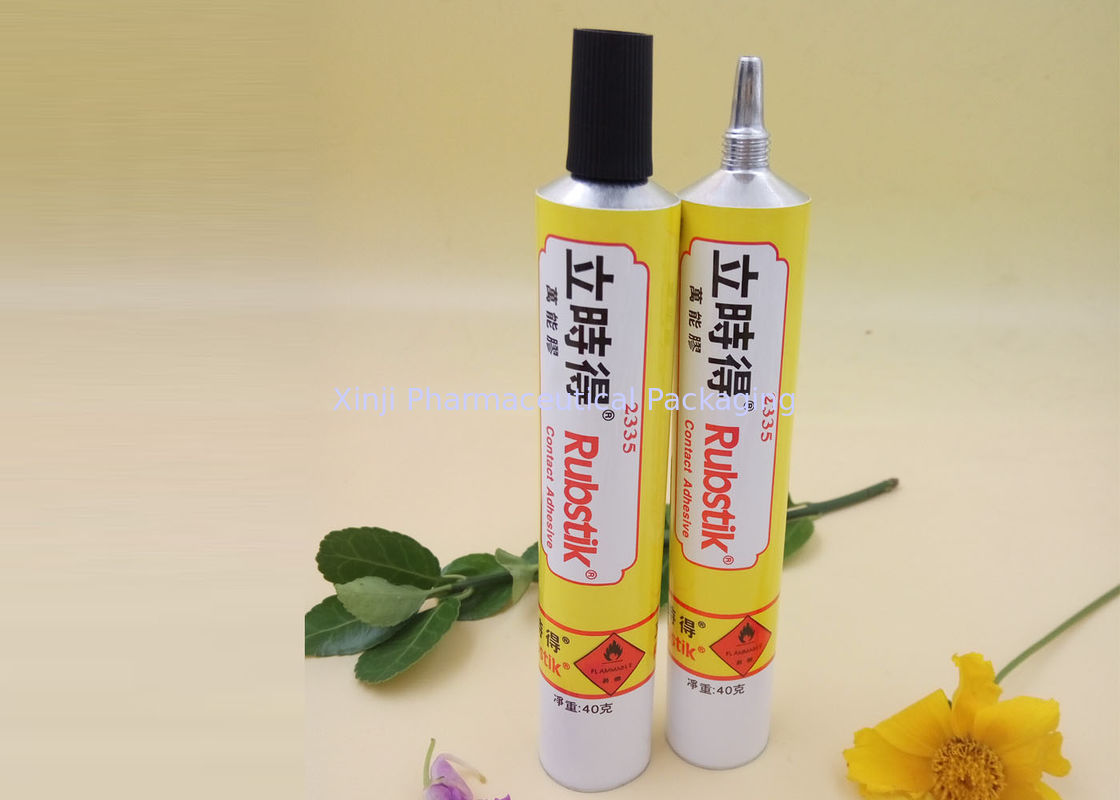

Aluminum Nozzle Squeeze Tube Packaging , 13.5mm - 40mm Cosmetic Tube Packaging

Aluminum Nozzle Squeeze Tube Packaging , 13.5mm - 40mm Cosmetic Tube Packaging

Aluminum Nozzle Squeeze Tube Packaging , 13.5mm - 40mm Cosmetic Tube Packaging

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CDFA
Model Number: Dia13.5mm-40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: box, carton and pallet; or other special packing as per your requirement.
Delivery Time: within 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 million pcs per year
Contact Now
Detailed Product Description
Material: 99.7% Aluminum Diameter: 13.5mm-40mm
Nozzles: Open, Elongated, Sealed Thread: M7 M9 M11 M15
Origin: Hubei, China Name: Adhesive Aluminum Tube
High Light:

squeeze tube containers

,

metal toothpaste tubes

Aluminum Nozzle Glue Adhesive Tubes , Squeeze Flexible Adhesive Tube , Collapsible Aluminum Tube For Adhesive



Detailed Description:



Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum tube manufacturing.

We are the 3rd largest manufacturer of collapsible aluminum tube industry. Our Aluminum tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.



British Standard of Aluminum Collapsible Tube                        BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Our advantages:

  • Scales: Now we are the top 3 in China aluminum material manufacturing company.
  • Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
  • Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
  • Technique: many researchers are invested in product study.
  • Production lines: Full automatic production lines from Germany and Italy.

Advantage of Aluminum Pharmaceutical Tube Packaging:



* TAMPER-PROOF: Makes adulteration impossible. Cannot be re-filled or re-used.

* PROTECTIVE: Contents remain well protected and free from contamination.

* ELEGANT: Attractive Possess a bright surface and lend themselves to trouble-free printing, this enhances shelf and customer appeal.

* NON-TOXIC & HYGIENIC: Non -Toxic, hygienic, non-absorbent, Impart no * LIGHTWEIGHT: Easy to handle. Reduces transport and handling cost.

* COMPLETE COLLAPSIBILITY: Highly ductile, ensures complete collapsibility.

* EASY AVAILABILITY: Aluminum Collapsible tubes are easily available.

* ECONOMICAL: Costs less than Tin or lead tubes. Needs no varnish.

* USER CONVENIENCE: Easy to use, unbreakable, easy to carry, light in weight, hygienic.



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle
