Home ProductsAdhesive Tube

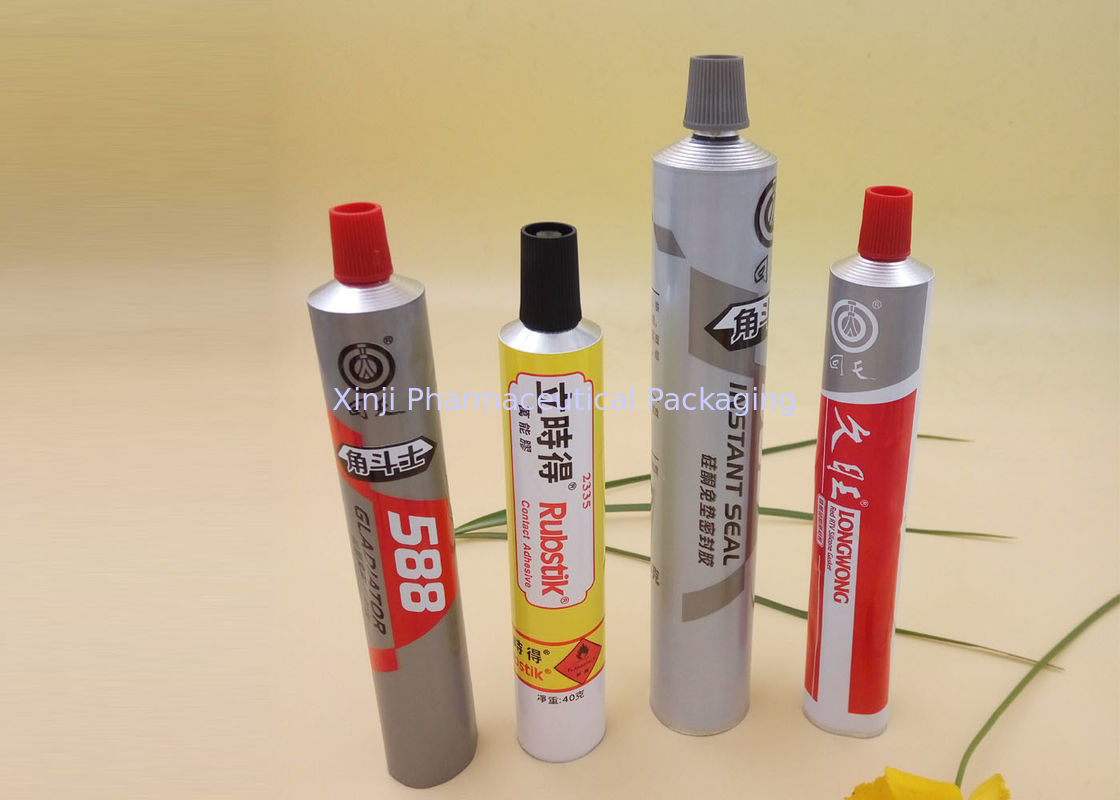

Squeezable Adhesive Tube Open / Elongated / Sealed Nozzles HPPE Cap

Squeezable Adhesive Tube Open / Elongated / Sealed Nozzles HPPE Cap

Squeezable Adhesive Tube Open / Elongated / Sealed Nozzles HPPE Cap

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CDFA
Model Number: Dia13.5mm-40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: box, carton and pallet; or other special packing as per your requirement.
Delivery Time: within 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 million pcs per year
Detailed Product Description
Material: Aluminum Diameter: 13.5mm-40mm
Nozzles: Open, Elongated, Sealed Thread: M7 M9 M11 M15
Origin: Hubei, China Name: Adhesive Aluminum Tube

Squeezable Collapsible Aluminum Adhesive Tubes Packaging For Adhesive Glue Use



General Description



1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.

2. Aluminum Blamks: Aluminum>99.7% pure.

3. Internal Lacquer: Type-Expoxy-Phenolic Resin.

4. External Base Coat: Type-Enamel;Colour-White.

5. Colour Ink: Suplier-Shanghai DIC.

6. Crimp sealant brand: PPG.

7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.

8. Equipment: Germany PSG fully automatic production line.

9. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.

10. Closing: Under an air pressure of 0.2Mpa, no leakage.

11. Appearance: Integrity and clean.

12. Coating: The color matches the standard,no exposure and no tiny oil droplets.

13. Color printing: Clear and entirety, the overprint is in position.

14. Flexibility and adhesion: The lacquer did not split off and no crazing.

15. Package: Wholeness and clean.



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle





British Standard of Aluminum Collapsible Tube                        BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Our advantages:

  • Scales: Now we are the top 3 in China aluminum material manufacturing company.
  • Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
  • Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
  • Technique: many researchers are invested in product study.
  • Production lines: Full automatic production lines from Germany and Italy.
