CFDA ISO Empty Cream Tubes , BS2006-86 Standard Tube Packaging Of Ointments

CFDA ISO Empty Cream Tubes , BS2006-86 Standard Tube Packaging Of Ointments

CFDA ISO Empty Cream Tubes , BS2006-86 Standard Tube Packaging Of Ointments

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Raw Material: > 99.7% Pure Aluminum Color: Up To 6 Colors
Name: Collapsible Cream Aluminum Tube Usage: For Medicine Packaging
Certificate: ISO, CFDA Standard: BS2006-86

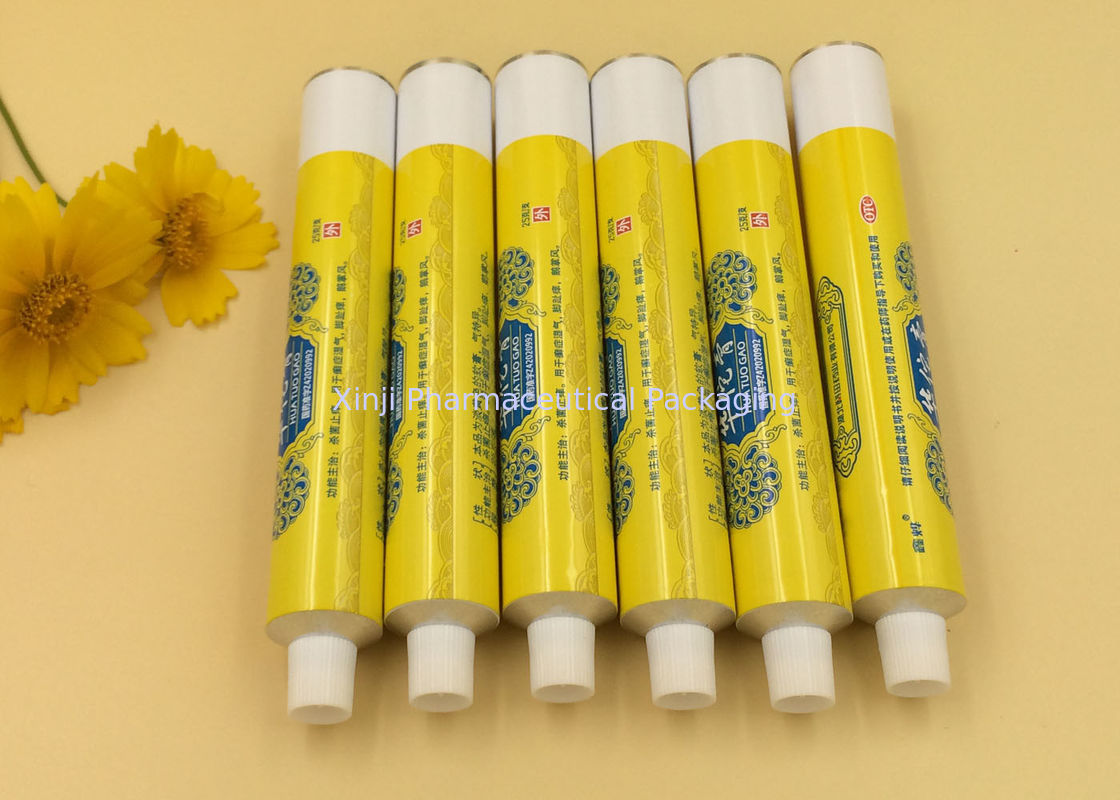

Soft Ointment Medicine Tube , Collapsible Cream Aluminum Tube with 6 Colors



Main Features:



Tube Diameter Dia 13.5mm - 40mm (length can customize)
Tube Capacity 3-200ml
Aluminum Slug Aluminum>99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Cap Color-white/red/blue/yellow; material-HPPE



Advantages:



Quality All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
Price Factory direct sells, offering you the most competitive price!
Service Quick response on quotation, sample and after-service.
Experience Nearly 40 years' accumulated producing experience in this field.
Production Lines Full automatic production lines from Germany and Italy.



FAQ:


1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
