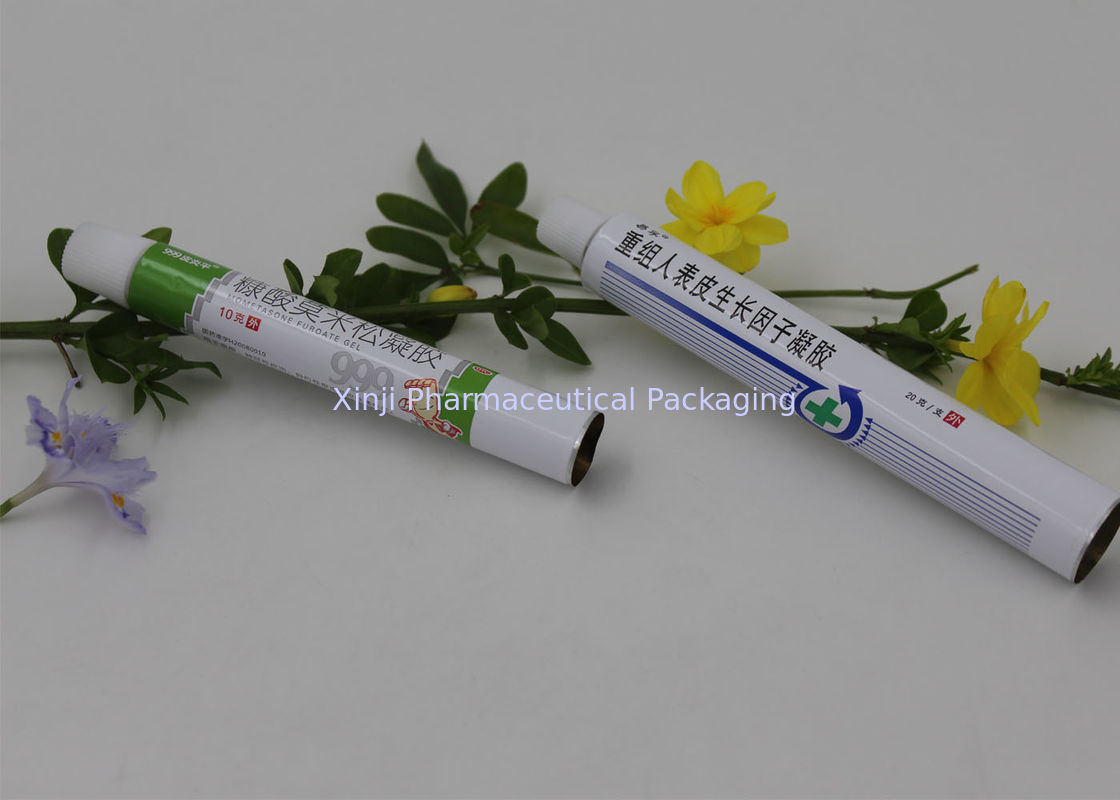

Full Printing Aluminum Squeeze Tubes For Hand / Foot / Medicine Cream

Full Printing Aluminum Squeeze Tubes For Hand / Foot / Medicine Cream

Full Printing Aluminum Squeeze Tubes For Hand / Foot / Medicine Cream

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Raw Material: Aluminum Color: Up To 6 Colors
Name: Flexible Aluminum Tube Packaging Certificate: ISO, CFDA
Artwork: Customized Origin: China

Full Printing Aluminum Tube , Aluminum Packaging Tubes For Hand / Foot / Medicine Cream



General Description



1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.

2. Aluminum Blamks: Aluminum>99.7% pure.

3. Internal Lacquer: Type-Expoxy-Phenolic Resin.

4. External Base Coat: Type-Enamel;Colour-White.

5. Colour Ink: Suplier-Shanghai DIC.

6. Crimp sealant brand: PPG.

7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.

8. Equipment: Germany PSG fully automatic production line.

9. The standard of Inspection: BS2006-86 Aluminum collapsible tube for medicine ointment.

10. Closing: Under an air pressure of 0.2Mpa, no leakage.

11. Appearance: Integrity and clean.

12. Coating: The color matches the standard,no exposure and no tiny oil droplets.

13. Color printing: Clear and entirety, the overprint is in position.

14. Flexibility and adhesion: The lacquer did not split off and no crazing.

15. Package: Wholeness and clean.



Alumminum collapsible Tube Specification sheet
Tube size(diameter) Standard(Length) Length Range Estimated Capacity
11mm 55mm 55-65mm 2-5ml
13.5mm 70mm 70-80mm 5-12ml
16mm 100mm 100ml-115ml 8-11ml
19mm 110mm 110mm-120mm 10-25ml
25mm could be designed 110-200mm 30-50ml
30mm     50-70ml
32mm     80-100ml
38mm     100-150ml
40mm     200-350ml



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
