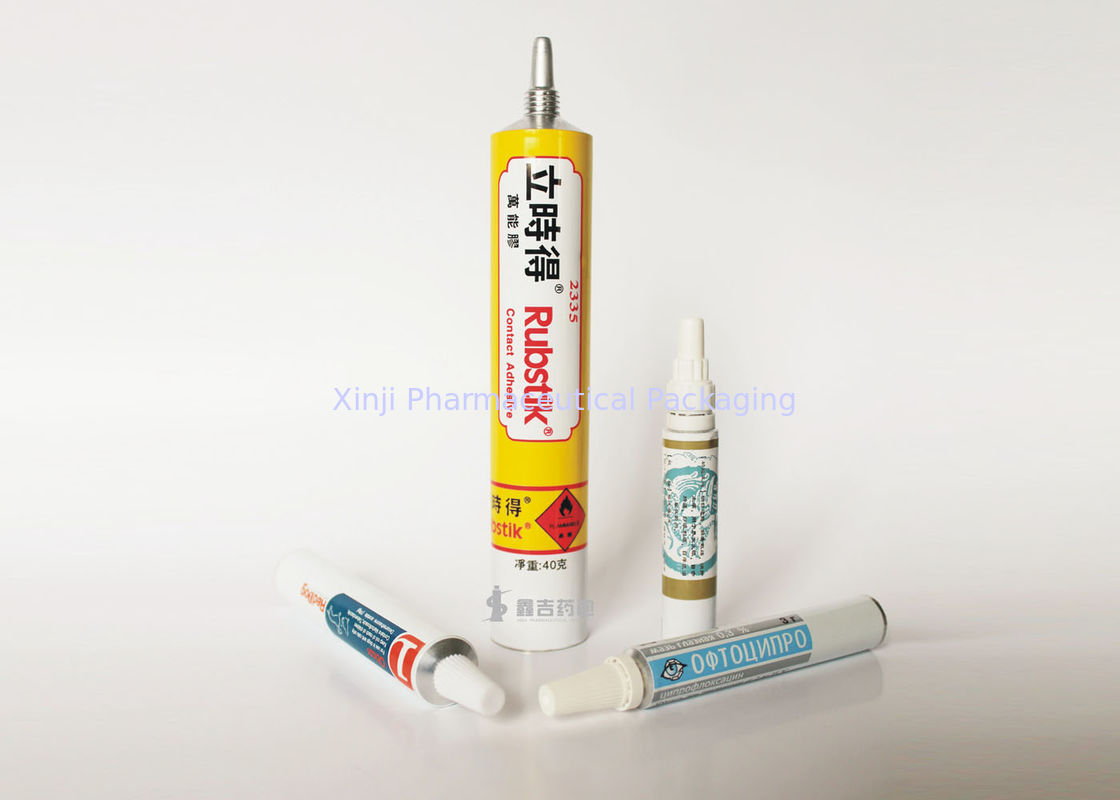

ISO Soft Aluminum Packaging Tubes With Screw Cap 13.5 Mm - 40 Mm Diameter

ISO Soft Aluminum Packaging Tubes With Screw Cap 13.5 Mm - 40 Mm Diameter

ISO Soft Aluminum Packaging Tubes With Screw Cap 13.5 Mm - 40 Mm Diameter

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: Aluminum 99.7% Color: Up To 6 Colors
Name: Collapsible Tubes Packaging Certificate: ISO, CFDA
Artwork: Customized Place Of Origin: China

Toothpaste / Pharmaceutical / Cosmetic , Aluminum Packaging Tubes With Screw Cap


Description


1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel;Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: BS2006-86 Aluminum tube


INSPECTION RECORD
Items Standard Testing Result Conclusion
Component material Aluminum > 99.7% Aluminum > 99.7% Conform
Dimensions and appearance Diameter(mm) 19±0.1 18.95-19.05 Conform
Length(mm) 110±0.3 109.82-110.26 Conform
Wall thickness(mm) 0.11-0.14 0.11-0.14 Conform
Appearance Without deformation, damage Without deformation, damage Conform
Weight of tube 3g 3g Conform
Weight of cap 0.6g 0.6g Conform
Weight of tube with cap 3.6g 3.6g Conform
Cap Dimension 13.2mm(base diameter) 13.2mm(base diameter) Conform
11.5mm(top diameter) 11.5mm(top diameter) Conform
12.3mm(height) 12.3mm(height) Conform
Coating and printing Internal Lacquer Epoxy phenolic Epoxy phenolic Conform
External Lacquer White color matches standard, no exposure, no bubble White color matches standard, no exposure, no bubble Conform
Printing Clear, entirety and in position Clear, entirety and in position Conform
Color Differece According to sample's color variation range According to sample's color variation range Conform
Flexibillity and adhesion The lacquer doesn't split off abd bi crackle The lacquer doesn't split off abd bi crackle Conform
Chemical Stability Wipe 30 times with acetone slightly the lacquer doesn't split off No splitting off Conform
Internal coating Electrical-continuity ≤90 mA ≤32 mA Conform
Chemical Stability Wipe 30 times with acetone slightly the lacquer doesn't split off No splitting off Conform
Annealing malleability test <10mm 7-9 Conform
Closing and sealing test under an air pressure of 0.2Mpa, no leakage No leakage Conform
Latex Uniformity Applied uniformly without thickening and sagging Applied uniformly without thickening and sagging Conform
Micro germ limitation inspection Bacteria <5 item/ml 0 item/ml Conform
Fungi <5 item/ml 0 item/ml Conform
Staphylococcus aureus None None Conform
Pseudomonas aeruginosa None None Conform
Package Wholeness and clean Wholeness and clean Conform
Conclusion Qulified


British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10
±0.1
60
±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165
±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
