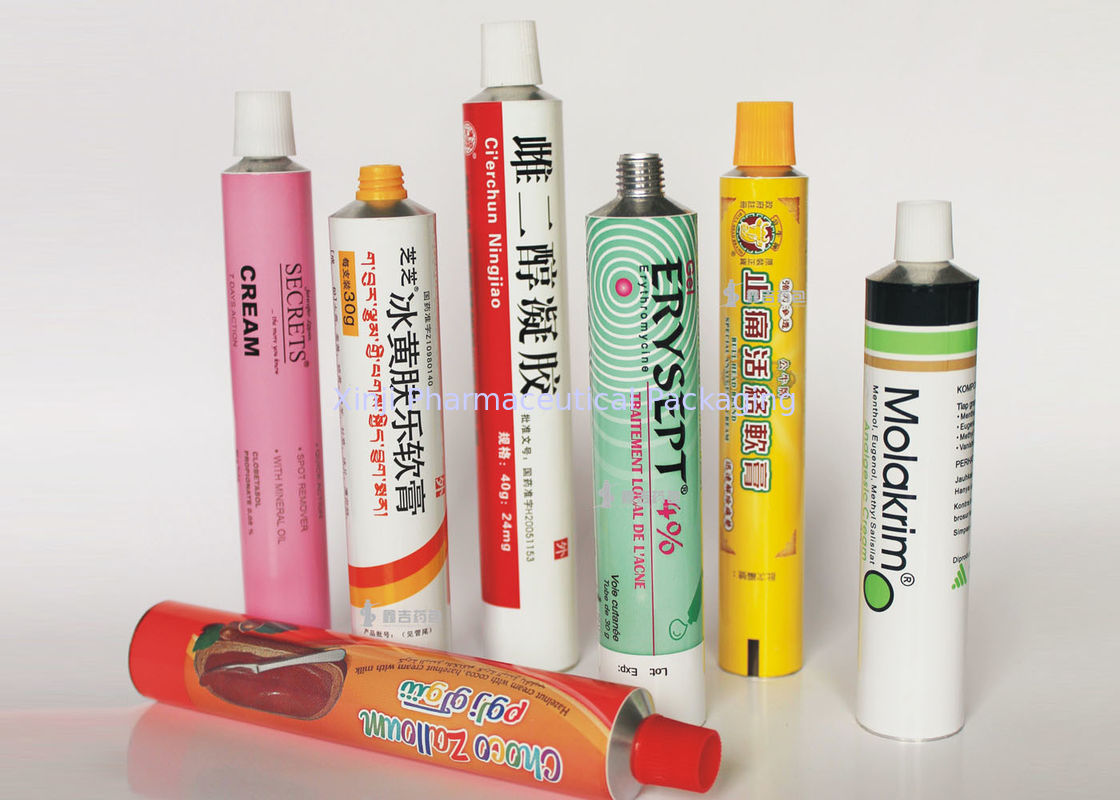

Soft Empty Toothpaste Tubes , Colorful Hand Cream Empty Aluminum Tubes

Soft Empty Toothpaste Tubes , Colorful Hand Cream Empty Aluminum Tubes

Soft Empty Toothpaste Tubes , Colorful  Hand Cream Empty Aluminum Tubes

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: Aluminum 99.7% Purity Color: 6 Colors
Name: Collapsible Aluminum Tubes Packaging Application: Cosmetics, Medicine, Food, Paiting, Etc.
Spec.: Dia 13.5mm - 40mm Place Of Origin: Hubei, China
High Light:

squeeze tube packaging

,

aluminum lotion tubes

Soft Aluminum Tube , Colorful Aluminum Packaging Tubes for Hand Cream / BB Cream / Toothpaste



General Description



1. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.

2. Equipment: Germany PSG fully automatic production line.

3. The standard of Inspection: BS2006-86 Aluminum tube.

4. Closing: Under an air pressure of 0.2Mpa, no leakage.

5. Appearance: Integrity and clean.

6. Coating: The color matches the standard,no exposure and no tiny oil droplets.

7. Color printing: Clear and entirety, the overprint is in position.

8. Flexibility and adhesion: The lacquer did not split off and no crazing.

9. Package: Wholeness and clean.

10. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.

11. Crimp sealant brand: PPG.

12. Aluminum Blamks: Aluminum>99.7% pure.

13. Internal Lacquer: Type-Expoxy-Phenolic Resin.

14. External Base Coat: Type-Enamel;Colour-White.

15. Colour Ink: Suplier-Shanghai DIC.





CERTIFICATE OF ANALYSIS
Test item Standard Testing result conclusion





Dimensions

And

appearance





Diameter(mm) F19± 0.1 19 qualified
  Length (mm) L120± 0.5 120 qualified
  Closing Under an air pressure of 0.2Mpa,no leakage No leakage qualified
  Appearance Integrity and clean Integrity and clean qualified
The coat printing Coating The color matches the standard,no exposure and no tiny oil droplets The color matches the standard,no exposure and no tiny oil droplets qualified
  Color printing Clear and entirety,the overprint is in position Clear and entirety,the overprint is in position qualified
  Color difference Conform to the standard Conform to the standard qualified
Internal coating Continuity(mA) ≤40 10 qualified
  Flexibility and adhesion The lacquer did not split off and no crazing No splitting off and no crazing qualified
  Chemicals Wipe 30 times with acetone,the lacquer did not split off No splitting off qualified
  Type Epoxy Phenolic Resin qualified
Annealing ≤8 mm(No bottom plate) 5 qualified
Sterilization By Ozone in 30 minutes qualified
Microgerm limitation inspection Bacteria <5 item/ml 0 item/ml qualified
  Tungi <5 item/ml 0 item/ml qualified
  Inaurate staphy None None qualified
  Aerugo pseudomonad None None qualified
Package Wholeness and clean Wholeness and clean qualified



Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(ml)
4.5

7
7

12
14

24
20

35
30

55


Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle



FAQ:



1. Are you trading company or manufacturer?

We are the 3rd largest manufacturer in this industry in China.

2. How to get samples?

Samples without customized printing are free, but do not pay the cost of freight.

3. How long is your delivery time?

Generally it is 30 days after we sign the contract, it is according to quantity.

4. What's your payment term?

T/T, L/C, Western Union, etc.



British Standard of Aluminum Collapsible Tube                         BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle
