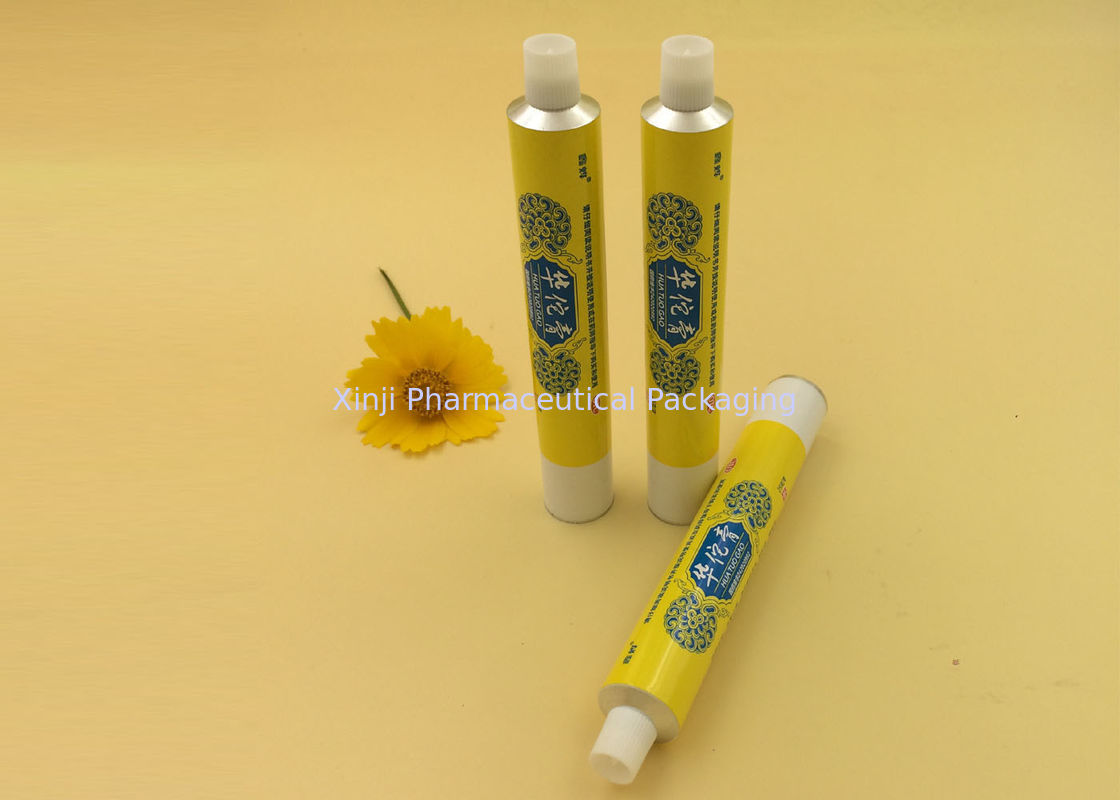

Printed Medicine Tube Packaging Dia 13.5 Mm - 40 Mm 3ml - 200ml Tube Capacity

Printed Medicine Tube Packaging Dia 13.5 Mm - 40 Mm 3ml - 200ml Tube Capacity

Printed Medicine Tube Packaging Dia 13.5 Mm - 40 Mm 3ml - 200ml Tube Capacity

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: > 99.7% Purity Aluminum Color: Up To 6 Colors
Name: Pharmaceutical Packaging Tube Diameter: 13.5mm - 40mm
Capacity: 3ml - 200ml Standard: BS2006-86
High Light:

aluminum squeeze tube packaging

,

mini squeeze tubes

Printed Dia 13.5mm - 40mm Medicine Tube , Pharmaceutical Packaging Tube



Quick Details:



Aluminum Slugs Aluminum>99.7% pure.
Internal Lacquer Type-Epoxy Phenolic Resin.
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the end Optional
Color Ink up to 6 colors, Supplier-Shanghai DIC.
CAP Color-white/red/blue/yellow; material-HPPE.
Manufacturing Environment 100000-ton cleaning production packing workshop.
Equipment Germany PSG fully automatic production line.
The standard of Inspection in accordance with British Standard BS2006-86.



Company Brief Introduction:



1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.

2. Established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.

3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.

4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle



Xinji Tube, across half a century, after two generations, never stop explorating of technology and promising of quality. There are many talented people in the State of Chu, especially in this place. Diligent and interligent Xinji persons produce tubes in a spirit of craftsman, promoting the Chu culture widely! So let the world know about the broad and profound Chinese civilisation!



FAQ:


1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
