Home ProductsAluminum Squeeze Tubes

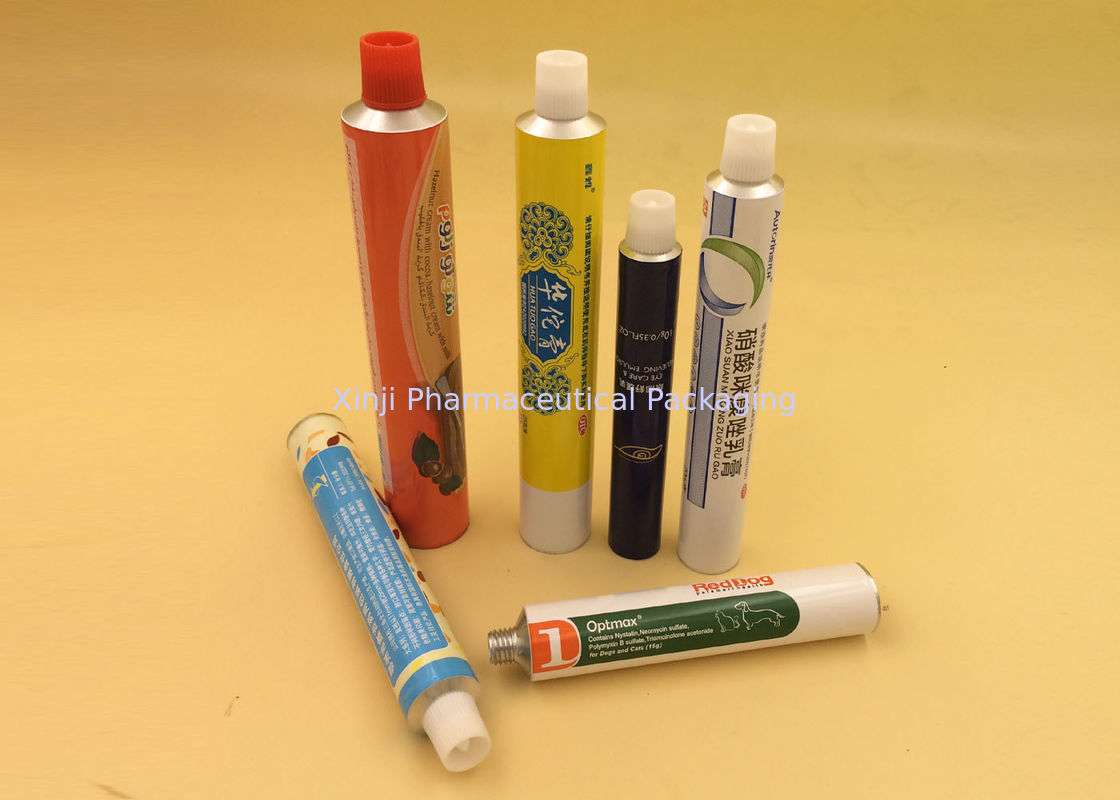

30g Aluminum Squeeze Tubes 135mm Length M9 Membrane Thread 22 Mm Diameter

30g Aluminum Squeeze Tubes 135mm Length M9 Membrane Thread 22 Mm Diameter

30g Aluminum Squeeze Tubes 135mm Length M9 Membrane Thread 22 Mm Diameter

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia.13.5mm~Dia40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Diameter: 22 Volume: 30g
Thread: M9 With Membrane Artwork: Customized
Name: Aluminum Tube For Medicine Ointment Length: 135mm

Aluminum Soft Tube For Medicine Ointment , Aluminum Squeeze Tubes , 30g





Quick Details:





Aluminum collapsible Tube Specification sheet
Fill Volume Suggested Tube Size(diameter&height)
2-5ml Dia11mm*H55mm, Dia13.5mm*H70mm,
5-12ml Dia13.5mm*H70mm, Dia16mm*H100mm,
19-25ml Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request
35-50ml dia25mm
60-80ml dia30ml,32ml
125-150ml dia32ml,35ml
150-200ml dia35mm,40mm



Tube Size Dia22mm* Length 135mm (length can customize)
Tube Capacity 35 g
Aluminum Slug Aluminum>99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Nozzle Thread nozzle
Cap Color-white/red/blue/yellow; material-HPPE
Standard BS2006




Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(mm)
4.5

7
7

12
14

24
20

35
30

55





Why Choose us


1. More than 40 years experience in packaging design, develop and manufacture.
2. Strong R&D team, customized-products are highly welcomed.
3. 100% QC inspection before delivery, high quality with very competitive price.
4. 90% of our products are exporting to oversea market, top service and timely delivery.





Products details:



We introduced several sets of production lines from PSG of German and Technopack of Italy, and equipped with technique of the mark one take on top sealed and tube shoulder, three take on internal coating, six colors printing and the latex at the end, etc which can meet requirements of kinds tube appearance for customers.
