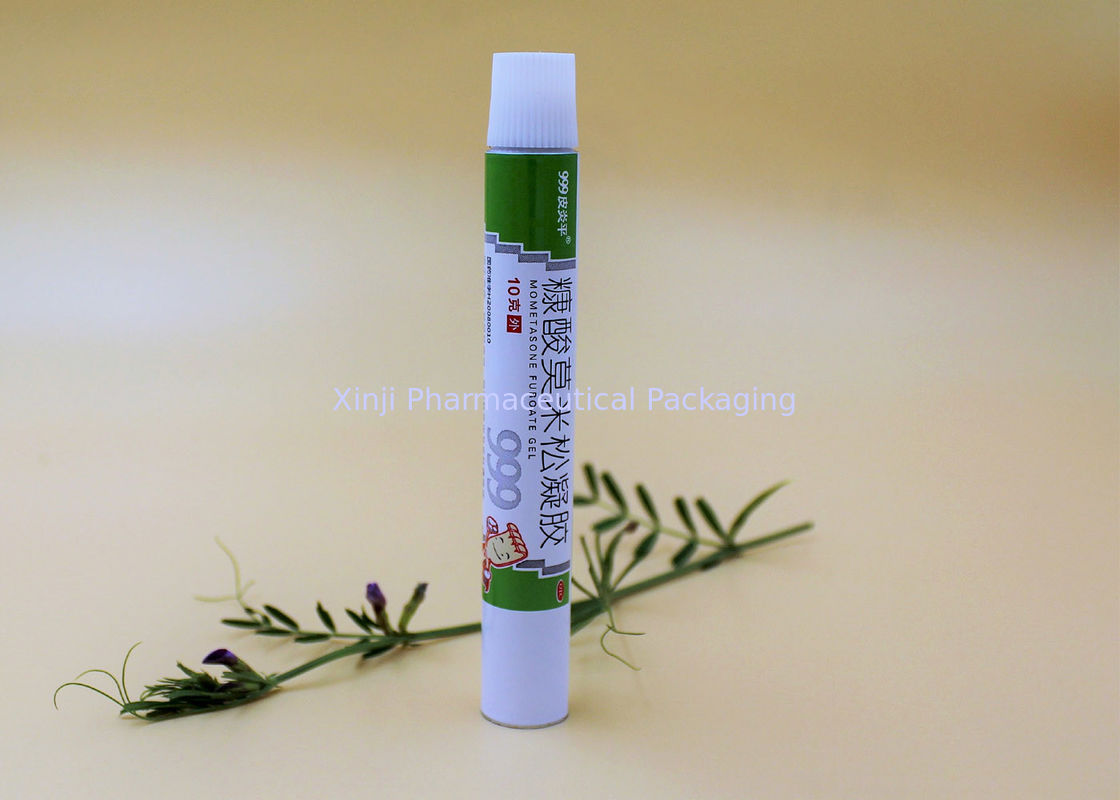

Aluminum Medicine Tube 13.5 Mm - 40 Mm Diameter BS2006-86 Standard

Aluminum Medicine Tube 13.5 Mm - 40 Mm Diameter BS2006-86 Standard

Aluminum Medicine Tube 13.5 Mm - 40 Mm Diameter BS2006-86 Standard

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: > 99.7% Purity Aluminum Color: Up To 6 Colors
Name: Aluminum 15g Medicine Tube Diameter: 13.5mm - 40mm
Certificate: ISO, CFDA Standard: BS2006-86

Aluminum 15g Medicine Tube , Cream Medicine Tube , Ointment Medicine Tube



Quick Details:


1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.



Company Brief Introduction:



1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.

2. Established in 1981 with nearly 40 years' experience in aluminum collapsible tube manufacturing.

3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every aluminum collapsible tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.

4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Advantage of Aluminum Pharmaceutical Tube Packaging:



* TAMPER-PROOF: Makes adulteration impossible. Cannot be re-filled or re-used.

* PROTECTIVE: Contents remain well protected and free from contamination.

* ELEGANT: Attractive Possess a bright surface and lend themselves to trouble-free printing, this enhances shelf and customer appeal.

* NON-TOXIC & HYGIENIC: Non -Toxic, hygienic, non-absorbent, Impart no * LIGHTWEIGHT: Easy to handle. Reduces transport and handling cost.

* COMPLETE COLLAPSIBILITY: Highly ductile, ensures complete collapsibility.

* EASY AVAILABILITY: Aluminum Collapsible Tubes are easily available.

* ECONOMICAL: Costs less than Tin or lead tubes. Needs no varnish.

* USER CONVENIENCE: Easy to use, unbreakable, easy to carry, light in weight



Advantages:



1. Scale. Top 3 manfuacturer of aluminum collapsible tubes in whole China, with annual capacity of 300 million pcs.

2. Experience. Nearly 40 years' accumulated specialized producing experience in this field.

3. Production Lines. Full automatic production lines from Germany and Italy.

4. Quality. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.

5. Price. Factory direct sells, offering you the most competitive price!

6. Service. Quick response on quotation, sample and after-service.



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle
