Home ProductsAluminium Collapsible Tubes

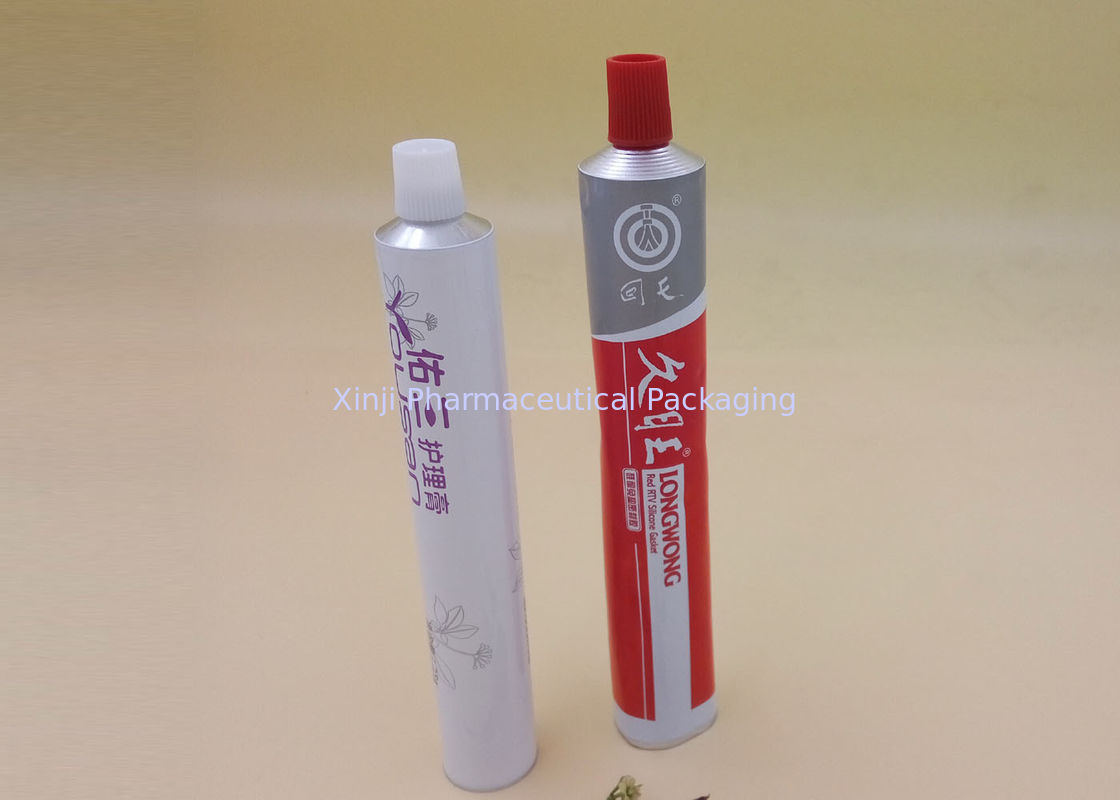

Colorful Printing Aluminium Collapsible Tubes Diameter 16/ 19 / 22 / 25mm

Colorful Printing Aluminium Collapsible Tubes Diameter 16/ 19 / 22 / 25mm

Colorful Printing Aluminium Collapsible Tubes Diameter 16/ 19 / 22 / 25mm

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: Aluminum 99.7% Color: 6 Colors
Name: Soft Aluminum Tubes Diameter: 13.5mm~40mm
Application: Cosmetics, Medicine, Food, Etc. Factory Direct: YES

Colorful Printing Diameter 16mm 19mm 22mm 25mm Alumminum Collapsible Tubes Metal Printing



Description:



Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum collapsible tube manufacturing.





British Standard of Aluminum Collapsible Tube                      BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Diameter(mm) Length suggest(mm)
13.5mm 50-90mm
16mm 80-100mm
19mm 80-130mm
22mm 80-130mm
25mm 100-140mm
28mm 130-175mm
30mm 140-175mm
32mm 150-190mm
35mm 160-200mm
38mm 160-200mm
40mm 160-200mm



Our Service:



We can deliver free samples if you need. Please feel free to contact us or email us.

It would be our great honor to send you some free samples for your quality test.

We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.

1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.



Quality control department is the special independent unit to ensure that meet customer needs in terms of quality, adopt international testing standards and methods, continue to upgrade testing equipment to maintain the accuracy of test results, establish a zero-defect quality management philosophy: identification of customer needs correctly, to ensure adequate staff training, new product development, cjamhe control and product testing and quality.



Company culture:


Business philosophy: Meticulously manufacture, different for you.
Quality policy: Make every aluminum collapsible tube trustworthy
Xinji core values: love, responsibility, change, happy
