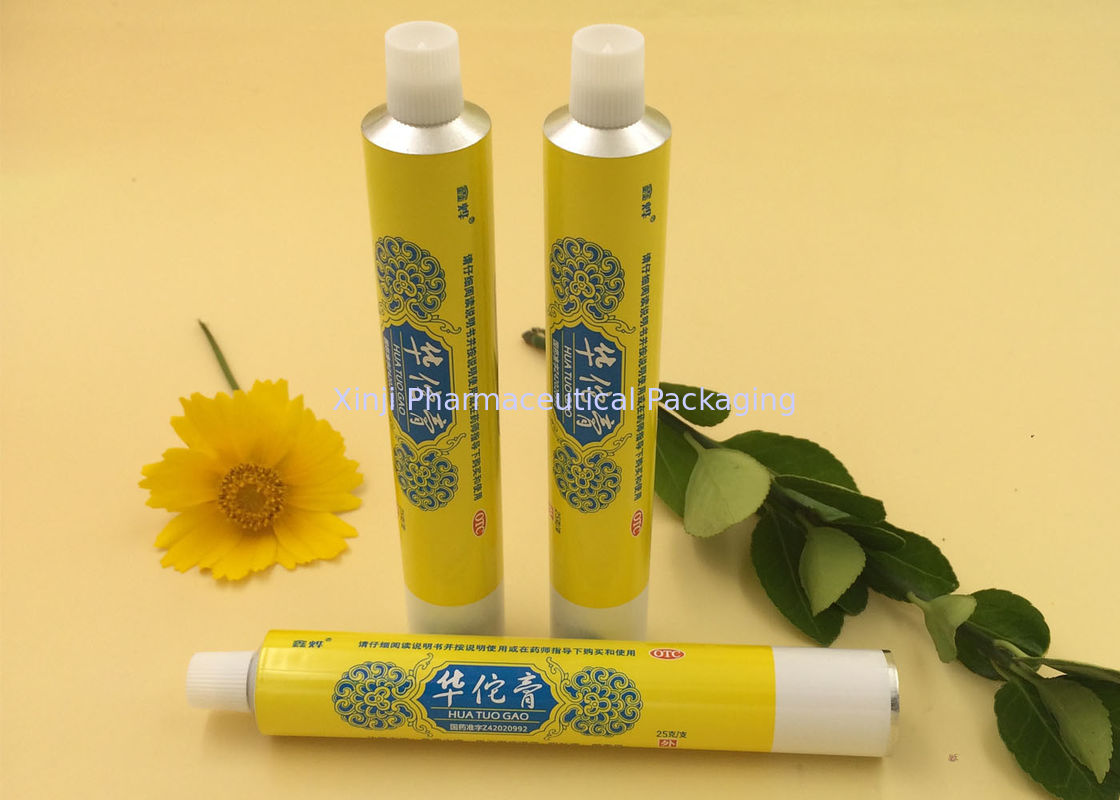

Printed Collapsible Travel Squeeze Tube , 3 - 200ml Volume Package Tube

Printed Collapsible Travel Squeeze Tube , 3 - 200ml Volume Package Tube

Printed Collapsible Travel Squeeze Tube , 3 - 200ml Volume Package Tube

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Aluminum: > 99.7% Purity Color: Up To 6 Colors
Name: Printed Pharma Tube Samples: Available, Free
Diameter: 13.5mm - 40mm Factory Direct: Yes

3 - 200ml Printed Pharma Tube , Ointment Aluminum Packaging Tube



Nozzle Opening: Open end, membrane (close end)
Nozzle Type: Standard round nozzle, large orifice nozzle, elongated nozzle
Shoulder Type: Plain shoulder, shoulder with tactile warning of danger (3-dot symbol or 5-triangle symbol)
Internal Lacquer: Plain or double lacquer with epoxy phenolic resin
Base Coating: In white or a custom color
Shoulder Coating: Not available
Surface Printing: Up to 4-color offset print on tubes with client's logo and design. Hot stamping foil gold, silver or pearl white is also available.
Latex Lining Latex bands of custom width from tube base to prevent leakage.
Capping: Caps are available in different styles and in different colors. Flowerpot (snip tip top), rounded, angular, flat top, stiple top, piercer (cap with puncture point), stand-up (smooth, full-width), flip-top (natural dispensing cap with snap-top), concave top, tamper-proof, etc.


1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.





British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Advantages:



Quality All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
Price Factory direct sells, offering you the most competitive price!
Service Quick response on quotation, sample and after-service.
Experience Nearly 40 years' accumulated producing experience in this field.
Production Lines Full automatic production lines from Germany and Italy.





Size: 16 mm DIA x 80 mm L
Capacity/Volume: 10 ml
Packaging: Bulk pack. Tubes are packed in corrugated cardboards, with or without partitions.
Minimum Order Quantity: 10,000 pieces per variant
Delivery: 25 days after confirming order
Company Certificates:

ISO9001:2008 Quality Management System

Pharmaceutical Packaging Certificate issued by CFDA

Production Capacity: 300millions pieces per year
