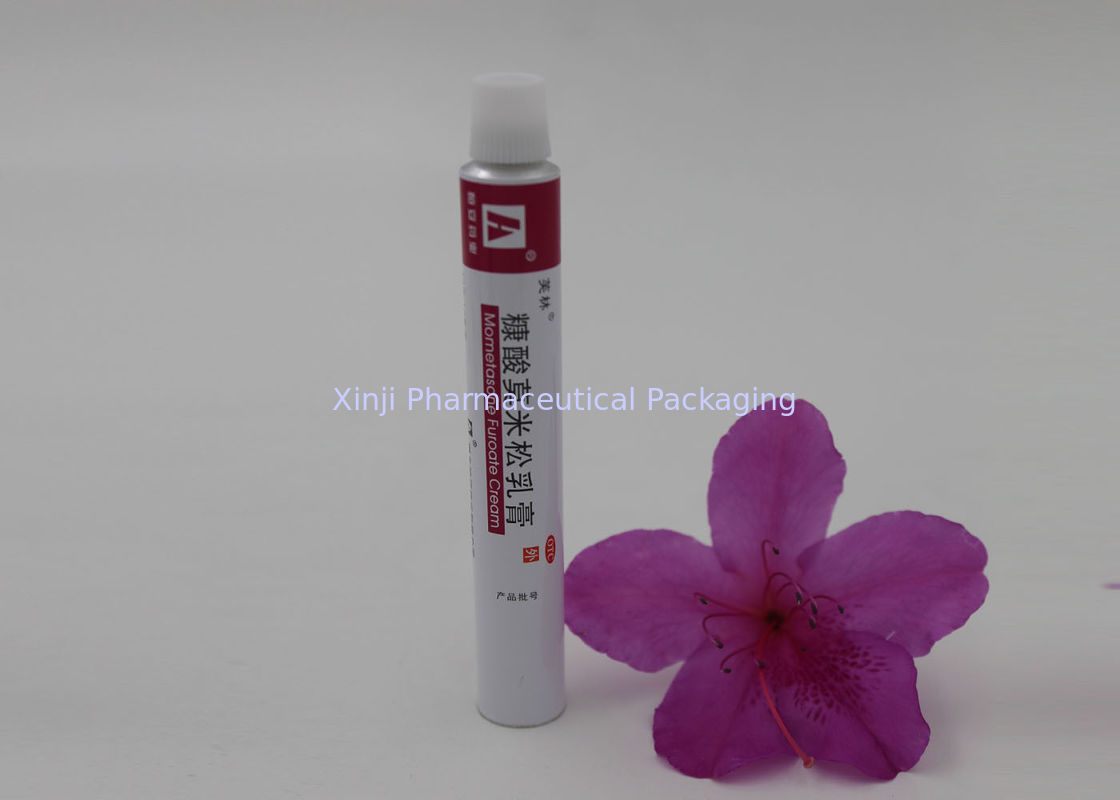

Aluminum Packaging Pharma Tube For Ointment Cream Optional End Latex

Aluminum Packaging Pharma Tube For Ointment Cream Optional End Latex

Aluminum Packaging Pharma Tube For Ointment Cream Optional End Latex

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Aluminum: > 99.7% Purity Color: Up To 6 Colors
Name: Aluminum Packaging Pharma Tube Diameter: 13.5mm - 40mm
Capacity: 3ml - 200ml Application: Packaging Tube For Ointment Cream

Aluminum Packaging Pharma Tube , Medicine Packaging Tube for Ointment Cream





CERTIFICATE OF ANALYSIS
Test item Standard Testing result conclusion





Dimensions

And

appearance





Diameter(mm) F19± 0.1 19 qualified
  Length (mm) L120± 0.5 120 qualified
  Closing Under an air pressure of 0.2Mpa,no leakage No leakage qualified
  Appearance Integrity and clean Integrity and clean qualified
The coat printing Coating The color matches the standard,no exposure and no tiny oil droplets The color matches the standard,no exposure and no tiny oil droplets qualified
  Color printing Clear and entirety,the overprint is in position Clear and entirety,the overprint is in position qualified
  Color difference Conform to the standard Conform to the standard qualified
Internal coating Continuity(mA) ≤40 10 qualified
  Flexibility and adhesion The lacquer did not split off and no crazing No splitting off and no crazing qualified
  Chemicals Wipe 30 times with acetone,the lacquer did not split off No splitting off qualified
Annealing ≤8 mm(No bottom plate) 5 qualified
Sterilization By Ozone in 30 minutes qualified
Microgerm limitation inspection Bacteria <5 item/ml 0 item/ml qualified
  Tungi <5 item/ml 0 item/ml qualified
  Inaurate staphy None None qualified
  Aerugo pseudomonad None None qualified
Package Wholeness and clean Wholeness and clean qualified



Advantages:



* All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.

* Factory direct sells, offering you the most competitive price!

* Quick response on quotation, sample and after-service.

* Top 3 manfuacturer of collapsible aluminum tubes in whole China, with annual capacity of 300 million pcs.

* Nearly 40 years' accumulated specialized producing experience in this field.

* Full automatic production lines from Germany and Italy.



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Our Service:



1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.
