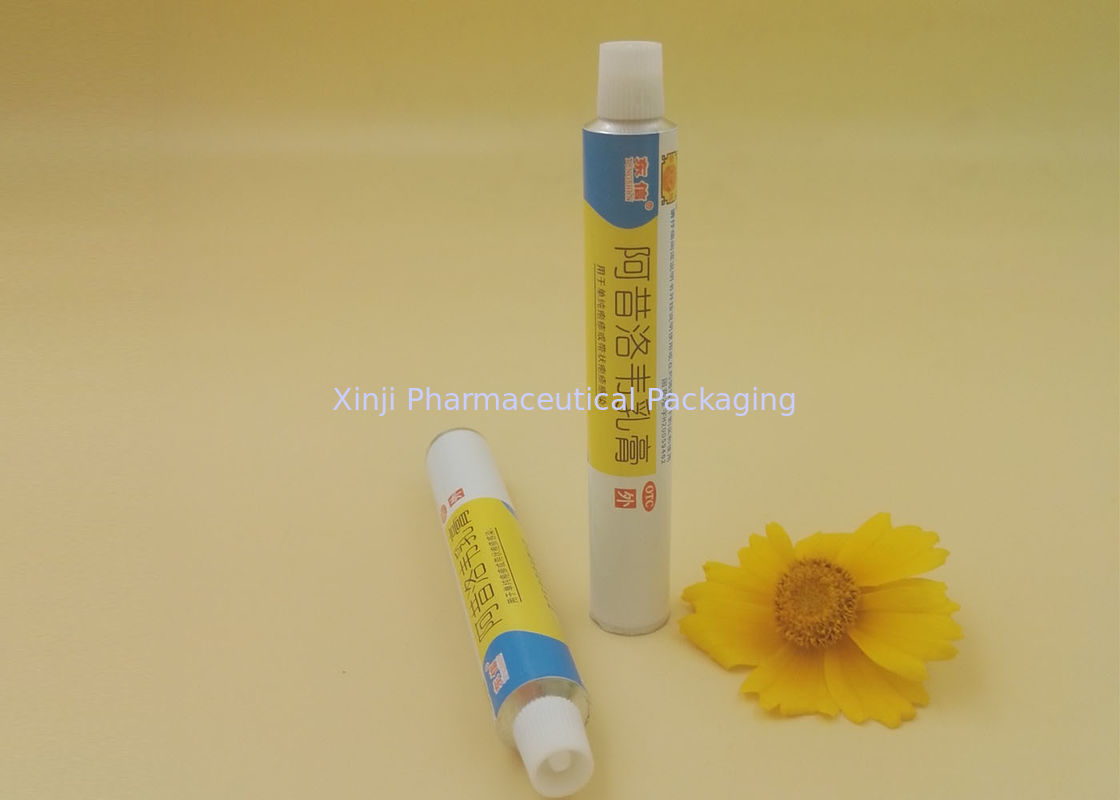

30g Pharma Tube Custom Colorful Printed BS2006-86 Standard HPPE Cap

30g Pharma Tube Custom Colorful Printed BS2006-86 Standard HPPE Cap

30g Pharma Tube Custom Colorful Printed BS2006-86 Standard HPPE Cap

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Aluminum: > 99.7% Purity Color: Up To 6 Colors
Name: Empty Collapsible Medicine Tube Diameter: 13.5mm - 40mm
Standard: BS2006-86 Sample: Free

Colorful Printed Aluminum 30g Pharma Tube Empty Collapsible Medicine Tube



Main Features:



Tube Diameter Dia 13.5mm - 40mm (length can customize)
Tube Capacity 3-200ml
Aluminum Slug Aluminum>99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Cap Color-white/red/blue/yellow; material-HPPE



Useage Pharmaceutical, cosmetic, food, adhesive packaging, etc.
CAP Colour-white/red/blue; Type-Conual Piercer; material-HPPE.
Aluminum Blamks Aluminum>99.7% pure.
Internal Lacquer Type-Expoxy-Phenolic Resin.
External Base Coat Type-Enamel;Colour-White.
Colour Ink Suplier-Shanghai DIC.
Crimp sealant brand PPG.
Manufacturing Environment The construction of 100000-ton cleaning production packing workshop.
The standard of Inspection BS2006-86 Aluminum collapsible tube for medicine ointment.
Closing Under an air pressure of 0.2Mpa,no leakage
Appearance Integrity and clean
Coating The color matches the standard,no exposure and no tiny oil droplets
Color printing Clear and entirety,the overprint is in position
Flexibility and adhesion The lacquer did not split off and no crazing
Chemicals Wipe 30 times with acetone,the lacquer did not split off
Package Wholeness and clean



Company Brief Introduction:



1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.



2. Established in 1981 with nearly 40 years' experience in aluminum soft tube manufacturing.



3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.



4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.





British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



FAQ:


1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
