Home ProductsMedicine Tube

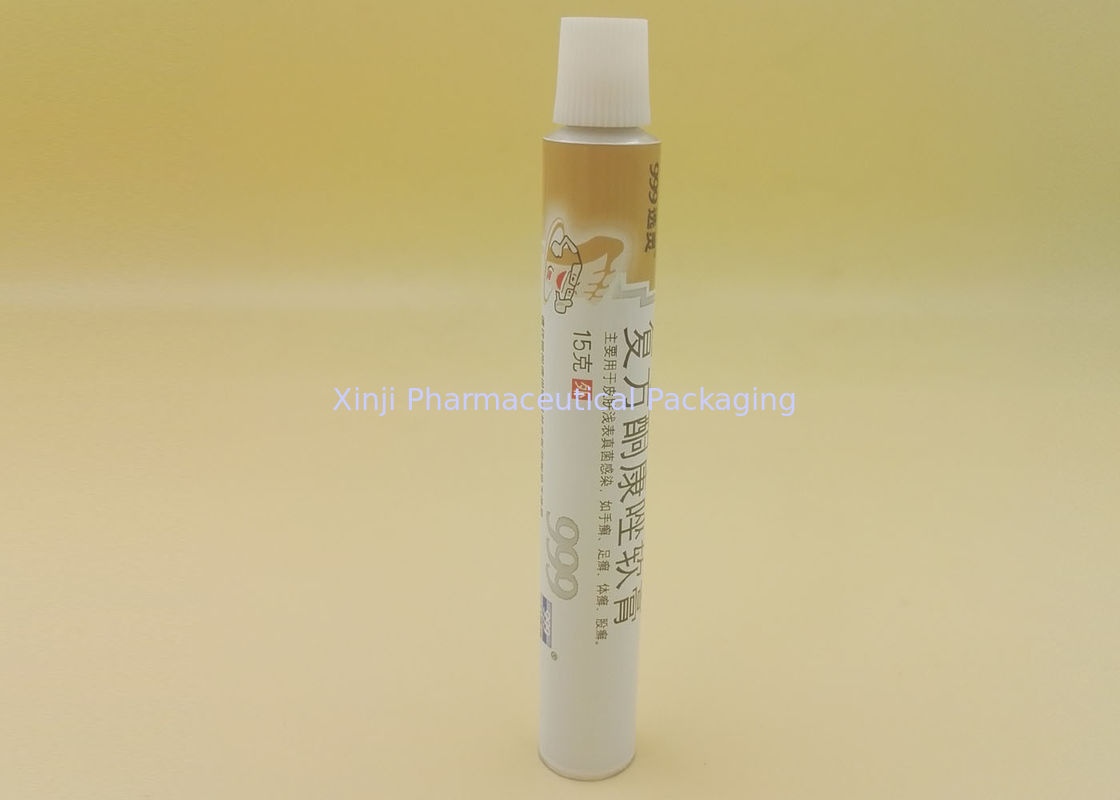

20 Gram Empty Medicine Tube Packaging 99.7% Purity Aluminum Material

20 Gram Empty Medicine Tube Packaging 99.7% Purity Aluminum Material

20 Gram Empty Medicine Tube Packaging 99.7% Purity Aluminum Material

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Raw Material: > 99.7% Purity Aluminum Name: Collapsible Tube For Medicine Packaging
Volume: 3ml - 200ml Diameter: 13.5mm - 40mm
Color: Up To 6 Colors Printing Sample: Available, Free

20g Empty Medicine Tube , Aluminum Collapsible Tube for Medicine Packaging



Quick Details:


1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Advantages:



1. Scale. Top 3 manfuacturer of aluminum collapsible tubes in whole China, with annual capacity of 300 million pcs.



2. Experience. Nearly 40 years' accumulated specialized producing experience in this field.



3. Production Lines. Full automatic production lines from Germany and Italy.



4. Quality. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.



5. Price. Factory direct sells, offering you the most competitive price!



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle



FAQ:


1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
