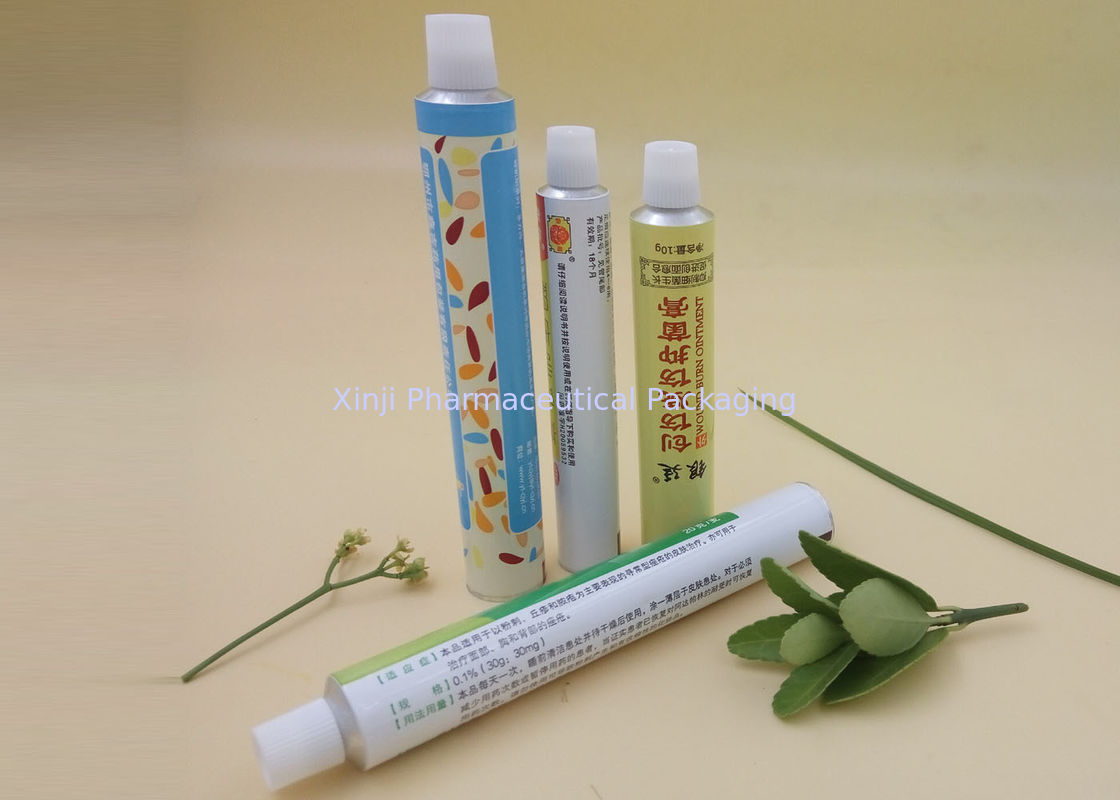

Cream / Gel Aluminum Squeeze Tube Packaging , 30ml Collapsible Laminated Tubes

Cream / Gel Aluminum Squeeze Tube Packaging , 30ml Collapsible Laminated Tubes

Cream / Gel Aluminum Squeeze Tube Packaging , 30ml Collapsible Laminated Tubes

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia.13.5mm~Dia40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Volume: 30ml Thread: Membrane, M9
Artwork: 6 Colors Name: Cream And Gel Packaging For Pharmaceutical
Length: Customized Material: Aluminum
Latex: Optional

Cream And Gel Packaging For Pharmaceutical , Aluminum Squeeze Tube



Quick Details:



Sheet3 Size Standard
Diameter Tolerance of Diameter Length Tolerance of Length Nozzle Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10 ±0.1 60 ±0.5 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165 ±1.0 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5




Why Choose us


1. More than 40 years experience in packaging design, develop and manufacture.
2. Strong R&D team, customized-products are highly welcomed.
3. 100% QC inspection before delivery, high quality with very competitive price.
4. 90% of our products are exporting to oversea market, top service and timely delivery.



Application of Aluminum Collapsible Tube
Product Type Contents
Health caring eye cream,body lotion,shaving cream,foot cream,toothpaste,hand cream
Medicine unguent,medical cream,gel
Adhesive Glue super glue,rubber cement,leather adhesive,resin,wood glue,epoxy glue,metal glue,sealant
Industrial Grease brake grease,silicone-based grease,sewing machine lubricating oil,gear grease,red rubber grease,lithium-based grease
Cosmetics eyeliner,lip balm,hair dressing cream,nail beauty products,mascara
