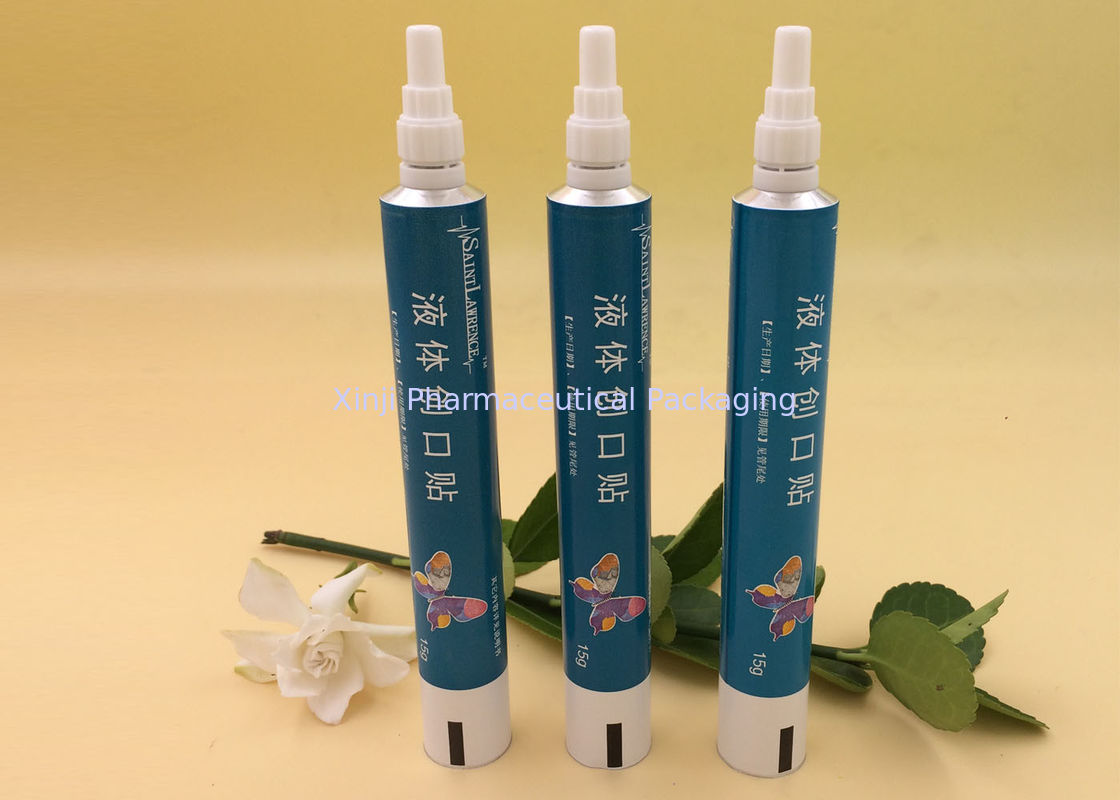

Dia 25mm Aluminum Squeeze Tube Packaging Enamel External Base Coat

Dia 25mm Aluminum Squeeze Tube Packaging Enamel External Base Coat

Dia 25mm Aluminum Squeeze Tube Packaging Enamel External Base Coat

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Raw Material: > 99.7% Purity Aluminum Name: Collapsible Cream Tubes
Capacity: 3ml - 200ml Color: Max 6 Colors
Length: Can Customize Sample: Free

Dia 25mm Aluminum Ointment Tubes Medicine Packaging Collapsible Cream Tubes



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Coating The color matches the standard,no exposure and no tiny oil droplets
Color printing Clear and entirety,the overprint is in position
Color difference Conform to the standard
Continuity(mA) ≤40
Flexibility and adhesion The lacquer did not split off and no crazing
Chemicals Wipe 30 times with acetone,the lacquer did not split off





Custom design available, OEM/ODM welcomed !



Our tubes mainly used for medicine, adhesive, tooth paste, eye ointment, hand cream, facial milk and some food packaging, etc.



The normal round tube, oval tube and super flat tube are available here, diameter ranges from 13.5mm, 16mm, 19mm, 22mm, 25mm, 30mm, 35mm, 40mm, with the capacity 5ml to 200ml accordingly.

There are 1-6 colors offset printings here, The cap is also made with various choices, such as screw cap, flip cap, etc.

Should you have any questions or needs, please contact us freely, we will take every effort to offer you the best service.
