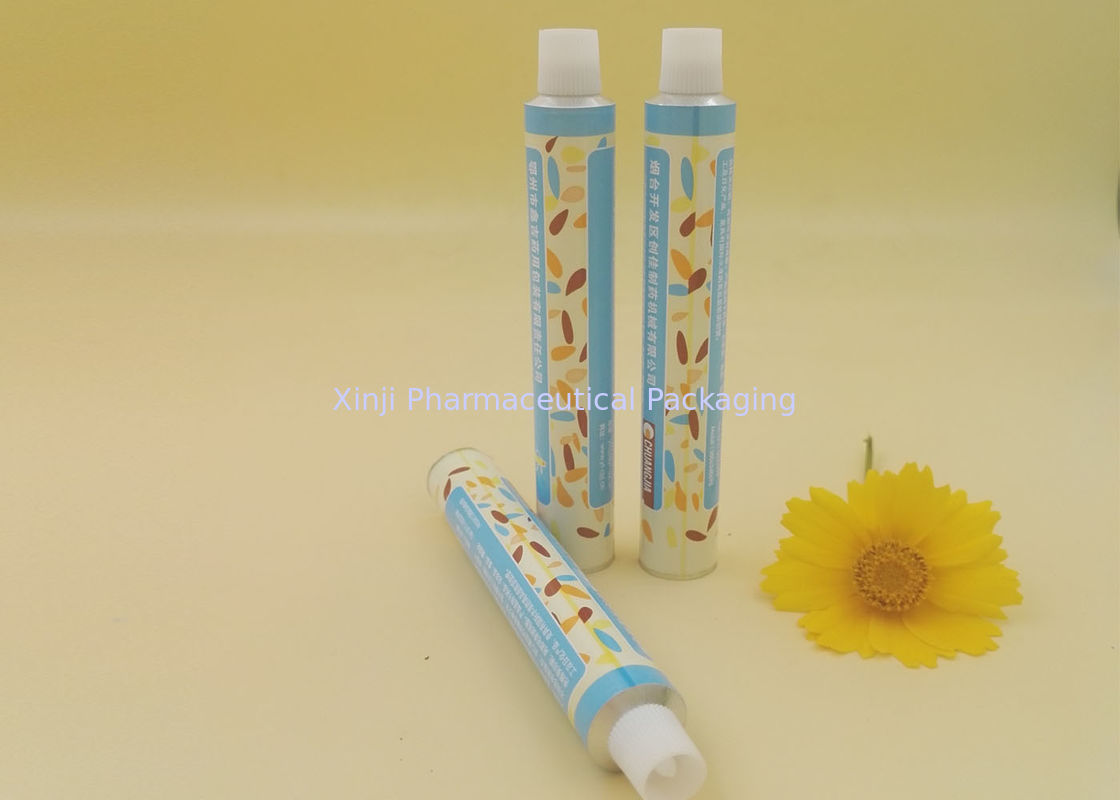

Empty Aluminum Ointment Tubes For Pharmaceutical Packaging 3ml - 200ml Capacity

Empty Aluminum Ointment Tubes For Pharmaceutical Packaging 3ml - 200ml Capacity

Empty Aluminum Ointment Tubes For Pharmaceutical Packaging 3ml - 200ml Capacity

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Raw Material: > 99.7% Purity Aluminum Name: Pharmaceutical Packaging Aluminum Tube
Capacity: 3ml - 200ml Color: Max 6 Colors
Diameter: 13.5mm - 40mm Standard: BS2006-86
High Light:

squeeze tubes for lotion

,

ointment packaging

Customized Empty Aluminum Ointment Tubes , Pharmaceutical Packaging Aluminum Tube



Detailed Description:



Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum collapsible tube manufacturing.



We are the 3rd largest manufacturer of aluminum collapsible tube industry. Our tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.



1. Our Aluminum tubes are made of high quality aluminum for tube and high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.

2. The volume can be from 3ml to 200ml. The volume can be adjusted by choosing different diameter and differnt length of the tube. We can meet all sizes according to customer's requirement.

3. The diameter of the tube can be from 13.5mm to 40mm. This is subject to customer's choosing. Or we will suggest the size for customers.

4. Printing is offseting printing with max. 6 colors.

5. The normal screw cap,and special shape caps are available to select. The cap can also be with different colors.

6. The top is unbreaken dsealing.

7. The end of the tube is opened.

8. We can print and design according to your idea and artwork.



Diameter Dia 13.5mm-40mm
Capacity 3ml-200ml
Length adjusted within the range of tube capacity (3ml to 200ml)
Layer mono-layer to five layers tube
Shape round,oval,super flat
Tube color white, transparent,colored
Printing 1-6 colors printing
Cap Flip top cap, screw on cap
Usage Cosmetic, Pharmaceutical, Health & Beauty industries
Packaging card board tray and carton with plastic bag inside



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.
