Home ProductsAluminum Ointment Tubes

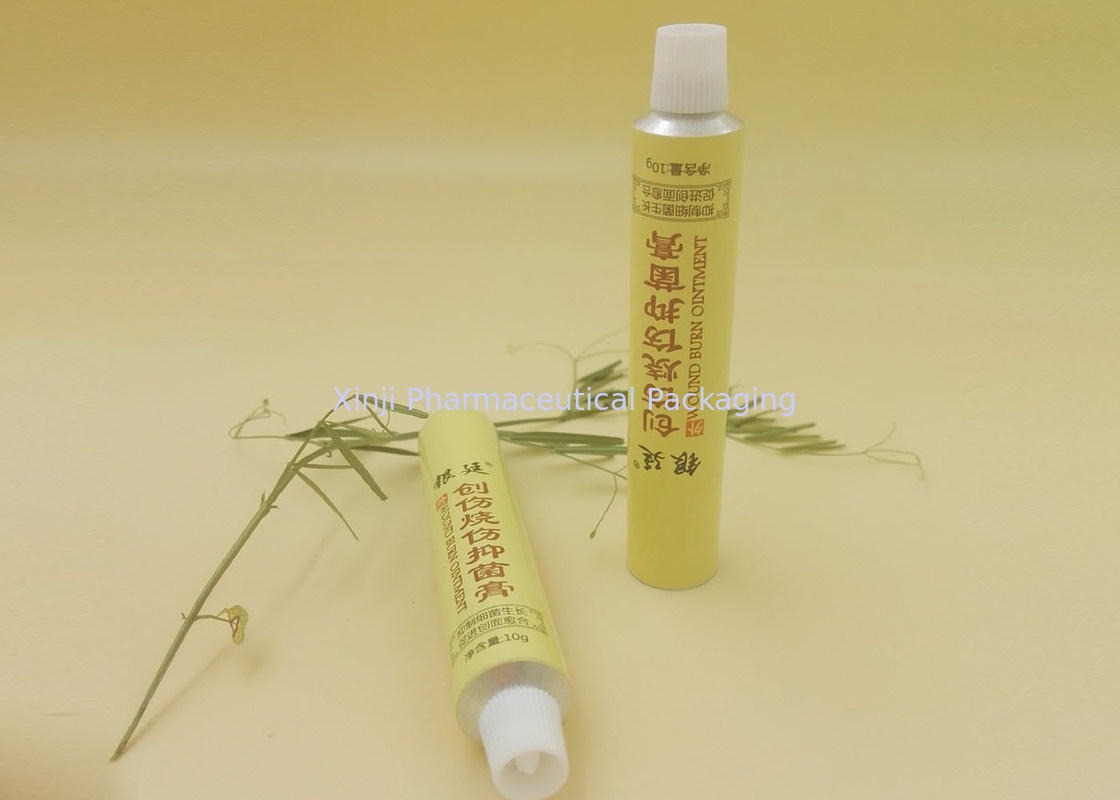

30g Printed Tube Packaging , Empty Metal Squeeze Tubes Dia 13.5mm - 40mm

30g Printed Tube Packaging , Empty Metal Squeeze Tubes Dia 13.5mm - 40mm

30g Printed Tube Packaging , Empty Metal Squeeze Tubes Dia 13.5mm - 40mm

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Aluminum: > 99.7% Purity Name: Empty Ointment Tube
Color: Up To 6 Colors Capacity: 3ml - 200ml
Standard: BS2006-86 Certificate: ISO, CFDA

Printed 30g Aluminum Ointment Tubes , Empty Ointment Tube with Dia 13.5mm - 40mm



Details:



Diameter Dia 13.5mm-40mm
Capacity 3ml-200ml
Length adjusted within the range of tube capacity (3ml to 200ml)
Layer mono-layer to five layers tube
Shape round,oval,super flat
Tube color white, transparent,colored
Printing 1-6 colors printing
Cap Flip top cap, screw on cap
Usage Cosmetic, Pharmaceutical, Health & Beauty industries
Packaging card board tray and carton with plastic bag inside


1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.



Advantages:



Quality All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
Price Factory direct sells, offering you the most competitive price!
Service Quick response on quotation, sample and after-service.
Experience Nearly 40 years' accumulated producing experience in this field.
Production Lines Full automatic production lines from Germany and Italy.



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
