Home ProductsAluminum Ointment Tubes

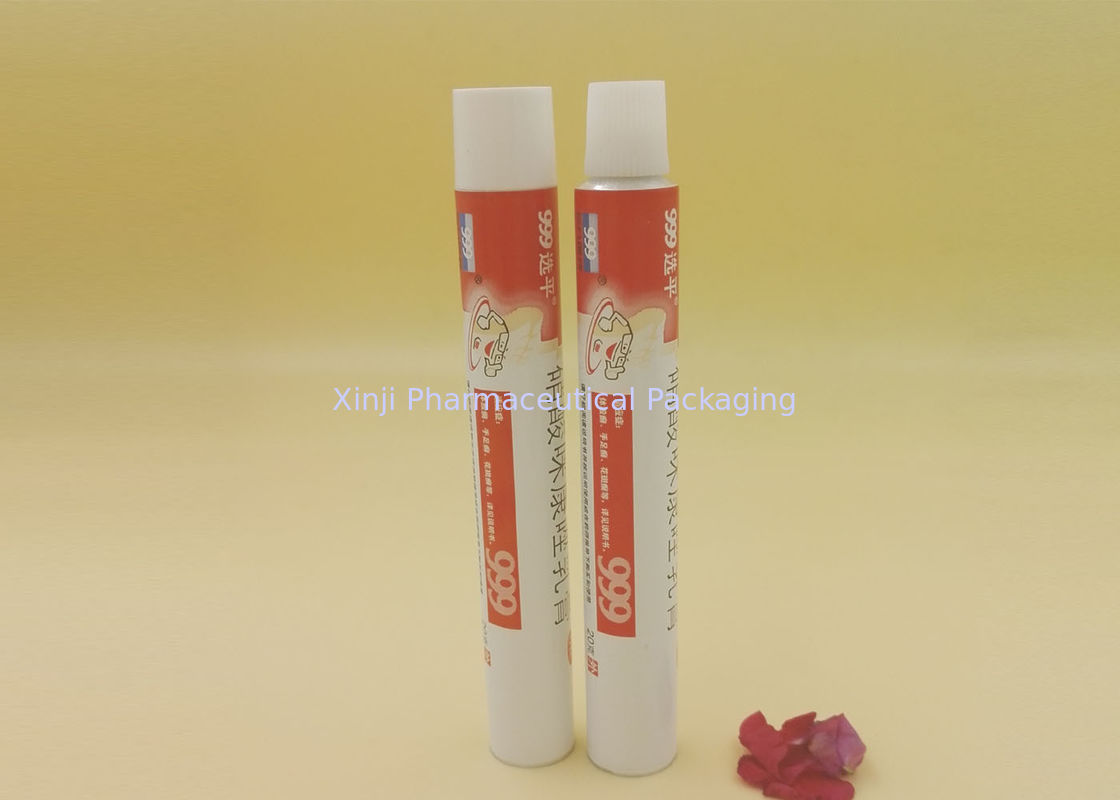

50ml Collapsible Aluminium Tubes For Parmaceutical Medicine Packaging

50ml Collapsible Aluminium Tubes For Parmaceutical Medicine Packaging

50ml Collapsible Aluminium Tubes For Parmaceutical Medicine Packaging

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Aluminum: > 99.7% Purity Name: Medicine Aluminum Packaging Tubes
Printing: Up To 6 Colors Capacity: 3ml - 200ml
Diameter: 13.5mm - 40mm Standard: BS2006-86

50ml Pharmaceutical Aluminum Ointment Tubes Medicine Aluminum Packaging Tubes



Detailed Description:



Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum tube manufacturing.



Our factory now has 8 production lines in total , including 3 European lines (2 from PSG and 1 from Technopack) , with annual production capacity 300 million aluminum tubes. We are the TOP3 manufacturer in Collapsible Aluminum Tube filed in China.



1. Our Aluminum tubes are made of high quality aluminum for tube and high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.

2. Printing is offseting printing with max. 6 colors.

3. The normal screw cap,and special shape caps are available to select. The cap can also be with different colors.

4. The top is unbreaken dsealing.

5. The end of the tube is opened.

6. We can print and design according to your idea and artwork.

7. The volume can be from 3ml to 200ml. The volume can be adjusted by choosing different diameter and differnt length of the tube. We can meet all sizes according to customer's requirement.

8. The diameter of the tube can be from 13.5mm to 40mm. This is subject to customer's choosing. Or we will suggest the size for customers.



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Why Choose us


1. More than 40 years experience in packaging design, develop and manufacture.
2. Strong R&D team, customized-products are highly welcomed.
3. 100% QC inspection before delivery, high quality with very competitive price.
4. 90% of our products are exporting to oversea market, top service and timely delivery.
