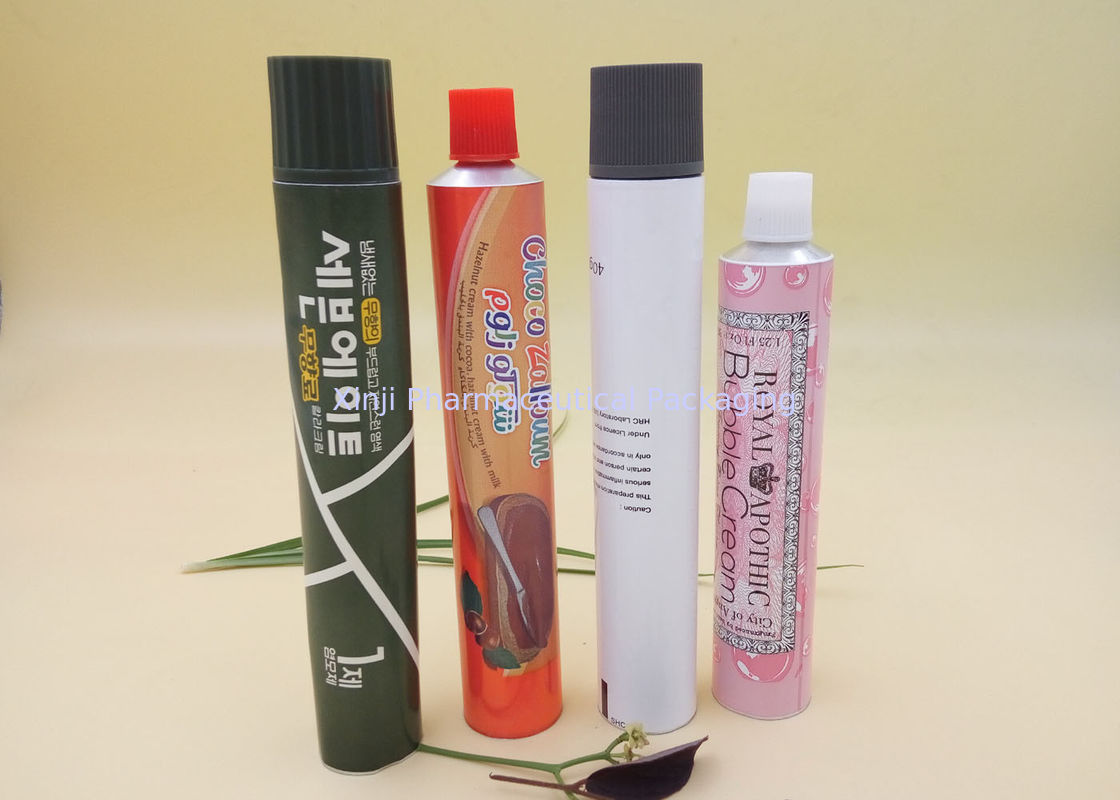

Soft Squeeze Tube Containers , Screw Cap 15g Collapsible Aluminum Tube

Soft Squeeze Tube Containers , Screw Cap 15g Collapsible Aluminum Tube

Soft Squeeze Tube Containers , Screw Cap 15g Collapsible Aluminum Tube

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia.13.5mm~Dia.40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: Aluminum Name: Soft Squeeze Aluminum Tube
Volume: 15g Sealing Type: Screw Cap
Thread: Membrane Artwork: Customized
Nozzle: Thread Nozzle Logo: Customized
High Light:

empty cream tubes

,

aluminum toothpaste tube

Soft Squeeze Aluminum Tube , Printed Tube Packaging



Quick Details:


1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.

Available Size: Dia 13.5mm - 40mm

Length: can customize

Capacity: 3ml - 200ml



Brief Introduction:



1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.



2. Established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.



3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.



4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.



5. 100 thousand grade standard packaging workshop and the compressed air after strict purification treatment fully meet the production conditions of direct contact with pharmaceutical packaging materials, and ensure that the products meet the hygiene requirements.





British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter Tolerance of Diameter Length Tolerance of Length Nozzle Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10 ±0.1 60 ±0.5 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165 ±1.0 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5


Advantages:


1. Scale. Top 3 manfuacturer of collapsible aluminum tubes in whole China, with annual capacity of 300 million pcs.
2. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
3. Production Lines. Full automatic production lines from Germany and Italy.
4. Quality. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
5. Price. Factory direct sells, offering you the most competitive price!
6. Service. Quick response on quotation, sample and after-service.


Quality:


Quality control department is the special independent unit to ensure that meet customer needs in terms of quality, adopt international testing standards and methods, continue to upgrade testing equipment to maintain the accuracy of test results, establish a zero-defect quality management philosophy: identification of customer needs correctly, to ensure adequate staff training, new product development, cjamhe control and product testing and quality.

Company culture:
Business philosophy: Meticulously manufacture, different for you.
Quality policy: Make every aluminum tube trustworthy
Xinji core values: love, responsibility, change, happy



Packing Solutions:



1. Packed in strong carton, suitable for long distance ocean transportation.

2. with strong carton and pallet, for LCL transportation.

3. Packed with plastic box, plastic bag, strong carton and pallet.

4. Can customize different packing solutions according to your detail requirements.
