Home ProductsMetal Squeeze Tubes

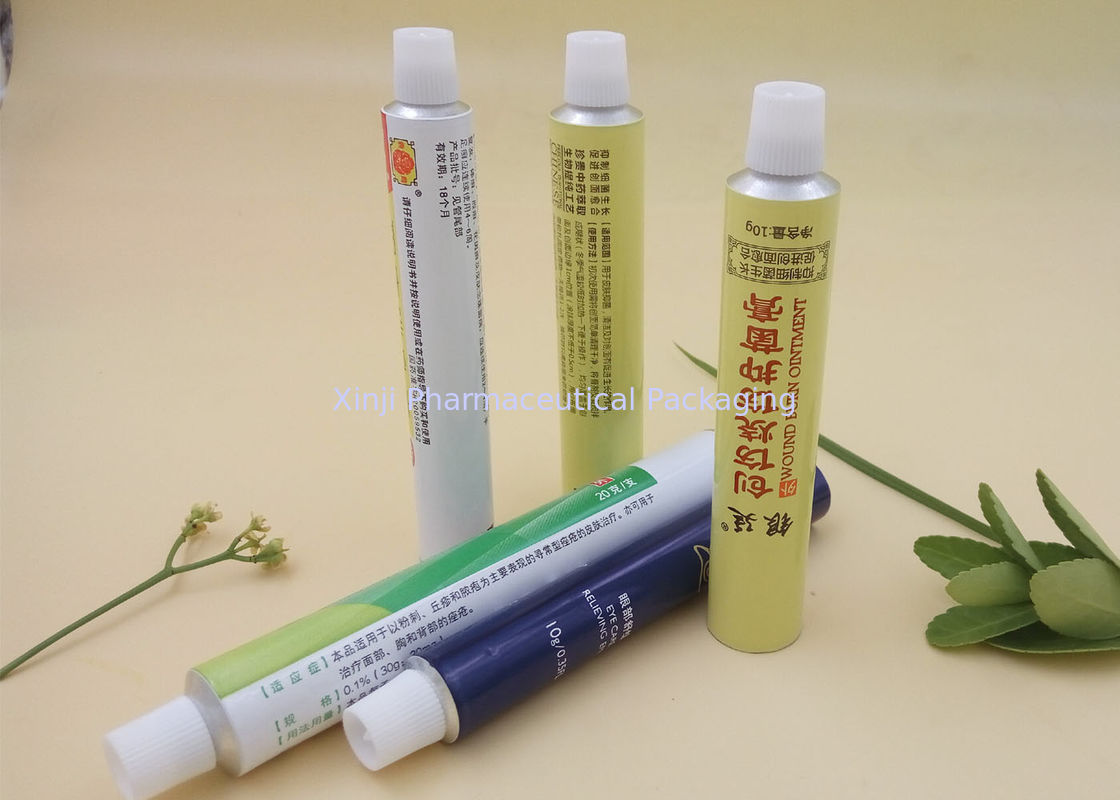

Skin Coating Metal Squeeze Tubes Epoxy Phenolic Resin Dia 13.5 Mm - 40 Mm

Skin Coating Metal Squeeze Tubes Epoxy Phenolic Resin Dia 13.5 Mm - 40 Mm

Skin Coating Metal Squeeze Tubes Epoxy Phenolic Resin Dia 13.5 Mm - 40 Mm

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm-Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: Aluminum Usage: Cosmetics, Medicine, Food, Etc.
Printing: Customized Product Name: Skin Coating Tube For Pharmaceutical Cream
Place Of Origin: China Sealing Type: Screw Cap
Caps: M9

Skin Coating Tube For Pharmaceutical Cream , Metal Squeeze Tubes Packaging



CERTIFICATE OF ANALYSIS
Test item Standard Testing result conclusion





Dimensions

And

appearance





Diameter(mm) F19± 0.1 19 qualified
  Length (mm) L120± 0.5 120 qualified
  Closing Under an air pressure of 0.2Mpa,no leakage No leakage qualified
  Appearance Integrity and clean Integrity and clean qualified
The coat printing Coating The color matches the standard,no exposure and no tiny oil droplets The color matches the standard,no exposure and no tiny oil droplets qualified
  Color printing Clear and entirety,the overprint is in position Clear and entirety,the overprint is in position qualified
  Color difference Conform to the standard Conform to the standard qualified
Internal coating Continuity(mA) ≤40 10 qualified
  Flexibility and adhesion The lacquer did not split off and no crazing No splitting off and no crazing qualified
  Chemicals Wipe 30 times with acetone,the lacquer did not split off No splitting off qualified
Annealing ≤8 mm(No bottom plate) 5 qualified
Sterilization By Ozone in 30 minutes qualified
Microgerm limitation inspection Bacteria <5 item/ml 0 item/ml qualified
  Tungi <5 item/ml 0 item/ml qualified
  Inaurate staphy None None qualified
  Aerugo pseudomonad None None qualified
Package Wholeness and clean Wholeness and clean qualified



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle



Advantages:


1. Plant. Top 3 manfuacturer of aluminum collapsible tubes in whole China, with annual capacity of 300 million pcs.
2. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
3. Production Lines. Full automatic production lines from Germany and Italy.





General Description
Useage Pharmaceutical, cosmetic, food, adhesive packaging, etc.
CAP Colour-white/red/blue; Type-Conual Piercer; material-HPPE.
Aluminum Blamks Aluminum>99.7% pure.
Internal Lacquer Type-Expoxy-Phenolic Resin.
External Base Coat Type-Enamel;Colour-White.
Colour Ink Suplier-Shanghai DIC.
Crimp sealant brand PPG.
Manufacturing Environment The construction of 100000-ton cleaning production packing workshop.
The standard of Inspection BS2006-86 Aluminum tube for medicine ointment.



The coat printing Coating The color matches the standard,no exposure and no tiny oil droplets
  Color printing Clear and entirety,the overprint is in position
  Color difference Conform to the standard
Internal coating Continuity(mA) ≤40
  Flexibility and adhesion The lacquer did not split off and no crazing
  Chemicals Wipe 30 times with acetone,the lacquer did not split off
Annealing ≤8 mm(No bottom plate)





Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(mm)
4.5

7
7

12
14

24
20

35
30

55
