Home ProductsMetal Squeeze Tubes

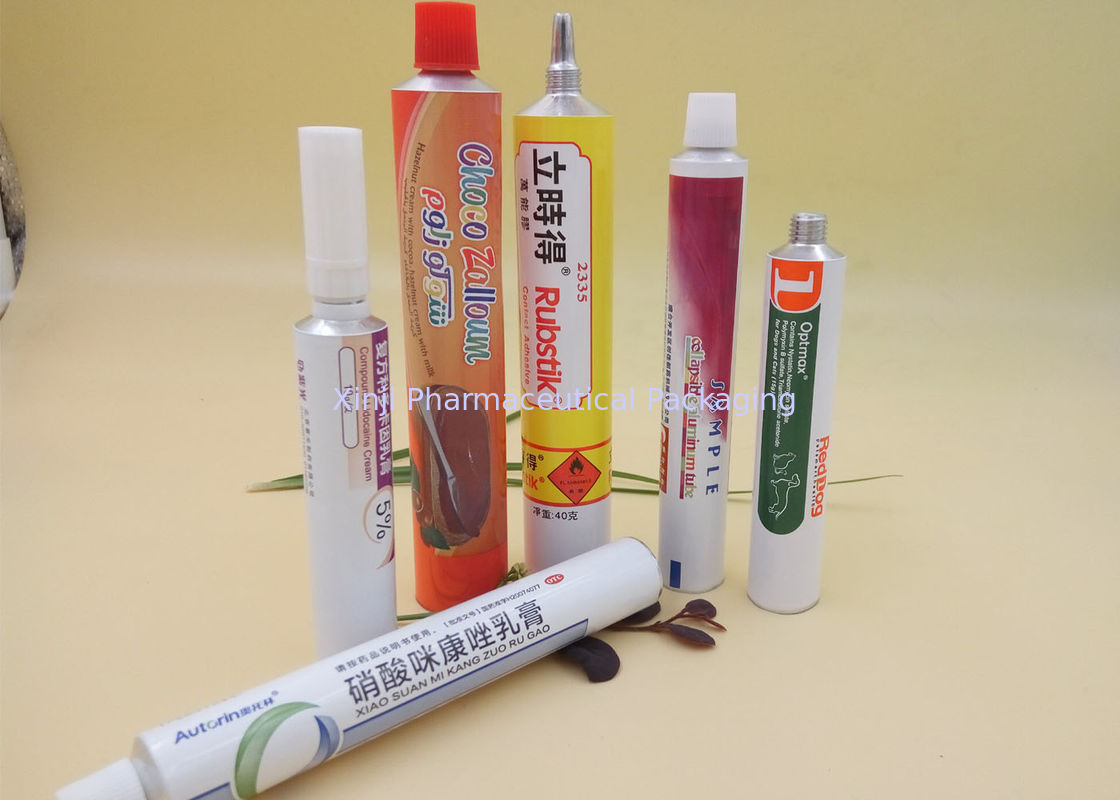

Collapsible 10g Metal Squeeze Tubes 100% Recyclable Material M11 Caps

Collapsible 10g Metal Squeeze Tubes 100% Recyclable Material M11 Caps

Collapsible 10g Metal Squeeze Tubes 100% Recyclable Material M11 Caps

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm-Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: Aluminum Product Name: Pharmaceutical Aluminum Packaging Tube
Sealing Type: Screw Cap Caps: M11
Feature: 100% Recyclable Length: Customized
Diameter: 25

Pharmaceutical Aluminum Packaging Tube , Metal Squeeze Tubes



1. In our factory,we have professional quality control personnel in every production department. Their job is to check the products quality in every step of the processes.
2. Skillful workers take care of every detail during producing and packaging process.
3. Moreover, our salers will always be responsible for the quality and details, they need to pay great attention for his/her production instead of clients.



Tube Size Dia16mm* Length 90mm (length can customize)
Tube Capacity 10g
Aluminum Slug Aluminum>99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Nozzle extended nozzle, extended plastic nozzle, etc.
Cap Color-white/red/blue/yellow; material-HPPE
Standard BS2006



Diameter Dia 13.5mm-40mm
Capacity 3ml-200ml
Length adjusted within the range of tube capacity (3ml to 200ml)
Layer mono-layer to five layers tube
Shape round,oval,super flat
Tube color white, transparent,colored
Printing 1-6 colors printing
Cap Flip top cap, screw on cap
Usage Cosmetic, Pharmaceutical, Health & Beauty industries
Packaging card board tray and carton with plastic bag inside



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter Tolerance of Diameter Length Tolerance of Length Nozzle Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10 ±0.1 60 ±0.5 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165 ±1.0 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(mm)
4.5

7
7

12
14

24
20

35
30

55
