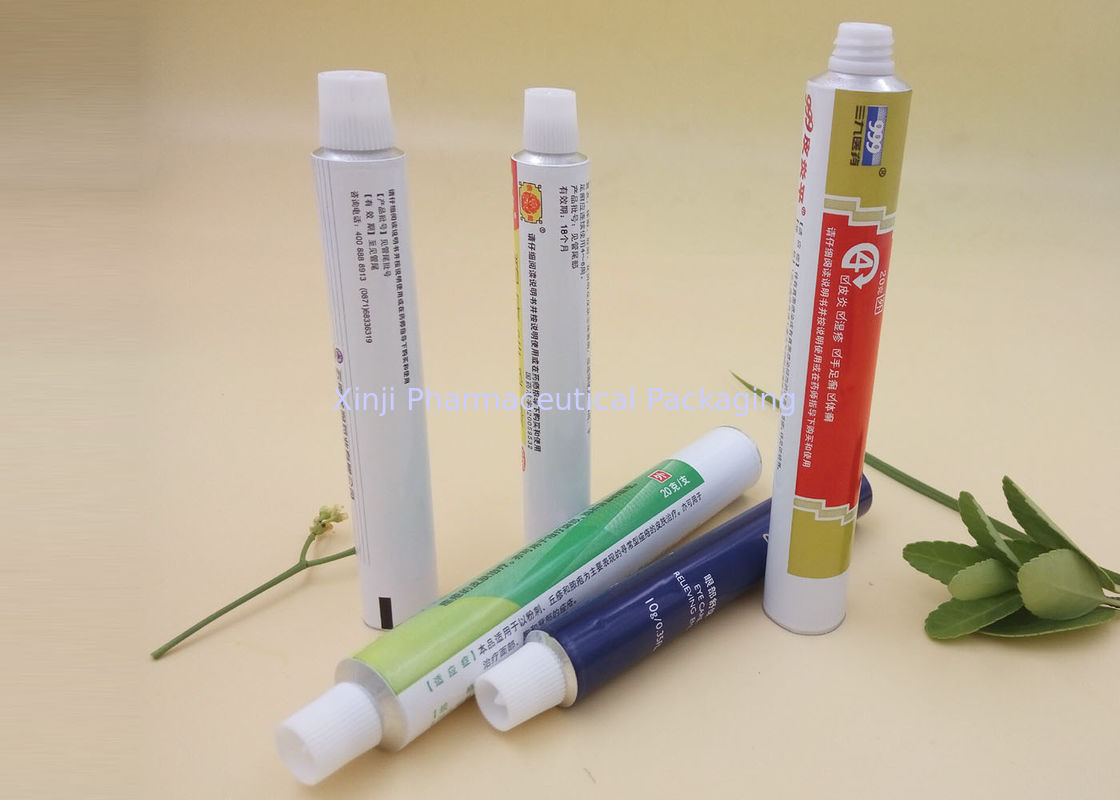

25 Mm Diameter Aluminum Tubes Packaging , Screw Cap Metal Cosmetic Tubes

25 Mm Diameter Aluminum Tubes Packaging , Screw Cap Metal Cosmetic Tubes

25 Mm Diameter Aluminum Tubes Packaging , Screw Cap Metal Cosmetic Tubes

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm-Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: Aluminum Product Name: Aluminum Cream Packaging Tube
Sealing Type: Screw Cap Caps: M9
Length: Customized Diameter: 25
Thread: Membrane
High Light:

aluminum tube cosmetic packaging

,

tube cosmetic packaging

Aluminum Cream Packaging Tube , Metal Squeeze Tubes



We are the 3rd largest manufacturer of collapsible aluminum tube industry. Our Aluminum tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc. Our factory now has 8 production lines in total , including 3 European lines (2 from PSG and 1 from Technopack) , with annual production capacity 300 million aluminum tubes.



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter Tolerance of Diameter Length Tolerance of Length Nozzle Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10 ±0.1 60 ±0.5 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165 ±1.0 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Tube Size Dia22mm* Length 130mm (length can customize)
Tube Capacity 20-35ml
Aluminum Slug Aluminum>99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Nozzle extended nozzle, extended plastic nozzle, etc.
Cap Color-white/red/blue/yellow; material-HPPE
Sterile (Irradiation Service) available, as per your requirement.



Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(mm)
4.5

7
7

12
14

24
20

35
30

55
