Home ProductsMetal Squeeze Tubes

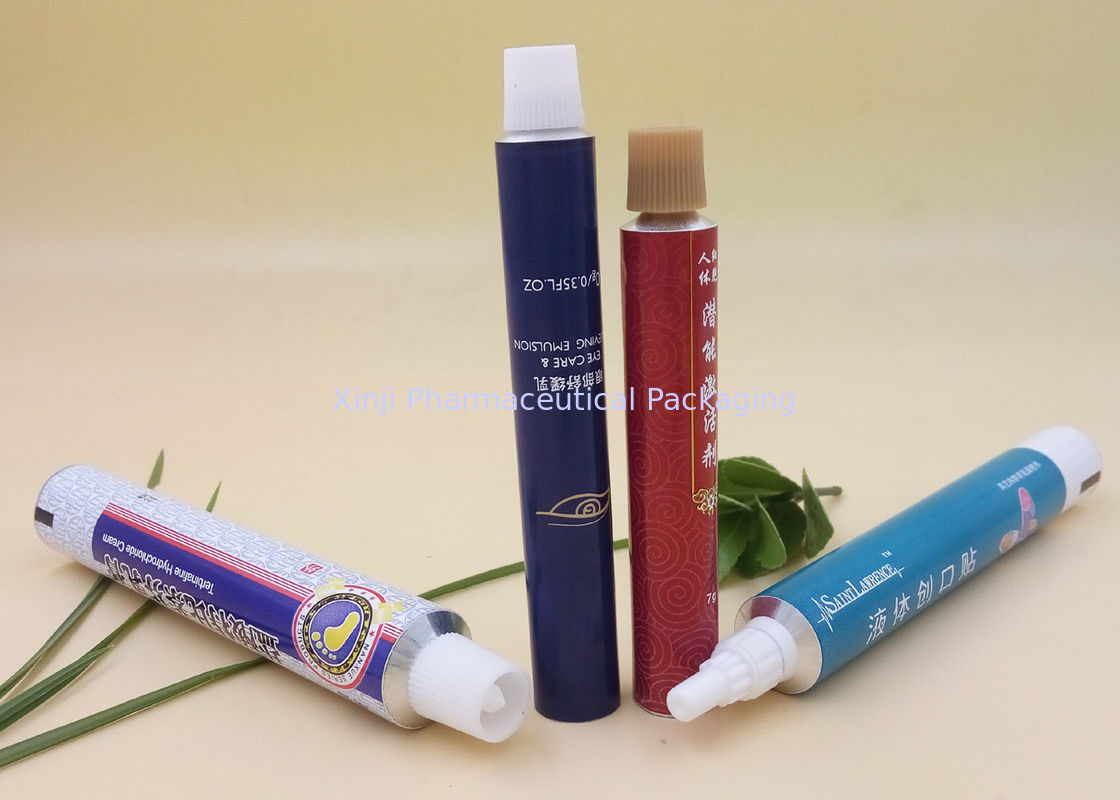

10g Packaging Metal Squeeze Tubes Screw Cap 90 Mm / Custom Length

10g Packaging Metal Squeeze Tubes Screw Cap 90 Mm / Custom Length

10g Packaging Metal Squeeze Tubes Screw Cap 90 Mm / Custom Length

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm-Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: Aluminum Product Name: Packaging Tube Of Aluminum
Sealing Type: Screw Cap Caps: M9
Length: Customized Diameter: 19
Thread: Membrane Place Of Origin: Ezhou Hubei, China

Packaging Tube Of Aluminum , Metal Squeeze Tubes


Tube Size Dia16mm* Length 90mm (length can customize)
Tube Capacity 10g
Aluminum Slug Aluminum>99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Nozzle extended nozzle, extended plastic nozzle, etc.
Cap Color-white/red/blue/yellow; material-HPPE
Standard BS2006



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter Tolerance of Diameter Length Tolerance of Length Nozzle Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10 ±0.1 60 ±0.5 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165 ±1.0 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5





Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(mm)
4.5

7
7

12
14

24
20

35
30

55



Microgerm limitation inspection Bacteria <5 item/ml
  Tungi <5 item/ml
  Inaurate staphy None
  Aerugo pseudomonad None


Advantages:

1. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
2. Production Lines. Full automatic production lines from Germany and Italy.
3. Price. Factory direct sells, offering you the most competitive price!
4. Service. Quick response on quotation, sample and after-service.
