Home ProductsMetal Squeeze Tubes

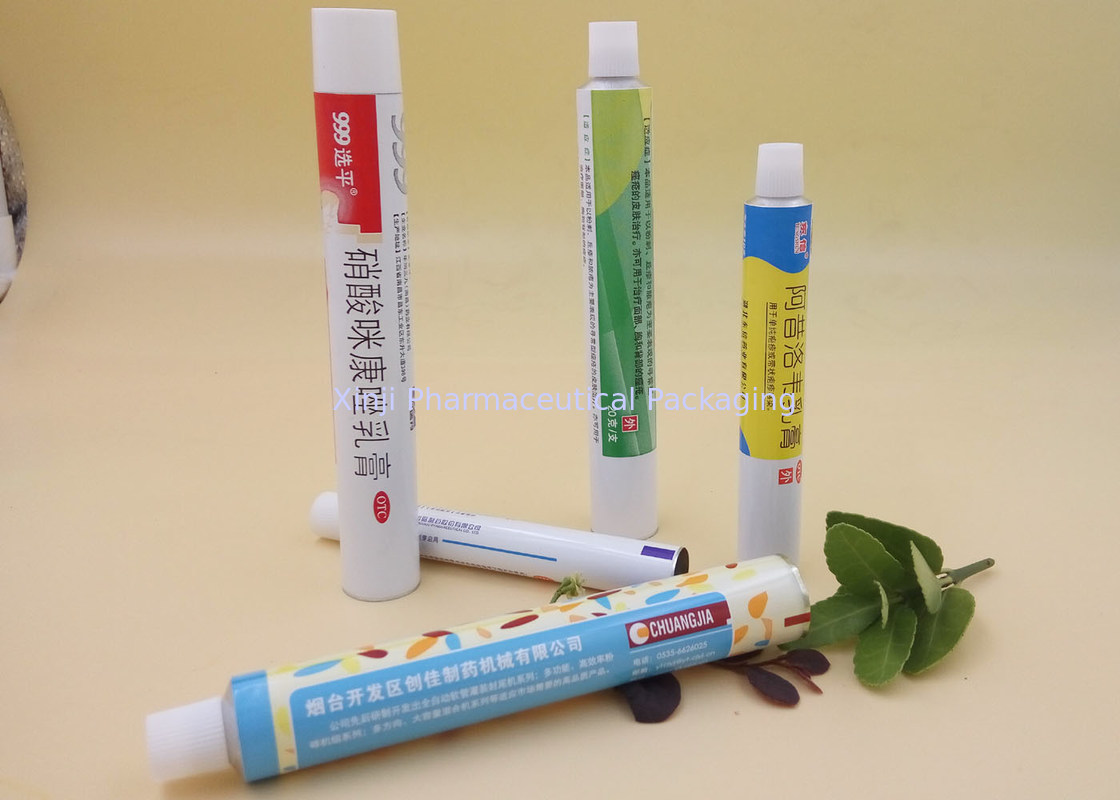

Membrane Thread Metal Squeeze Tubes For Pharmaceutical Cream Aluminum Material

Membrane Thread Metal Squeeze Tubes For Pharmaceutical Cream Aluminum Material

Membrane Thread Metal Squeeze Tubes For Pharmaceutical Cream Aluminum Material

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm-Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Material: Aluminum Product Name: Metal Aluminum Tube
Caps: M9 Length: Customized
Diameter: 19 Thread: Membrane
Place Of Origin: Ezhou Hubei, China Artwork: Customized

Metal Aluminum Tube , Metal Squeeze Tubes , For Pharmaceutical Cream



INSPECTION RECORD
Items Standard Testing Result Conclusion
Component material Aluminum > 99.7% Aluminum > 99.7% Conform
Dimensions and appearance Diameter(mm) 19±0.1 18.95-19.05 Conform
  Length(mm) 110±0.3 109.82-110.26 Conform
  Wall thickness(mm) 0.11-0.14 0.11-0.14 Conform
  Appearance Without deformation, damage Without deformation, damage Conform
  Weight of tube 3g 3g Conform
  Weight of cap 0.6g 0.6g Conform
  Weight of tube with cap 3.6g 3.6g Conform
  Cap Dimension 13.2mm(base diameter) 13.2mm(base diameter) Conform
    11.5mm(top diameter) 11.5mm(top diameter) Conform
    12.3mm(height) 12.3mm(height) Conform
Coating and printing Internal Lacquer Epoxy phenolic Epoxy phenolic Conform
  External Lacquer White color matches standard, no exposure, no bubble White color matches standard, no exposure, no bubble Conform
  Printing Clear, entirety and in position Clear, entirety and in position Conform
  Color Differece According to sample's color variation range According to sample's color variation range Conform
  Flexibillity and adhesion The lacquer doesn't split off abd bi crackle The lacquer doesn't split off abd bi crackle Conform
  Chemical Stability Wipe 30 times with acetone slightly the lacquer doesn't split off No splitting off Conform
Internal coating Electrical-continuity ≤90 mA ≤32 mA Conform
  Chemical Stability Wipe 30 times with acetone slightly the lacquer doesn't split off No splitting off Conform
Annealing malleability test <10mm 7-9 Conform
Closing and sealing test under an air pressure of 0.2Mpa, no leakage No leakage Conform
Latex Uniformity Applied uniformly without thickening and sagging Applied uniformly without thickening and sagging Conform
Micro germ limitation inspection Bacteria <5 item/ml 0 item/ml Conform
  Fungi <5 item/ml 0 item/ml Conform
  Staphylococcus aureus None None Conform
  Pseudomonas aeruginosa None None Conform
Package Wholeness and clean Wholeness and clean Conform
Conclusion Qulified



Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(mm)
4.5

7
7

12
14

24
20

35
30

55


Our Advantages:


1. Scale. Top 3 manfuacturer of collapsible aluminum tubes in whole China, with annual capacity of 300 million pcs.
2. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
3. Production Lines. Full automatic production lines from Germany and Italy.
