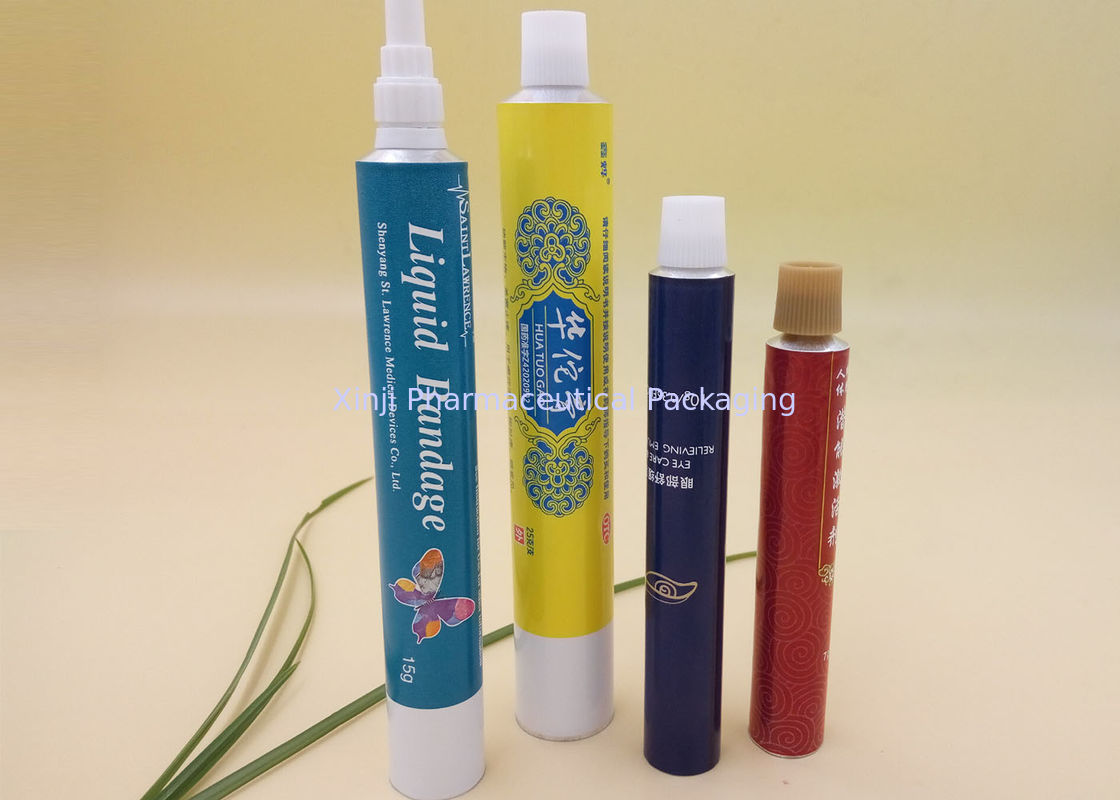

19 Mm Diameter Collapsible Aluminium Tubes , M9 Caps Empty Ointment Tubes

19 Mm Diameter Collapsible Aluminium Tubes , M9 Caps Empty Ointment Tubes

19 Mm Diameter Collapsible Aluminium Tubes , M9 Caps Empty Ointment Tubes

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm-Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Detailed Product Description
Product Name: Metal Tube Packaging For Medicine Caps: M9
Length: Customized Diameter: 19
Thread: Membrane Place Of Origin: Ezhou Hubei, China
Artwork: Customized

Metal Tube Packaging For Medicine, Metal Squeeze Tubes



The normal round tube, oval tube and super flat tube are available here, diameter ranges from 13.5mm, 16mm, 19mm, 22mm, 25mm, 30mm, 35mm, 40mm, with the capacity 5ml to 200ml accordingly.

There are 1-6 colors offset printings here, The cap is also made with various choices, such as screw cap, flip cap, etc.

Our tubes mainly used for medicine, adhesive, tooth paste, eye ointment, hand cream, facial milk and some food packaging, etc.

Should you have any questions or needs, please contact us freely, we will take every effort to offer you the best service.





British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter Tolerance of Diameter Length Tolerance of Length Nozzle Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10 ±0.1 60 ±0.5 60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165 ±1.0 115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5




Size & Volume
Diameter
(mm)
13.5 16 19 22 25
Length
(mm)
55

100
55

105
80

130
85

140
95

160
Content
(mm)
4.5

7
7

12
14

24
20

35
30

55



Aluminum collapsible Tube Specification sheet
Fill Volume Suggested Tube Size(diameter&height)
2-5ml Dia11mm*H55mm, Dia13.5mm*H70mm,
5-12ml Dia13.5mm*H70mm, Dia16mm*H100mm,
19-25ml Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request
35-50ml dia25mm
60-80ml dia30ml,32ml
125-150ml dia32ml,35ml
150-200ml dia35mm,40mm
