|Place of Origin:||China|
|Model Number:||Dia 13.5mm - 40mm|
|Minimum Order Quantity:||50000 pcs|
|Packaging Details:||Packed in strong carton,suitable for long distance ocean transportation.|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||300 millions pcs per year|
|Aluminum:||> 99.7% Purity||Color:||Up To 6 Colors|
|Name:||Collapsible Pharma Tube||Capacity:||3ml - 200ml|
|Usage:||Pharmaceutical Packaging Tube||Certificate:||ISO, CFDA|
aluminum tubes packaging,
travel squeeze tube

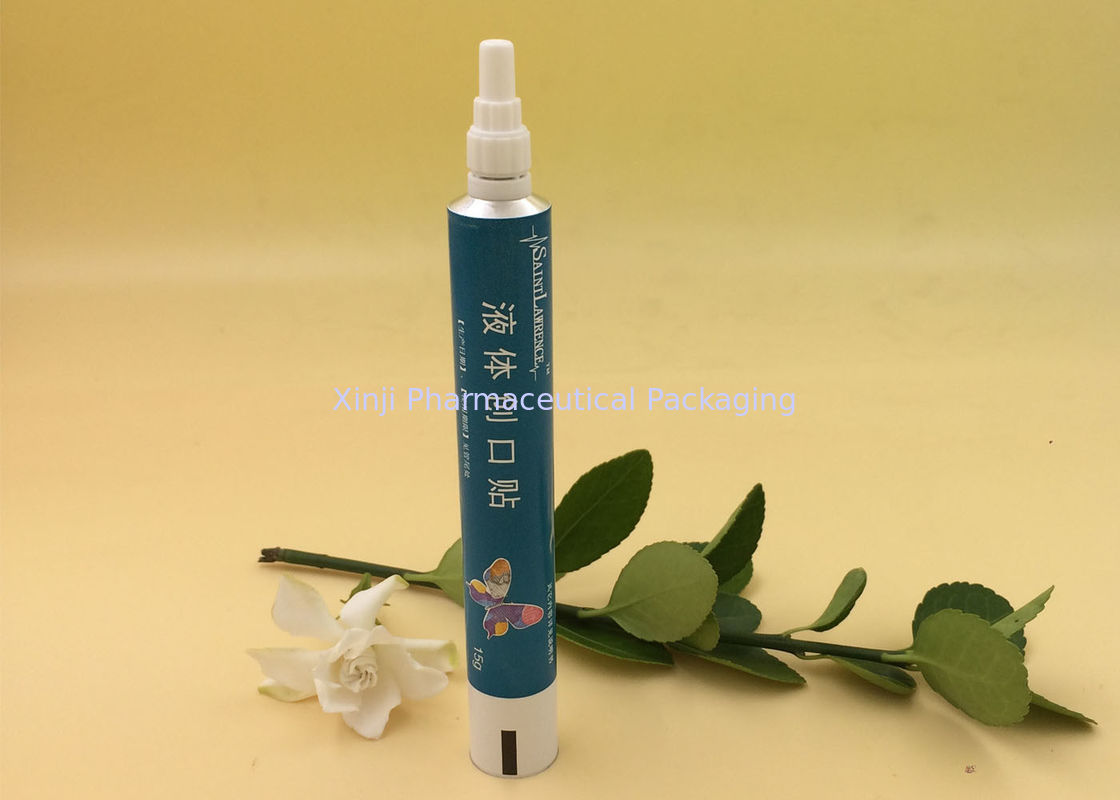

Collapsible Pharma Tube / Collapsible Aluminum Pharma Packaging Tube 3ml - 200ml
1. In our factory,we have professional quality control personnel in every production department. Their job is to check the products quality in every step of the processes.
2. Skillful workers take care of every detail during producing and packaging process.
3. Moreover, our salers will always be responsible for the quality and details, they need to pay great attention for his/her production instead of clients.
|Aluminum Slugs||Aluminum＞99.7% pure.|
|Internal Lacquer||Type-Epoxy Phenolic Resin.|
|External Base Coat||Type-Enamel; Color-White (can customize).|
|Latex at the end||Optional|
|Color Ink||up to 6 colors, Supplier-Shanghai DIC.|
|Manufacturing Environment||100000-ton cleaning production packing workshop.|
|Equipment||Germany PSG fully automatic production line.|
|The standard of Inspection||in accordance with British Standard BS2006-86.|
Company Brief Introduction:
The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.
Our company Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province, established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.
Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.
British Standard (BS2006-86):
|British Standard of Aluminum Collapsible Tube BS2006-1984|
|Sheet3 Size Standard|
|Tolerance of Diameter||
|Tolerance of Length||
|Tube Wall Thickness||Shoulder Thickness|
|Max||Min||Max||Min||Shoulder Angle Standard|
|60||0.11||0.07||0.5||0.3||90℃ or 120℃ or 126℃|
|13.5||75||60 or 70||0.11||0.07||0.5||0.3||90℃ or 120℃ or 126℃|
|16||100||80||0.12||0.08||0.65||0.35||120℃ or 126℃|
|19||110||95||0.13||0.1||0.65||0.35||120℃ or 126℃|
|22||130||95 or 115||0.14||0.1||0.65||0.35|
|25||150||95 or 115||0.14||0.1||0.7||0.4||No Standard|
|45||±0.25||200||115 or 135||0.18||0.12||0.9||0.5|
1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
