Hubei Xinji Pharmaceutical Packaging Co.,Ltd
Meticulously manufacture, different for you.
Meticulously manufacture, different for you.
 |
| Place of Origin: | Origin |
| Brand Name: | Xinji |
| Certification: | ISO / CFDA |
| Model Number: | 13.5mm |
| Minimum Order Quantity: | 50000pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Material: | Aluminum | Color: | Up To 6 Colors |
|---|---|---|---|
| Cap Type: | Screw Cap,flip Top Cap,customized Cap,etc | Application: | Ointment Packaging Tubes |
| Nozzles: | Open, Elongated, Sealed | Factory Direct: | YES |
| High Light: | bulk squeeze tubes,reusable toothpaste tubes |
||

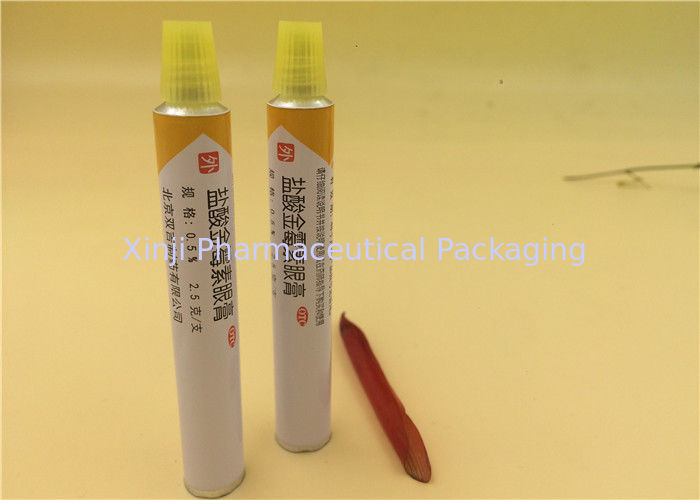

Customized Squeeze Aluminum Eye Ointment Tube for Eye Ointment
Detailed Description:
Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum tube manufacturing.
We are the 3rd largest manufacturer of collapsible aluminum tube industry. Our Aluminum tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
1. Our Aluminum Eye Ointment tubes are made of high quality aluminum for tube and high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.
2. The volume can be from 3ml to 200ml. The volume can be adjusted by choosing different diameter and differnt length of the tube. We can meet all sizes according to customer's requirement.
3. The diameter of the tube can be from 13.5mm to 40mm. This is subject to customer's choosing. Or we will suggest the size for customers.
4. Printing is offseting printing with max. 6 colors.
5. The normal screw cap,and special shape caps are available to select. The cap can also be with different colors.
6. The top is unbreaken dsealing.
7. The end of the tube is opened.
8. We can print and design according to your idea and artwork.
| British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
| Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
| The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle | |||||||||
Why Choose us
1. More than 40 years experience in packaging design, develop and manufacture.
2. Strong R&D team, customized-products are highly welcomed.
3. 100% QC inspection before delivery, high quality with very competitive price.
4. 90% of our products are exporting to oversea market, top service and timely delivery.
Our quality system
ISO9001certification
Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)
FAQ:
1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China.
2. How to get samples?
Samples without customized printing are free, but do not pay the cost of freight.
3. How long is your delivery time?
Generally it is 30 days after we sign the contract, it is according to quantity.
4. What's your payment term?
T/T, L/C, Western Union, etc.
Contact Person: Ms. Echo
Tel: 0086-15871390717
