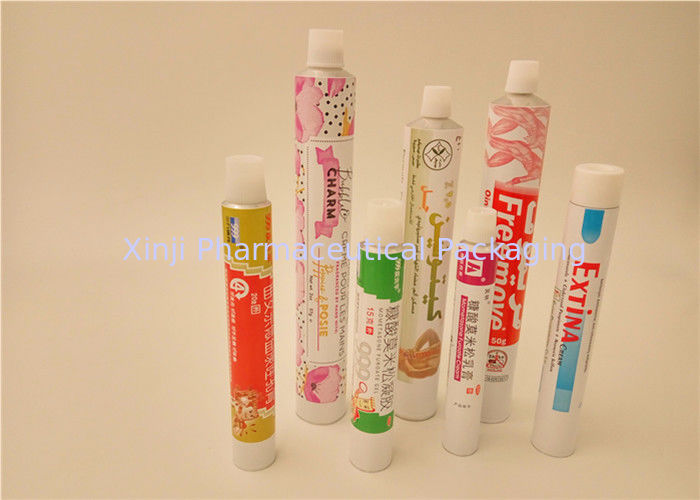

Dermatological Aluminium Collapsible Tubes , Pharmaceutical Aluminum Tubes

Dermatological Aluminium Collapsible Tubes , Pharmaceutical Aluminum Tubes

Dermatological Aluminium Collapsible Tubes , Pharmaceutical Aluminum Tubes

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm~40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: 99.7% Aluminum Name: Aluminum Squeeze Tubes
Color: Up To 6 Colors Origin: China
Volume: 3ml To 200ml Cap Type: HPPE
High Light:

aluminum squeeze tubes

,

empty toothpaste tubes

Dermatological Aluminum Collapsible Tubes For Pharmaceutical

Description



Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum collapsible tube manufacturing. We are the second largest manufacturer of aluminum collapsible tube industry.



1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.

2. Aluminum Blamks: Aluminum>99.7% pure.

3. Internal Lacquer: Type-Expoxy-Phenolic Resin.

4. External Base Coat: Type-Enamel;Colour-White.

5. Colour Ink: Suplier-Shanghai DIC.

6. Crimp sealant brand: PPG.

7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.

8. Equipment: Germany PSG fully automatic production line.

9. The standard of Inspection: BS2006-86 Aluminum collapsible tube for medicine ointment.

10. Closing: Under an air pressure of 0.2Mpa, no leakage.

11. Appearance: Integrity and clean.

12. Coating: The color matches the standard,no exposure and no tiny oil droplets.

13. Color printing: Clear and entirety, the overprint is in position.

14. Flexibility and adhesion: The lacquer did not split off and no crazing.

15. Package: Wholeness and clean.



British Standard of Aluminum Collapsible Tube BS2006-1984



Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle



Our advantages:

  • Scales: Now we are the top 3 in China aluminum material manufacturing company.
  • Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
  • Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
  • Technique: many researchers are invested in product study.
  • Production lines: Full automatic production lines from Germany and Italy.



Our Service:

We can deliver free samples if you need. Please feel free to contact us or email us.

It would be our great honor to send you some free samples for your quality test.

We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.

1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours.
3. If you need us to improve the service, please feel free to contact us.
