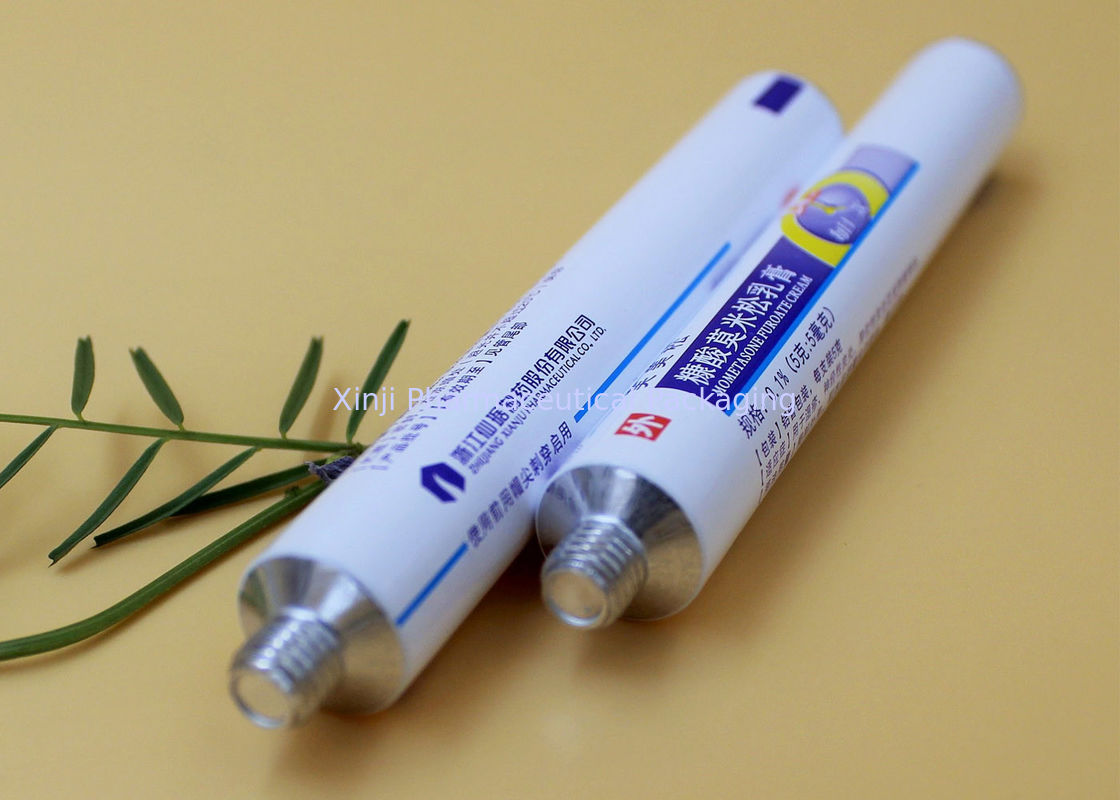

Different Dia Aluminum Packaging Tubes Custom Printing Enamel External Base Coat

Different Dia Aluminum Packaging Tubes Custom Printing Enamel External Base Coat

Different Dia Aluminum Packaging Tubes Custom Printing Enamel External Base Coat

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia. 13.5mm - Dia. 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: Aluminum 99.7% Purity Name: Aluminum Soft Tube
Color Of Printing: Up To 6 Colors Usage: Cosmetics, Medicine, Food, Etc.
External Base Coat: Type-Enamel, Colour-White Internal Lacquer: Type-Expoxy-Phenolic Resin
High Light:

toothpaste tube packaging

,

aluminum lotion tubes

Different Dia Aluminum Soft Tube , Aluminum Packaging Tubes , Customized Printing Aluminum Tube



Nearly 40 years experience in packaging design, develop and manufacture. Strong R&D team, customized-products. 100% QC inspection before delivery, high quality with very competitive price. 90% of our products are exporting to oversea market, top service and timely delivery.



We are TOP3 in China of collapsible aluminum tube indursty. We imported several high speed automatic production line from Germany and Italy. Regard “make every aluminum tube trustworthy” as our quality concept to cover the whole process including products designing, developing, producing, transporting and servicing.



Description:



Useage Pharmaceutical, cosmetic, food, adhesive packaging, etc.
CAP Colour-white/red/blue; Type-Conual Piercer; material-HPPE.
Aluminum Blamks Aluminum>99.7% pure.
Internal Lacquer Type-Expoxy-Phenolic Resin.
External Base Coat Type-Enamel;Colour-White.
Colour Ink Suplier-Shanghai DIC.
Crimp sealant brand PPG.
Manufacturing Environment The construction of 100000-ton cleaning production packing workshop.
The standard of Inspection BS2006-86 Aluminum tube for medicine ointment.
Closing Under an air pressure of 0.2Mpa,no leakage
Appearance Integrity and clean
Coating The color matches the standard,no exposure and no tiny oil droplets
Color printing Clear and entirety,the overprint is in position
Flexibility and adhesion The lacquer did not split off and no crazing
Chemicals Wipe 30 times with acetone,the lacquer did not split off
Package Wholeness and clean





Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle



British Standard of Aluminum Collapsible Tube     BS2006-1984



Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle
