Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia. 13.5mm - Dia. 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | Aluminum 99.7% Purity | Name: | Aluminum Soft Tube |
---|---|---|---|
Color Of Printing: | Up To 6 Colors | Usage: | Cosmetics, Medicine, Food, Etc. |
External Base Coat: | Type-Enamel, Colour-White | Internal Lacquer: | Type-Epoxy-Phenolic Resin |
Highlight: | aluminium tubes for cosmetics,lotion tubes bulk |

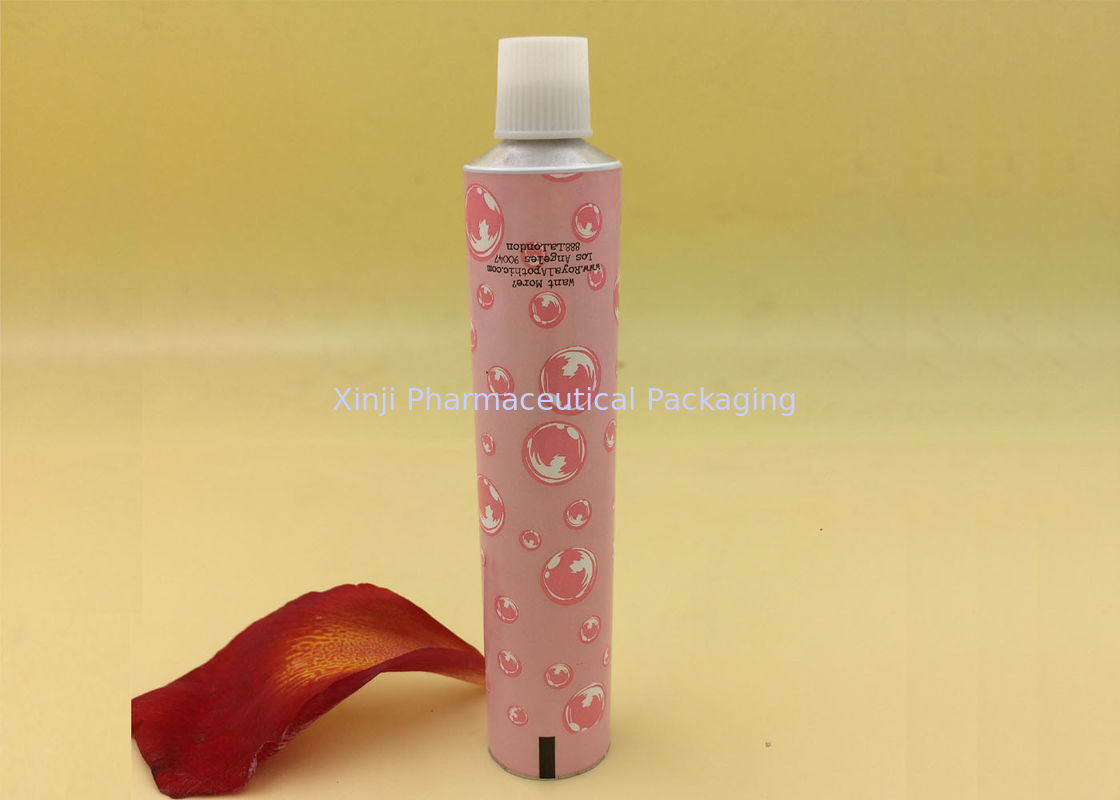

Empty Aluminum Cosmetic Tubes Collapsible Type Enamel External Base Coat
Introduction:
Our company brought in several high speed automatic production line from Germany and Italy. We gather a professional management team, We gather a professional management team, combine the tube making technology accumulated in 30 more years with scientific management, regard “make every aluminum tube trustworthy” as our quality concept to cover the whole process including products designing, developing, producing, transporting and servicing.
Description:
Useage | Pharmaceutical, cosmetic, food, adhesive packaging, etc. |
CAP | Colour-white/red/blue; Type-Conual Piercer; material-HPPE. |
Aluminum Blamks | Aluminum>99.7% pure. |
Internal Lacquer | Type-Expoxy-Phenolic Resin. |
External Base Coat | Type-Enamel;Colour-White. |
Colour Ink | Suplier-Shanghai DIC. |
Crimp sealant brand | PPG. |
Manufacturing Environment | The construction of 100000-ton cleaning production packing workshop. |
The standard of Inspection | BS2006-86 Aluminum tube for medicine ointment. |
Closing | Under an air pressure of 0.2Mpa,no leakage |
Appearance | Integrity and clean |
Coating | The color matches the standard,no exposure and no tiny oil droplets |
Color printing | Clear and entirety,the overprint is in position |
Flexibility and adhesion | The lacquer did not split off and no crazing |
Chemicals | Wipe 30 times with acetone,the lacquer did not split off |
Package | Wholeness and clean |
Standard Nozzle: |
A. Plastic on-sert nozzle No.2 tube |
B. Metric (V thread) open nozzle |
C. Metric (V thread) sealed nozzle (membrane) |
D. Extended Plastic Nozzle |
E. Extended Nozzle |
F. Plastic on-sert nozzle |
British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
