Hubei Xinji Pharmaceutical Packaging Co.,Ltd
Meticulously manufacture, different for you.
Meticulously manufacture, different for you.
 |
| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CDFA |
| Model Number: | Dia.13.5mm-40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | box, carton and pallet; or other special packing as per your requirement. |
| Delivery Time: | within 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 million pcs per year |
| Material: | Aluminum | Name: | Squeeze Aluminum Food Tube |
|---|---|---|---|
| Application: | Aluminum Packaging Tube For Jam | Diameter: | 13.5mm-40mm |
| Origin: | Hubei, China | Color: | Up To 6 Colors Priting |
| High Light: | food packaging tubes,cheese squeeze tube |
||

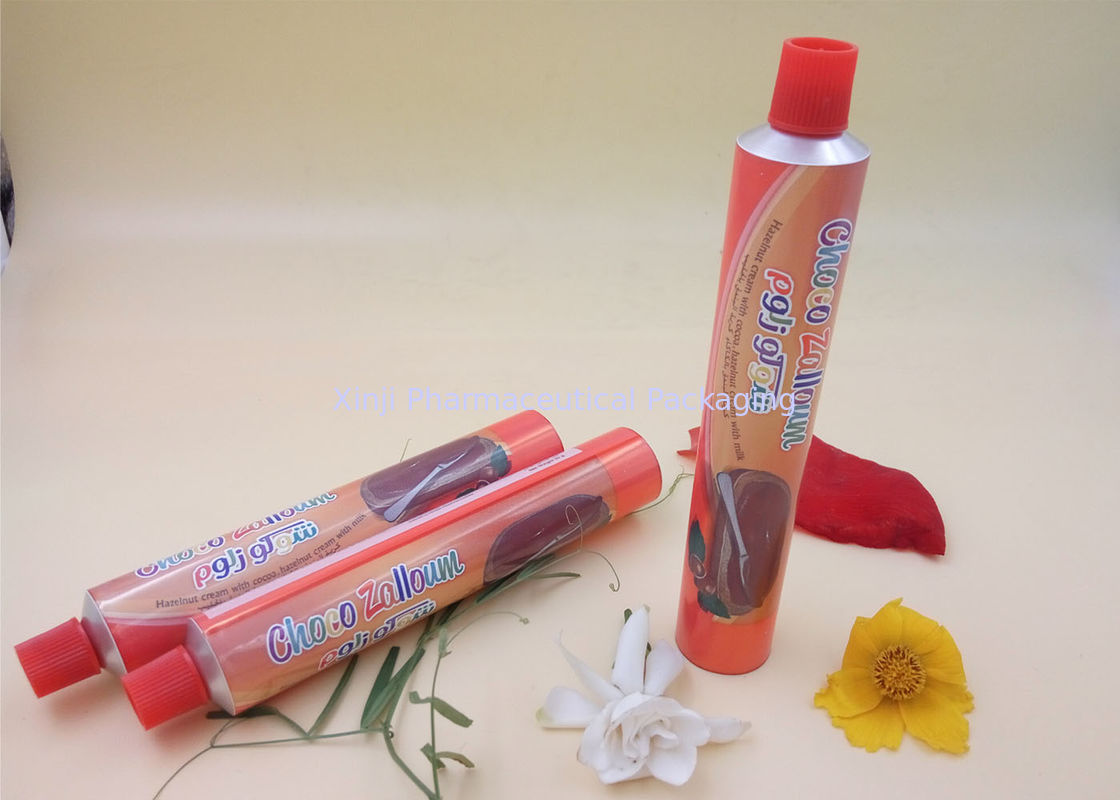

Soft Aluminum Packaging Food Squeeze Tubes For Condensed Milk , Chocolate Sauce
Gerenal Description
1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum＞99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel;Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.
8. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.
9. Closing: Under an air pressure of 0.2Mpa, no leakage.
10. Appearance: Integrity and clean.
11. Coating: The color matches the standard,no exposure and no tiny oil droplets.
12. Color printing: Clear and entirety, the overprint is in position.
13. Flexibility and adhesion: The lacquer did not split off and no crazing.
14. Package: Wholeness and clean.
Standard Nozzle:
| British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
| Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
| The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle | |||||||||
Our Service:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
We have worked for Packaging especially Aluminum Tubes for nearly 40 years. We introduce production line and import the raw materials to keep the top quality. Then Products under GMP workshop and serious staff control. Our price is quite competitive. We believe in that Customers First! If you have any price inquiry, please contact us, we will provide the best quality products with the most competitive price ever!
Xinji Tube, across half a century, after two generations, never stop explorating of technology and promising of quality. There are many talented people in the State of Chu, especially in this place. Diligent and interligent Xinji persons produce tubes in a spirit of craftsman, promoting the Chu culture widely! So let the world know about the broad and profound Chinese civilisation!
Contact Person: Ms. Echo
Tel: 0086-15871390717
