Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Raw Material: | 99.7% Pure Aluminum | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Collapsible Aluminum Tube | Certificate: | ISO, CFDA |
Standard: | BS2006-86 | Factory Direct: | Yes |
High Light: | squeeze tube packaging,aluminum lotion tubes |

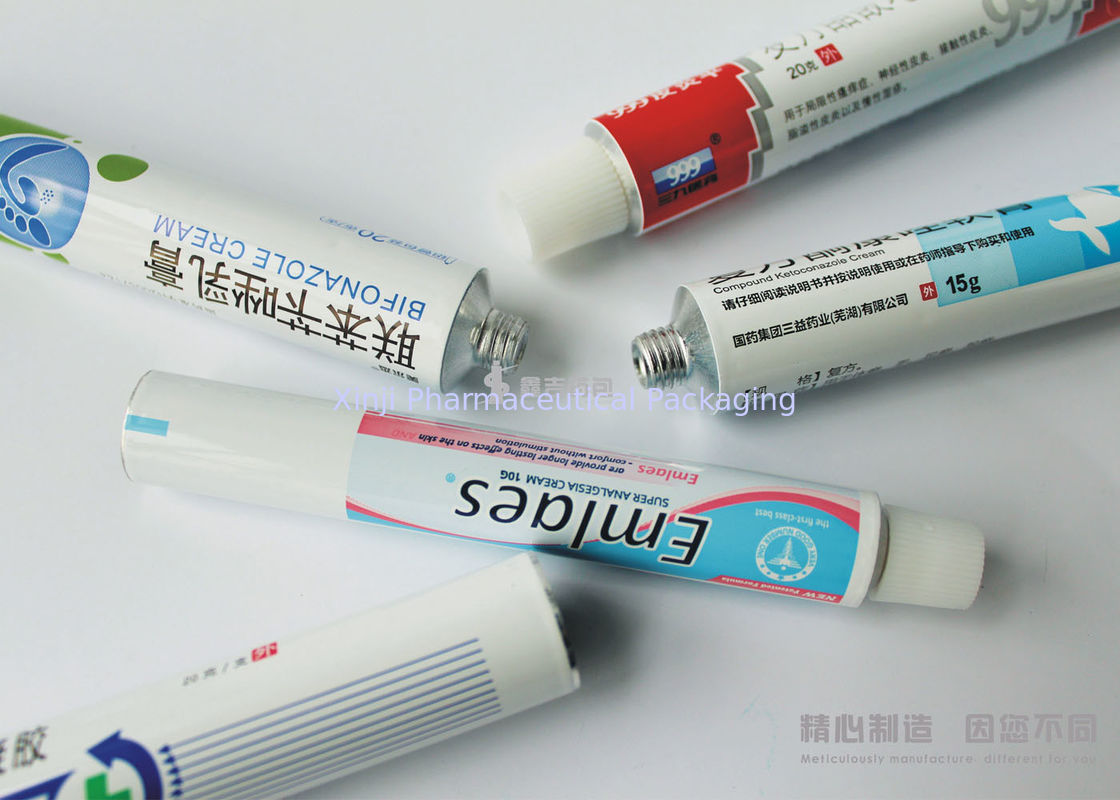

Soft Cream Aluminum Tubes , Aluminum Packaging Tubes , Gel Aluminum Tube
Company Brief Introduction:
1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.
2. Established in 1981 with nearly 40 years' experience in aluminum soft tube manufacturing.
3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.
4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.
British Standard (BS2006-86):
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Our Service:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.
Main Features:
Tube Diameter | Dia 13.5mm - 40mm (length can customize) |
Tube Capacity | 3-200ml |
Aluminum Slug | Aluminum>99.7% pure. |
Color Ink | up to 6 colors printing (with your logo and design) |
Internal Lacquer | Epoxy Phenolic Resin |
External Base Coat | Type-Enamel; Color-White (can customize). |
Latex at the End | Optional. |
Cap | Color-white/red/blue/yellow; material-HPPE |
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
Others:
The normal round tube, oval tube and super flat tube are available here, diameter ranges from 13.5mm, 16mm, 19mm, 22mm, 25mm, 30mm, 35mm, 40mm, with the capacity 5ml to 200ml accordingly.
There are 1-6 colors offset printings here, The cap is also made with various choices, such as screw cap, flip cap, etc.
Our tubes mainly used for medicine, adhesive, tooth paste, eye ointment, hand cream, facial milk and some food packaging, etc.
