Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Raw Material: | 99.7% Pure Aluminum | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Collapsible Aluminum Tubes | Certificate: | ISO, CFDA |
Standard: | BS2006-86 | Diameter: | 13.5mm~40mm |
Highlight: | squeeze tube packaging,toothpaste tube packaging |

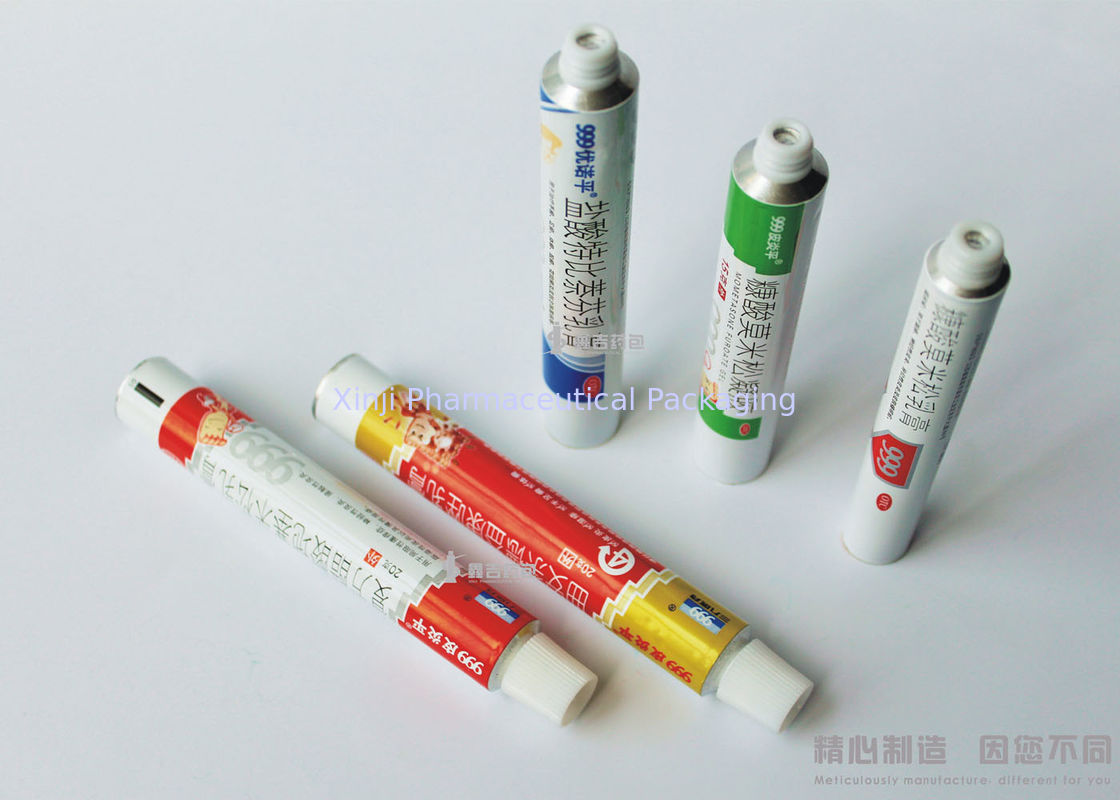

Flexible Aluminum Cream Tubes , Aluminum Packaging Tubes , Collapsible Tubes
Main Features:
Tube Diameter | Dia 13.5mm - 40mm (length can customize) |
Tube Capacity | 3-200ml |
Aluminum Slug | Aluminum>99.7% pure. |
Color Ink | up to 6 colors printing (with your logo and design) |
Internal Lacquer | Epoxy Phenolic Resin |
External Base Coat | Type-Enamel; Color-White (can customize). |
Latex at the End | Optional. |
Cap | Color-white/red/blue/yellow; material-HPPE |
British Standard (BS2006-86):
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Our advantages:
Our quality system
ISO9001certification
Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)
