Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | Aluminum 99.7% | Color: | 6 Colors |
---|---|---|---|
Name: | Collapsible Aluminum Tubes Packaging | Application: | Cosmetics, Medicine, Food, Paiting, Etc. |
Nozzles: | Open, Elongated, Sealed | Place Of Origin: | Hubei, China |
High Light: | squeeze tube packaging,toothpaste tube packaging |

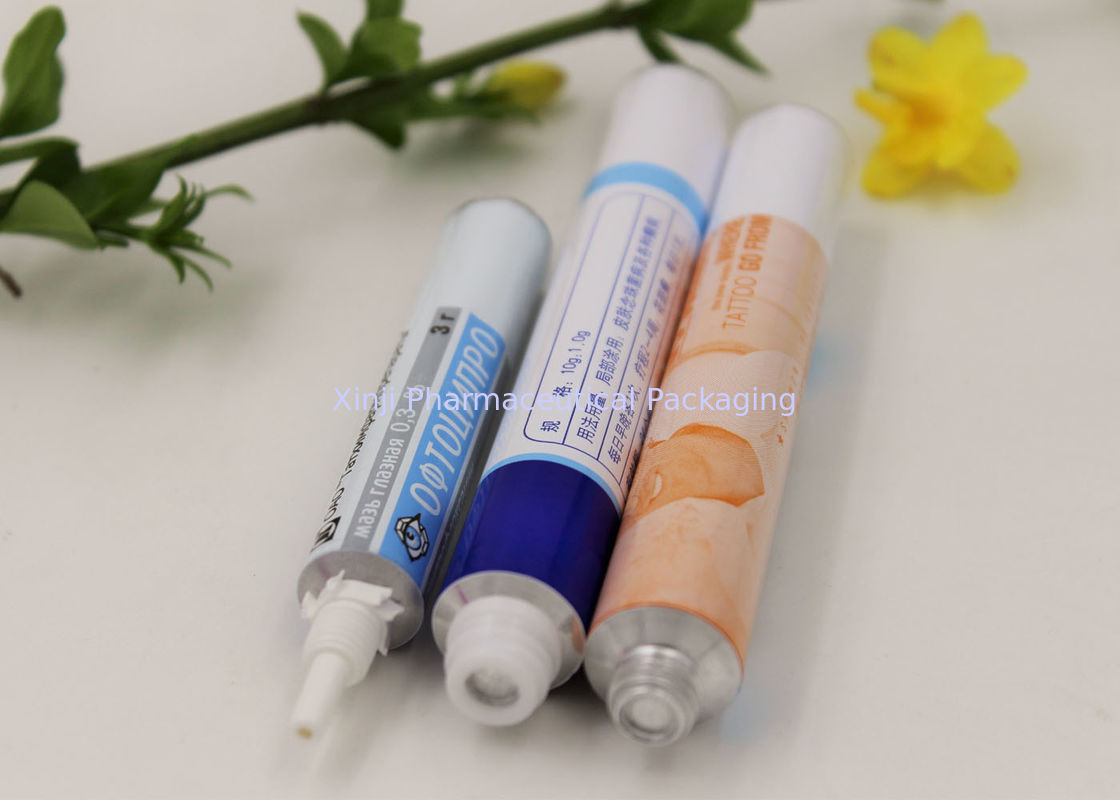

Metal Flexible Aluminum Tube , Aluminum Packaging Tubes For Toothpaste /Pharmaceutical / Cosmetic
Description
The normal round tube, oval tube and super flat tube are available here, diameter ranges from 13.5mm, 16mm, 19mm, 22mm, 25mm, 30mm, 35mm, 40mm, with the capacity 5ml to 200ml accordingly.
Useage | Pharmaceutical, cosmetic, food, adhesive packaging, etc. |
CAP | Colour-white/red/blue; Type-Conual Piercer; material-HPPE. |
Aluminum Blamks | Aluminum>99.7% pure. |
Internal Lacquer | Type-Expoxy-Phenolic Resin. |
External Base Coat | Type-Enamel;Colour-White. |
Colour Ink | Suplier-Shanghai DIC. |
Crimp sealant brand | PPG. |
Manufacturing Environment | The construction of 100000-ton cleaning production packing workshop. |
The standard of Inspection | BS2006-86 Aluminum collapsible tube for medicine ointment. |
Closing | Under an air pressure of 0.2Mpa,no leakage |
Appearance | Integrity and clean |
Coating | The color matches the standard,no exposure and no tiny oil droplets |
Color printing | Clear and entirety,the overprint is in position |
Flexibility and adhesion | The lacquer did not split off and no crazing |
Chemicals | Wipe 30 times with acetone,the lacquer did not split off |
Package | Wholeness and clean |
Our advantages:
Skillful workers take care of every detail during producing and packaging process.
Size & Volume | |||||
Diameter (mm) |
13.5 | 16 | 19 | 22 | 25 |
Length (mm) |
55 ↓ 100 |
55 ↓ 105 |
80 ↓ 130 |
85 ↓ 140 |
95 ↓ 160 |
Content (ml) |
4.5 ↓ 7 |
7 ↓ 12 |
14 ↓ 24 |
20 ↓ 35 |
30 ↓ 55 |
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
Profile:
We are the 3rd largest manufacturer of aluminum collapsible tube industry. Our aluminum soft tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
