Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | Aluminum | Color Of Printing: | Up To 6 Colors |
---|---|---|---|
Name: | Soft Aluminum Tubes Packaging | Application: | Cosmetics, Pharmaceutical, Food, Paiting, Etc. |
Cap Type: | Screw Cap,flip Top Cap,customized Cap,etc | Factory Direct: | YES |
High Light: | squeeze tube packaging,toothpaste tube packaging |

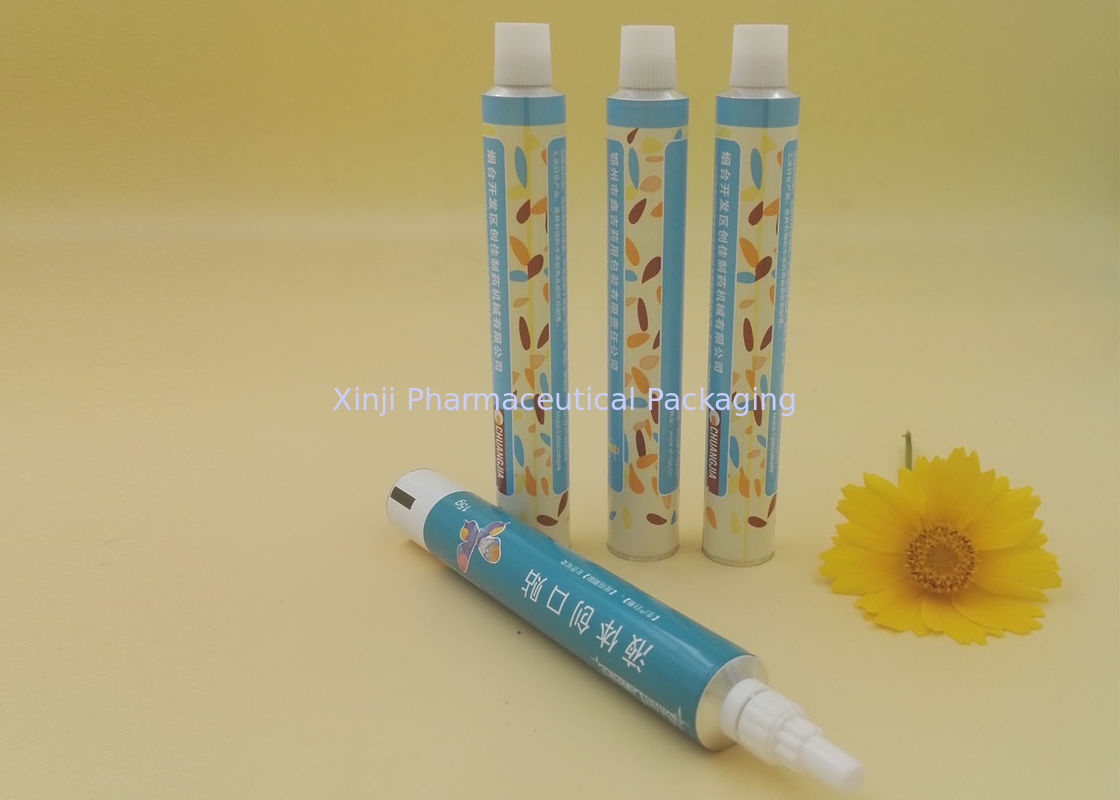

4.5 ml - 200 ml Aluminum Packaging Tubes Shining Appearance For Skin Care / Oral Care
Detailed Description:
Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum tube manufacturing.
We are the 3rd largest manufacturer of collapsible aluminum tube industry. We have complete production lines in factory, including tube extrusion, internal lacquering, external coating, offset printing and latex lining. Filling and sealing machines are also available for packaging. Custom production is acceptable to meet client’s needs!
1. Our Aluminum tubes are made of high quality aluminum for tube and high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.
2. The volume can be from 3ml to 200ml. The volume can be adjusted by choosing different diameter and differnt length of the tube. We can meet all sizes according to customer's requirement.
3. The diameter of the tube can be from 13.5mm to 40mm. This is subject to customer's choosing. Or we will suggest the size for customers.
4. Printing is offseting printing with max. 6 colors.
5. The normal screw cap,and special shape caps are available to select. The cap can also be with different colors.
6. The top is unbreaken dsealing.
7. The end of the tube is opened.
8. We can print and design according to your idea and artwork.
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Application of Aluminum Collapsible Tube | |
Product Type | Contents |
Health caring | eye cream,body lotion,shaving cream,foot cream,toothpaste,hand cream |
Medicine | unguent,medical cream,gel |
Adhesive Glue | super glue,rubber cement,leather adhesive,resin,wood glue,epoxy glue,metal glue,sealant |
Industrial Grease | brake grease,silicone-based grease,sewing machine lubricating oil,gear grease,red rubber grease,lithium-based grease |
Cosmetics | eyeliner,lip balm,hair dressing cream,nail beauty products,mascara |
Customer Service:
Adhere to the business philosophy “Meticulously manufacture, different for you”, we clearly understand the needs of customers, establish supply chain system and appropriate procedures based on customer needs to maximize customer satisfaction .
For any quality problems, analysis the cause with high standards in order to establish a long-term mechanism; Each employee should understand how their daily work affects the quality level and customer satisfaction, continue to improve their own work for better service to our customers.
