Name: Industrial Paint Tubes Empty , Pigment / Glue Empty Aluminium Paint Tubes
Brand: Xinji
SKU: Dia 13.5mm - Dia 40mm
Rating: 5 (124 reviews)

Home Products Aluminum Paint Tubes

Industrial Paint Tubes Empty , Pigment / Glue Empty Aluminium Paint Tubes

Product Details:

Place of Origin:	China
Brand Name:	Xinji
Certification:	ISO, CFDA
Model Number:	Dia 13.5mm - Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity:	50000 pcs
Packaging Details:	Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 millions pcs per year

Contact Now

Detailed Product Description

Material:	99.7% Aluminum	Name:	Flexible Aluminum Tube For Pigment
Color:	Up To 6 Colors	Artwork:	Customized
Cap Type:	Screw Cap,flip Top Cap,customized Cap,etc	Factory Direct:	YES
Highlight:	empty paint tubes , empty oil paint tubes

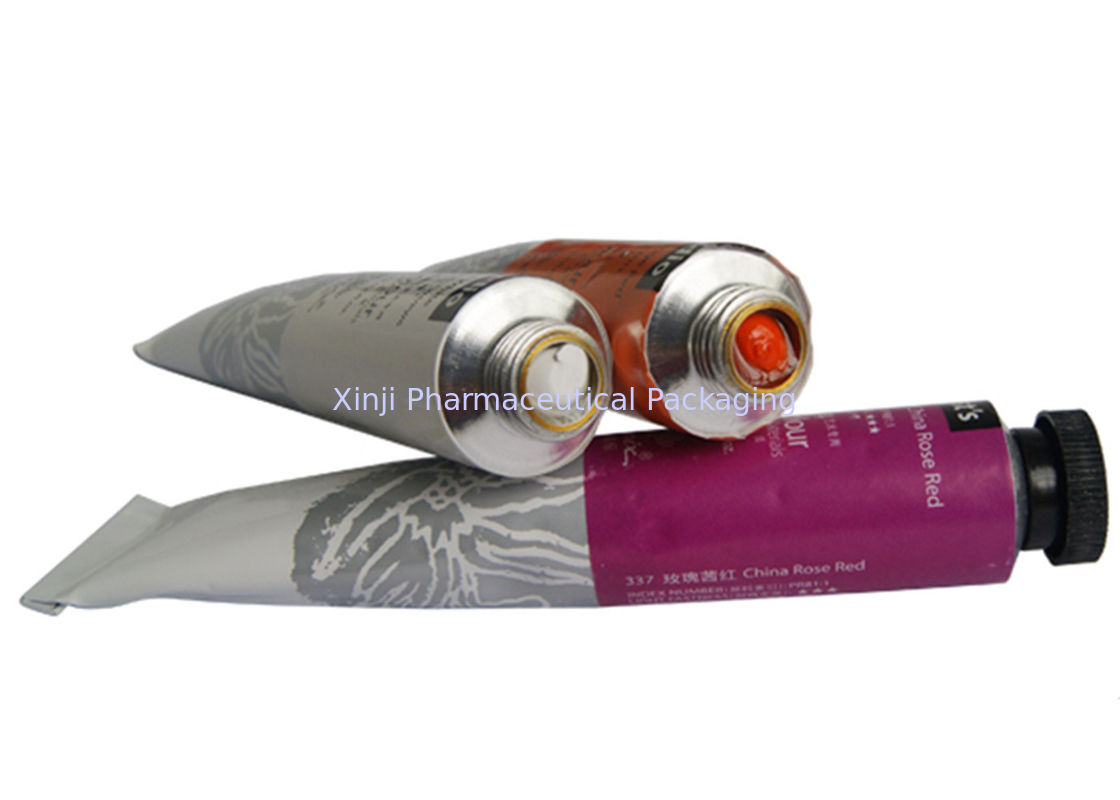

Industrial Flexible Packaging Aluminum Paint Tubes For Pigment , Glue

General Description

Diameter	13.5,16,19,22,25,28,30,32,35,38,40 mm
Volume	3ML-200ML
Length	Customized
Body	Custom printed
Cap	Customized or provided by us
Printing	offset printing
Brand	OEM ODM Customized
Payment&Shipping terms
MOQ	50000
Payment	T/T, L/C at sight;
Trade Term	FOB CIF CNF
Shipping Port	Wuhan or Other
Leading Time	15-30days upon production
Sample	Free (customer pay the courier fee)
Enquiry:	Please provide Spe. Print ,Qty for an accurate quote
Company Information
1. Nearly 40 years manufacturing experience
2. Professional Production line , QC staff to grantee the quality of products
3. Supplying tens of countries for over 120 distributors and Pharmaceutical factories
4. Production ability = 300million /Year
5. Trained sales staff: 24 hours quick response

Company Brief Introduction:

1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.

2. Established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.

3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.

4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Tube Wall Thickness		Shoulder Thickness
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Max	Min	Max	Min	Shoulder Angle Standard
mm	mm	mm	mm		mm	mm	mm	mm
10	±0.1	60	±0.5	60	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
13.5		75		60 or 70	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
16		100		80	0.12	0.08	0.65	0.35	120℃ or 126℃
19		110		95	0.13	0.1	0.65	0.35	120℃ or 126℃
22		130		95 or 115	0.14	0.1	0.65	0.35
25		150		95 or 115	0.14	0.1	0.7	0.4	No Standard
28		165	±1.0	115	0.15	0.11	0.75	0.45
30		165		115	0.16	0.11	0.75	0.45
32		170		115	0.16	0.11	0.75	0.45
35		185		115	0.16	0.11	0.75	0.45
38		185		115	0.16	0.11	0.75	0.45
40		200		115	0.16	0.11	0.75	0.45
45	±0.25	200		115 or 135	0.18	0.12	0.9	0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle

Our advantages:

Scales: Now we are the top 3 in China aluminum material manufacturing company.
Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
Technique: many researchers are invested in product study.
Production lines: Full automatic production lines from Germany and Italy.
