|Place of Origin:||China|
|Model Number:||Dia 13.5mm - 40mm|
|Minimum Order Quantity:||50000 pcs|
|Packaging Details:||Packed in strong carton,suitable for long distance ocean transportation.|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||300 millions pcs per year|
|Aluminum:||> 99.7% Purity||Name:||Gel Aluminum Tubes|
|Printing:||Up To 6 Colors||Volume:||3ml - 200ml|
|Usage:||For Ointment Cream Gel Packaging||Sample:||Free|
squeeze tubes for lotion,

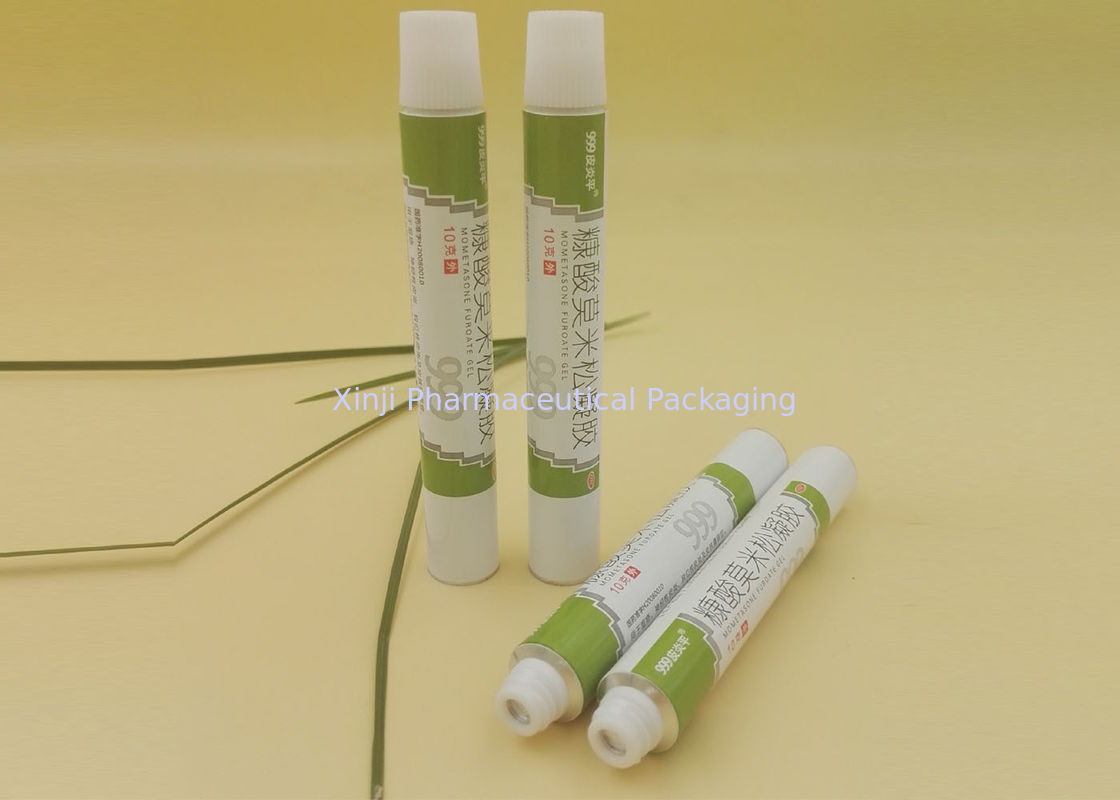

BS Standard 10g Aluminum Ointment Tubes , Cream Aluminum Tubes, Gel Aluminum Tubes
|Useage||Pharmaceutical, cosmetic, food, adhesive packaging, etc.|
|CAP||Colour-white/red/blue; Type-Conual Piercer; material-HPPE.|
|Aluminum Blamks||Aluminum＞99.7% pure.|
|Internal Lacquer||Type-Expoxy-Phenolic Resin.|
|External Base Coat||Type-Enamel;Colour-White.|
|Colour Ink||Suplier-Shanghai DIC.|
|Crimp sealant brand||PPG.|
|Manufacturing Environment||The construction of 100000-ton cleaning production packing workshop.|
|The standard of Inspection||BS2006-86 Aluminum collapsible tube for medicine ointment.|
|Closing||Under an air pressure of 0.2Mpa,no leakage|
|Appearance||Integrity and clean|
|Coating||The color matches the standard,no exposure and no tiny oil droplets|
|Color printing||Clear and entirety,the overprint is in position|
|Flexibility and adhesion||The lacquer did not split off and no crazing|
|Chemicals||Wipe 30 times with acetone,the lacquer did not split off|
|Package||Wholeness and clean|
Company Brief Introduction:
We are the 3rd largest manufacturer of aluminum collapsible tube industry. Our tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.
British Standard (BS2006-86):
|British Standard of Aluminum Collapsible Tube BS2006-1984|
|Sheet3 Size Standard|
|Tolerance of Diameter||
|Tolerance of Length||
|Tube Wall Thickness||Shoulder Thickness|
|Max||Min||Max||Min||Shoulder Angle Standard|
|60||0.11||0.07||0.5||0.3||90℃ or 120℃ or 126℃|
|13.5||75||60 or 70||0.11||0.07||0.5||0.3||90℃ or 120℃ or 126℃|
|16||100||80||0.12||0.08||0.65||0.35||120℃ or 126℃|
|19||110||95||0.13||0.1||0.65||0.35||120℃ or 126℃|
|22||130||95 or 115||0.14||0.1||0.65||0.35|
|25||150||95 or 115||0.14||0.1||0.7||0.4||No Standard|
|45||±0.25||200||115 or 135||0.18||0.12||0.9||0.5|
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.
Contact Person: Ms. Echo
