Name: Aluminum Collapsible Squeeze Tubes For Cosmetics Screw Cap Colorful Printing
Brand: Xinji
SKU: Dia 13.5mm-Dia 40mm

Home Products Metal Squeeze Tubes

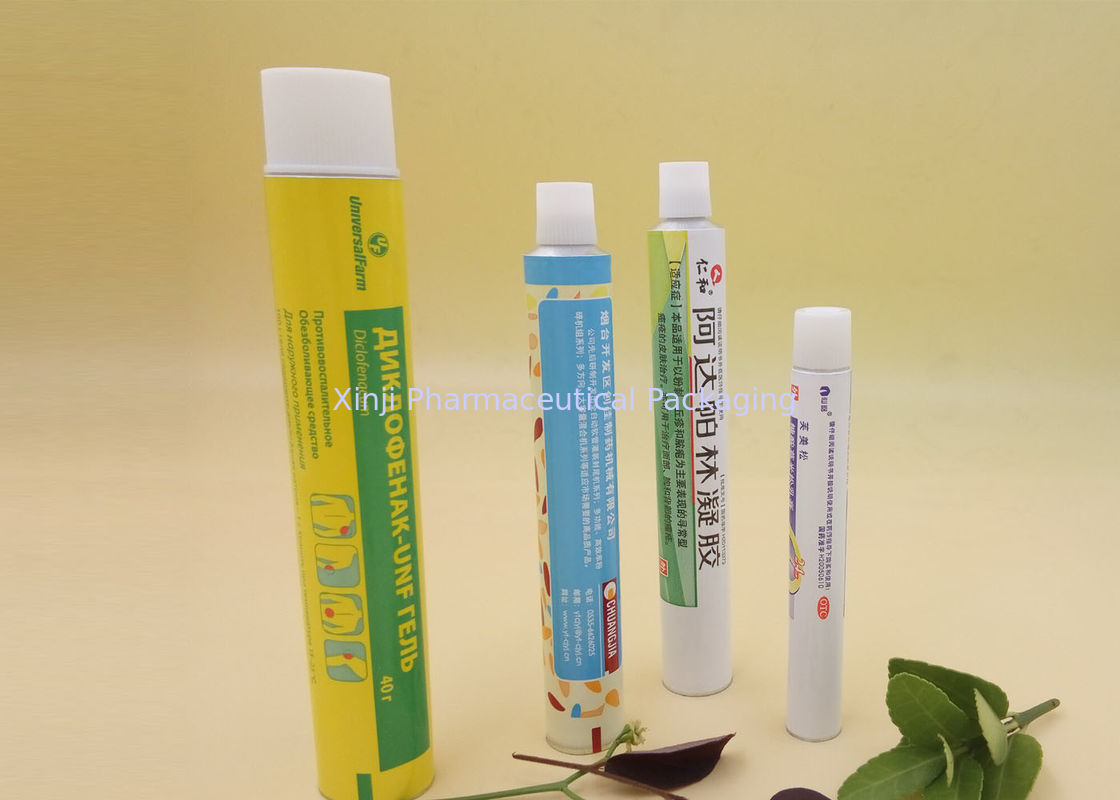

Aluminum Collapsible Squeeze Tubes For Cosmetics Screw Cap Colorful Printing

Product Details:

Place of Origin:	China
Brand Name:	Xinji
Certification:	ISO, CFDA
Model Number:	Dia 13.5mm-Dia 40mm

Payment & Shipping Terms:

Minimum Order Quantity:	50000 pcs
Packaging Details:	Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 millions pcs per year

Contact Now

Detailed Product Description

Material:	Aluminum	Usage:	Cosmetics, Medicine, Food, Etc.
Printing:	Customized	Product Name:	Skin Cream For Pharmaceutical
Place Of Origin:	China	Color Of Printing:	Not More Than 6 Colors
Sealing Type:	Screw Cap
High Light:	tube cosmetic packaging , blank toothpaste tube

Skin Cream For Pharmaceutical , Metal Squeeze Tubes Packaging

Advantages:

1. Top 3 manfuacturer of collapsible aluminum tubes in whole China, with annual capacity of 300 million pcs.
2. Full automatic production lines from Germany and Italy.

3. More than 40 years experience in packaging design, develop and manufacture.
4. Strong R&D team, customized-products are highly welcomed.
5. 100% QC inspection before delivery, high quality with very competitive price.
6. 90% of our products are exporting to oversea market, top service and timely delivery.
7. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
8. Factory direct sells, offering you the most competitive price!
9. Quick response on quotation, sample and after-service.

General Description
Useage	Pharmaceutical, cosmetic, food, adhesive packaging, etc.
CAP	Colour-white/red/blue; Type-Conual Piercer; material-HPPE.
Aluminum Blamks	Aluminum＞99.7% pure.
Internal Lacquer	Type-Expoxy-Phenolic Resin.
External Base Coat	Type-Enamel;Colour-White.
Colour Ink	Suplier-Shanghai DIC.
Crimp sealant brand	PPG.
Manufacturing Environment	The construction of 100000-ton cleaning production packing workshop.
The standard of Inspection	BS2006-86 Aluminum tube for medicine ointment.

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Tube Wall Thickness		Shoulder Thickness
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Max	Min	Max	Min	Shoulder Angle Standard
mm	mm	mm	mm		mm	mm	mm	mm
10	±0.1	60	±0.5	60	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
13.5		75		60 or 70	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
16		100		80	0.12	0.08	0.65	0.35	120℃ or 126℃
19		110		95	0.13	0.1	0.65	0.35	120℃ or 126℃
22		130		95 or 115	0.14	0.1	0.65	0.35
25		150		95 or 115	0.14	0.1	0.7	0.4	No Standard
28		165	±1.0	115	0.15	0.11	0.75	0.45
30		165		115	0.16	0.11	0.75	0.45
32		170		115	0.16	0.11	0.75	0.45
35		185		115	0.16	0.11	0.75	0.45
38		185		115	0.16	0.11	0.75	0.45
40		200		115	0.16	0.11	0.75	0.45
45	±0.25	200		115 or 135	0.18	0.12	0.9	0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle
